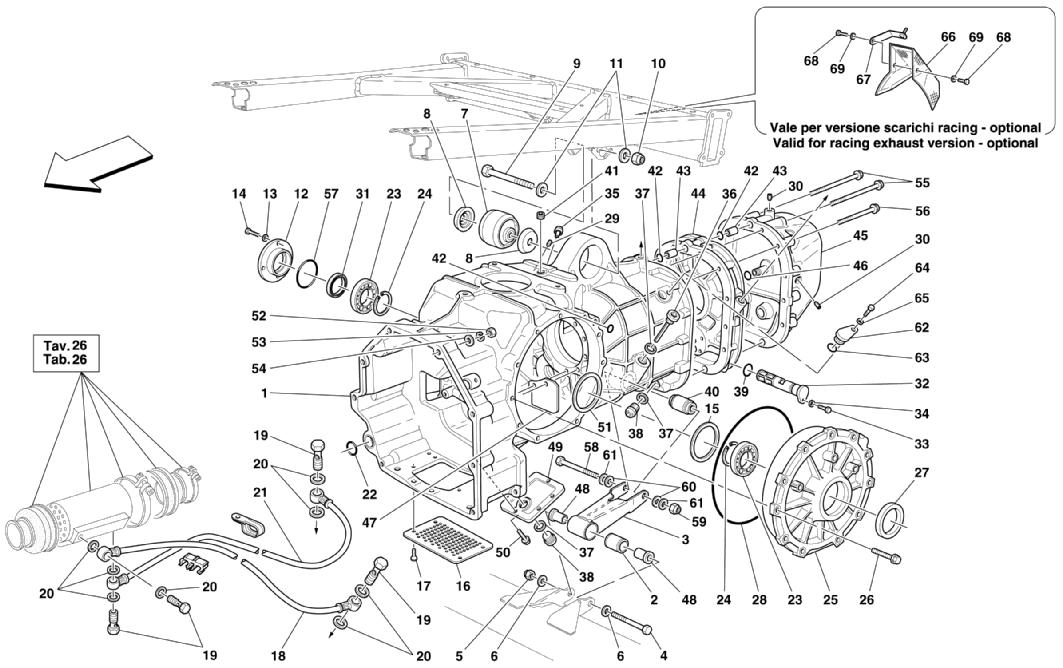

GEARBOX - COVERS

Location Part # Quantity* Description Price Add To Cart
- 186248 1 BOX TRANSMISSION -For cars from gearbox Nr. 459 to gearbox Nr. 1088 order also part. 181618 Q.1 $3,405.71
1 183340 1 COMPLETE TRANSMISSION -Valid for F1 Unavailable
1 183339 1 COMPLETE TRANSMISSION -Not for F1 Unavailable
2 181755 1 PAD $46.47
3 174458 1 SMALL LINK $366.39
4 15541234 1 SCREW $1.97
5 148020 1 NUT $5.93
6 14496724 2 WASHER Unavailable
7 186698 1 GEARBOX SUPPORT PAD -Valid from Ass. Nr. 40523 Superseded
8 188141 2 RETAINING WASHER -Valid from Ass. Nr. 40523 Unavailable
8 179559 2 RETAINING WASHER -Valid till Ass. Nr. 40522 Unavailable
9 11117134 1 SCREW $25.86
10 106004 1 NUT Unavailable
11 14496824 2 WASHER Unavailable
12 183981 1 R.H. FLANGE FOR SHAFT -Valid till gearbox Nr. 458 and from gearbox Nr. 1089 $50.00
13 11194377 4 WASHER -Valid till gearbox Nr. 458 and from gearbox Nr. 1089 Unavailable
14 10902224 4 SCREW -Valid till gearbox Nr. 458 and from gearbox Nr. 1089 $0.90
15 185026 1 RING -Thickness mm. 6,8 $60.88
15 185028 1 RING -Thickness mm. 6,0 -Possible fitting $71.54
15 185027 1 RING -Thickness mm. 6,4 -Possible fitting $71.54
16 171701 1 PROTECTION DRILLET PLATE $146.38
17 111189 4 SCREW $6.98
18 173686 1 OIL DELIVERY TUBE $317.41
19 184727 4 UNION $7.45
20 145192 8 GASKET Unavailable
21 173687 1 OIL RETURN TUBE $324.26
22 123236 1 O.R. GASKET $5.32
23 184995 2 BALL BEARING Unavailable
24 184994 2 FLEXIBLE RING -Q.ty 1 from gearbox Nr. 458 to gearbox Nr. 1088 $10.80
25 171117 1 DIFFERENTIAL COVER $1,879.48
26 16287321 11 SCREW Unavailable
27 181617 1 L.H. OIL RING $55.20
28 14468781 1 GASKET $45.65
29 14326050 1 THREADED PLUG $2.05
30 182106 2 THREADED PLUG $2.88
31 184006 1 R.H. OIL RING -Valid from gearbox Nr. 459 and till gearbox Nr. 1088 $60.37
31 181618 1 R.H. OIL RING -Valid till gearbox Nr. 458 and from gearbox Nr. 1089 $60.37
32 182100 1 GEAR BOX OIL FILTER $178.62
33 10977624 1 SCREW Unavailable
34 11199277 1 WASHER $3.98
35 182118 1 OIL VENT $14.15
36 182117 1 OIL LEVEL ROD $72.45
37 10263460 3 GASKET Superseded
38 183962 2 PLUG $48.70
39 182119 1 O.R. GASKET $3.19
40 183490 1 PAD Unavailable
41 14324911 1 PLUG $1.20
42 14456981 4 GASKET $1.22
43 150957 4 CENTERING BUSHING $11.41
44 173611 1 PLATE $1,330.60
45 173612 1 REAR COVER $1,533.89
46 137192 2 GASKET $0.90
47 183986 1 PLATE $4.28
48 183457 2 BUSHING $4.04
49 171045 1 LOWER COVER $145.50
50 16286121 6 SCREW $0.90
51 185034 1 RING -Thickness mm. 2,60 -Possible fitting $56.31
51 185033 1 RING -Thickness mm. 2,95 -Possible fitting $56.31
51 185029 1 RING -Thickness mm. 3,30 $56.31
52 133988 6 NUT Unavailable
53 127497 6 WASHER $0.90
54 14496624 6 WASHER $0.90
55 184008 2 SCREW -Not as spare part -Replaced by 16297424 Unavailable
55 16297424 2 SCREW $7.15
56 16288221 10 SCREW $3.33
57 14460981 1 O.R. GASKET $14.15
58 15213834 1 SCREW $1.97
59 104030 1 NUT $0.90
60 125322 2 WASHER Unavailable
61 14496524 4 WASHER $0.90
62 185721 1 PLUG -Not for F1 $7.29
63 14453481 1 O.R. GASKET -Not for F1 Unavailable
64 10902224 1 SCREW -Not for F1 $0.90
65 11194377 1 WASHER -Not for F1 Unavailable
66 67912300 1 ANTI-HEAT SHIELD -Valid for racing exhaust version -Optional $224.29
67 67912400 1 BRACKET FOR CABLES SUPPORT -Valid for racing exhaust version -Optional Unavailable
68 10977624 2 SCREW -Valid for racing exhaust version -Optional Unavailable
69 14446924 2 WASHER -Valid for racing exhaust version -Optional Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
