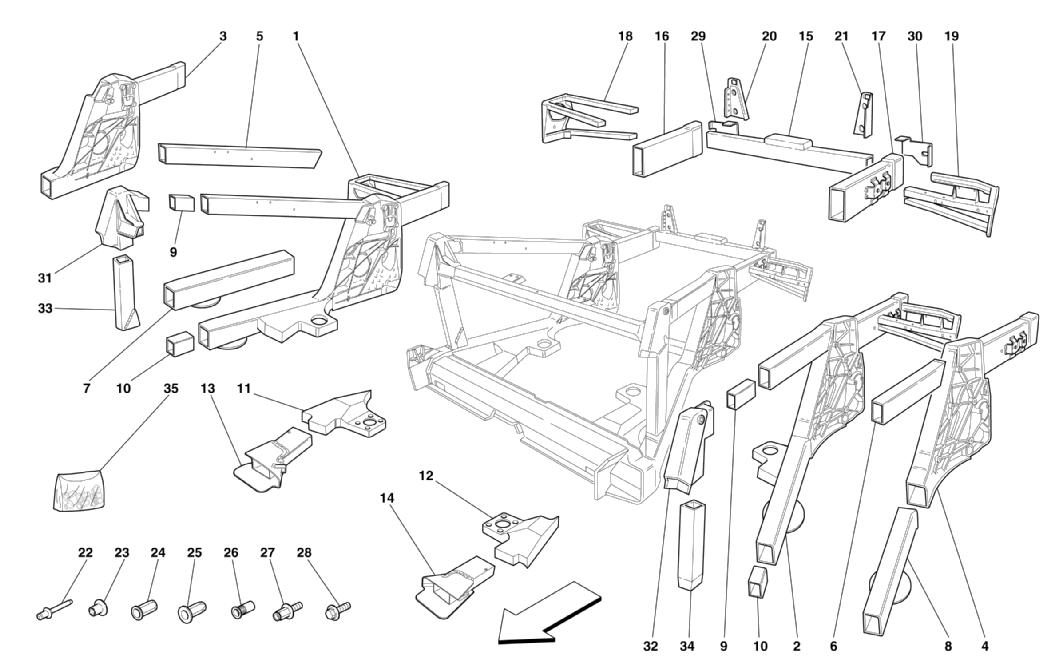

FRAME - REAR ELEMENTS SUB-GROUPS

Location Part # Quantity* Description Price Add To Cart
1 66214900 1 COMPLETE R.H. SIDE FRAME -Valid till car Nr. 120068 for LHD and 120193 for RHD $3,949.95
1 66453300 1 COMPLETE R.H. SIDE FRAME -Valid from car Nr. 120069 for LHD and 120194 for RHD $3,949.95
2 66453400 1 COMPLETE L.H. SIDE FRAME -Valid from car Nr. 120069 for LHD and 120194 for RHD $3,949.95
2 66290100 1 COMPLETE L.H. SIDE FRAME -Valid till car Nr. 120068 for LHD and 120193 for RHD $3,949.95
3 65941800 1 R.H. REAR LATERAL CASTING -Valid till car Nr. 120068 for LHD and 120193 for RHD $3,078.88
3 66453500 1 R.H. REAR LATERAL CASTING -Valid from car Nr. 120069 for LHD and 120194 for RHD $3,244.91
4 65941900 1 L.H. REAR LATERAL CASTING -Valid till car Nr. 120068 for LHD and 120193 for RHD $3,078.88
4 66453600 1 L.H. REAR LATERAL CASTING -Valid from car Nr. 120069 for LHD and 120194 for RHD $3,244.91
5 166227 1 R.H. UPPER FRAME $262.80
6 166127 1 L.H. UPPER FRAME $277.74
7 66465000 1 R.H. LOWER FRAME $489.53
7 166235 1 R.H. LOWER FRAME -Not as spare part -Replaced by 66465000 Unavailable
8 66465100 1 L.H. LOWER FRAME $514.04
8 166135 1 L.H. LOWER FRAME -Not as spare part -Replaced by 66465100 Unavailable
9 181980 0 CORE FOR REPAIR $319.08
10 181979 0 CORE FOR REPAIR $12.34
11 166237 1 R.H. BRACKET ENGINE SUPPORT -Not as spare part -Valid till car 120068 for LHD and 120193for RHD - Unavailable
11 195208 1 R.H. BRACKET ENGINE SUPPORT -Valid from car Nr. 120069 for LHD and 120194 for RHD -Valid from ca Unavailable
11 6187237 1 R.H. BRACKET ENGINE SUPPORT -Valid from car Nr. 120069 for LHD and 120194 for RHD -Valid till ca Unavailable
12 195207 1 L.H. BRACKET ENGINE SUPPORT -Valid from car Nr. 138028 Unavailable
12 6187137 1 L.H. BRACKET ENGINE SUPPORT -Valid from car Nr. 120069 for LHD and 120194 for RHD -Valid till ca $1,152.92
12 166137 1 L.H. BRACKET ENGINE SUPPORT -Not as spare part -Valid till car Nr. 120068 for LHD and 120193for G Unavailable
13 65942200 1 R.H. SUPPORT FOR BRACKET $1,375.69
14 65942300 1 L.H. SUPPORT FOR BRACKET Unavailable
15 183978 1 REAR BUMPER CROSS MEMBER $287.43
16 183834 1 R.H. REAR FRAME $549.24
17 183833 1 L.H. REAR FRAME $679.45
18 64810000 1 R.H. REAR FENDER FRAME $254.99
19 65995500 1 L.H. REAR FENDER FRAME Unavailable
20 65151611 1 R.H. SIDE BRACKET $228.74
20 65151600 1 R.H. SIDE BRACKET -Not as spare part -Replaced by 65151611 Unavailable
21 65151711 1 L.H. SIDE BRACKET $228.74
21 65151700 1 L.H. SIDE BRACKET -Not as spare part -Replaced by 65151711 Unavailable
22 66292200 0 STANDARD HEAD RIVET $1.46
22 66292300 0 HALF REPOTTED HEAD RIVET $2.23
23 65133800 0 RIVET L. 6,4 mm Unavailable
24 15180411 0 BLIND ESAGONAL RIVET $1.89
24 15624511 0 ESAGONAL RIVET M8 Superseded
24 15624211 0 ESAGONAL RIVET M4 $1.16
24 15624311 0 ESAGONAL RIVET M5 $5.36
24 15624411 0 ESAGONAL RIVET M6 $1.32
25 65151200 0 RIVET M6 Unavailable
26 65930400 0 RIVET M6 $1.16
26 179299 0 RIVET M10 BLIND $9.26
26 65319800 0 RIVET M8 BLIND Unavailable
26 65135000 0 RIVET M8 Unavailable
26 166101 0 RIVET M4 $1.71
27 65065400 0 STUD ESAGONAL HEAD M6 $3.88
28 13836971 0 SCREW Unavailable
29 166288 1 R.H. BRACKET $21.94
30 166188 1 L.H. BRACKET $21.94
31 6166261 1 R.H. UPPER FUSION REAR PILLAR $425.73
32 6166161 1 L.H. UPPER FUSION REAR PILLAR $425.73
33 66051200 1 COMPLETE R.H. REAR PANEL $238.20
34 66051100 1 COMPLETE L.H. REAR PANEL Unavailable
35 70000950 1 INSERTS KIT FOR REPAIR $1,707.49

* Quantity shown indicates the number of pieces used in the diagram.
