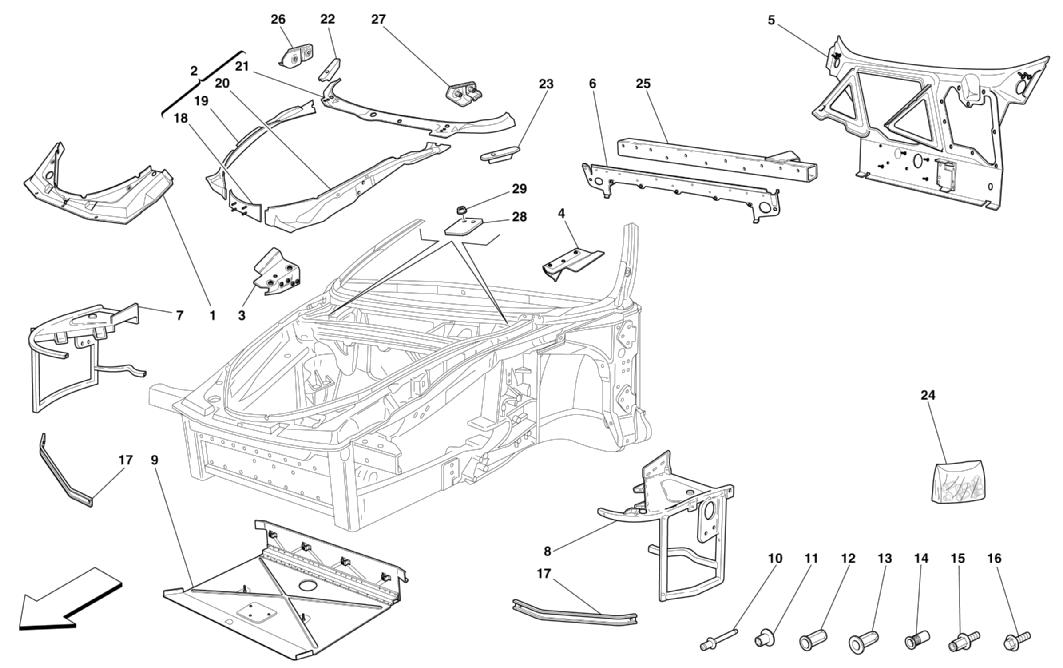

FRAME - COMPLETE FRONT PART STRUCTURES AND PLATES

Go to Split View

FRAME - COMPLETE FRONT PART STRUCTURES AND PLATES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65393600 *Qty: 1 COMPLETE FRONT CROSS MEMBER Unavailable
Location: 2 Prev | Next Part: 65393100 *Qty: 1 COMPLETE FRONT MOULDING -Not for USA and CDN from car 129895 -See Table 102 Pos. 1 Unavailable
Location: 2 Prev | Next Part: 67504611 *Qty: 1 COMPLETE FRONT MOULDING -Valid only for USA and CDN from car 129895 -See Table 102 Pos. 1 $5,169.70
Location: 3 Prev | Next Part: 65393800 *Qty: 1 R.H. PLATE FOR FRONT HOOD BONNET HINGE $122.77
Location: 3 Prev | Next Part: 65317211 *Qty: 1 R.H. PLATE FOR FRONT HOOD BONNET HINGE -Not as spare part -Replaced by 65393800 Unavailable
Location: 4 Prev | Next Part: 65393900 *Qty: 1 L.H. PLATE FOR FRONT HOOD BONNET HINGE $122.77
Location: 4 Prev | Next Part: 65317311 *Qty: 1 L.H. PLATE FOR FRONT HOOD BONNET HINGE -Not as spare part -Replaced by 65393900 Unavailable
Location: 5 Prev | Next Part: 175739 *Qty: 1 COMPLETE FRONT SHIELD -Not for RHD Unavailable
Location: 5 Prev | Next Part: 177721 *Qty: 1 COMPLETE FRONT SHIELD -Valid for RHD Unavailable
Location: 6 Prev | Next Part: 64855900 *Qty: 1 TRUNK COMPARTMENT UPPER REAR PANEL -Not as spare part -Replaced by 65152300 Unavailable
Location: 6 Prev | Next Part: 65152300 *Qty: 1 TRUNK COMPARTMENT UPPER REAR PANEL Unavailable
Location: 7 Prev | Next Part: 63266600 *Qty: 1 COMPLETE R.H. FRONT SIDE FRAME -Not as spare part replaced by 66202300 Unavailable
Location: 7 Prev | Next Part: 66202300 *Qty: 1 COMPLETE R.H. FRONT SIDE FRAME Unavailable
Location: 8 Prev | Next Part: 63266700 *Qty: 1 COMPLETE L.H. FRONT SIDE FRAME -Not as spare part replaced by 66202400 Unavailable
Location: 8 Prev | Next Part: 66202400 *Qty: 1 COMPLETE L.H. FRONT SIDE FRAME $796.85
Location: 9 Prev | Next Part: 65152500 *Qty: 1 COMPLETE COMPARTPMENT BOTTOM PLATE Unavailable
Location: 10 Prev | Next Part: 66292200 *Qty: 0 STANDARD HEAD POP RIVET $1.39
Location: 10 Prev | Next Part: 66292300 *Qty: 0 HALF REPOTTED HEAD POP RIVET $2.04
Location: 10 Prev | Next Part: 14642891 *Qty: 0 POP RIVET L. 14 mm $0.90
Location: 11 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 12 Prev | Next Part: 15624411 *Qty: 0 ESAGONAL RIVET M6 $0.90
Location: 12 Prev | Next Part: 15624311 *Qty: 0 ESAGONAL RIVET M5 $4.90
Location: 12 Prev | Next Part: 15624211 *Qty: 0 ESAGONAL RIVET M4 $1.07
Location: 12 Prev | Next Part: 15180411 *Qty: 0 BLIND ESAGONAL RIVET $0.90
Location: 12 Prev | Next Part: 15624511 *Qty: 0 ESAGONAL RIVET M8 $0.90
Location: 13 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $0.90
Location: 14 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND $0.90
Location: 14 Prev | Next Part: 179299 *Qty: 0 RIVET M10 BLIND $1.78
Location: 14 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 $1.31
Location: 14 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.57
Location: 14 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.07
Location: 15 Prev | Next Part: 65065400 *Qty: 0 STUD ESAGONAL HEAD M6 $3.53
Location: 16 Prev | Next Part: 13836971 *Qty: 0 SCREW $0.90
Location: 17 Prev | Next Part: 64874411 *Qty: 2 R.H. AND L.H. LOWER CARPET SHIELD $76.78
Location: 18 Prev | Next Part: 66219800 *Qty: 1 TRUNK COMPARTMENT UPPER MOULDING INSERT Unavailable
Location: 19 Prev | Next Part: 65751100 *Qty: 1 R.H. FENDER SUPPORT WALL Unavailable
Location: 20 Prev | Next Part: 65751200 *Qty: 1 L.H. FENDER SUPPORT WALL Unavailable
Location: 21 Prev | Next Part: 66120311 *Qty: 1 UINDER WINDSCREED FRAME Unavailable
Location: 22 Prev | Next Part: 65317400 *Qty: 1 R.H. BRACKET Unavailable
Location: 23 Prev | Next Part: 65317500 *Qty: 1 L.H. BRACKET Unavailable
Location: 24 Prev | Next Part: 70000950 *Qty: 1 INSERTS KIT FOR REPAIR $1,563.04
Location: 25 Prev | Next Part: 66846700 *Qty: 1 COMPLETE FRONT SUSPENSION UPPER CONNECTION CROSS MEMBER -Not for RHD $835.83
Location: 25 Prev | Next Part: 66845200 *Qty: 1 COMPLETE FRONT SUSPENSION UPPER CONNECTION CROSS MEMBER -Valid for RHD Unavailable
Location: 26 Prev | Next Part: 65709800 *Qty: 1 R.H. BRACKET FOR FIXED HINGE Unavailable
Location: 27 Prev | Next Part: 65709900 *Qty: 1 L.H. BRACKET FOR FIXED HINGE Unavailable
Location: 28 Prev | Next Part: 65548800 *Qty: 2 SEAL $2.85
Location: 29 Prev | Next Part: 65897200 *Qty: 4 NUT $0.97

* Quantity shown indicates the number of pieces used in the diagram.
