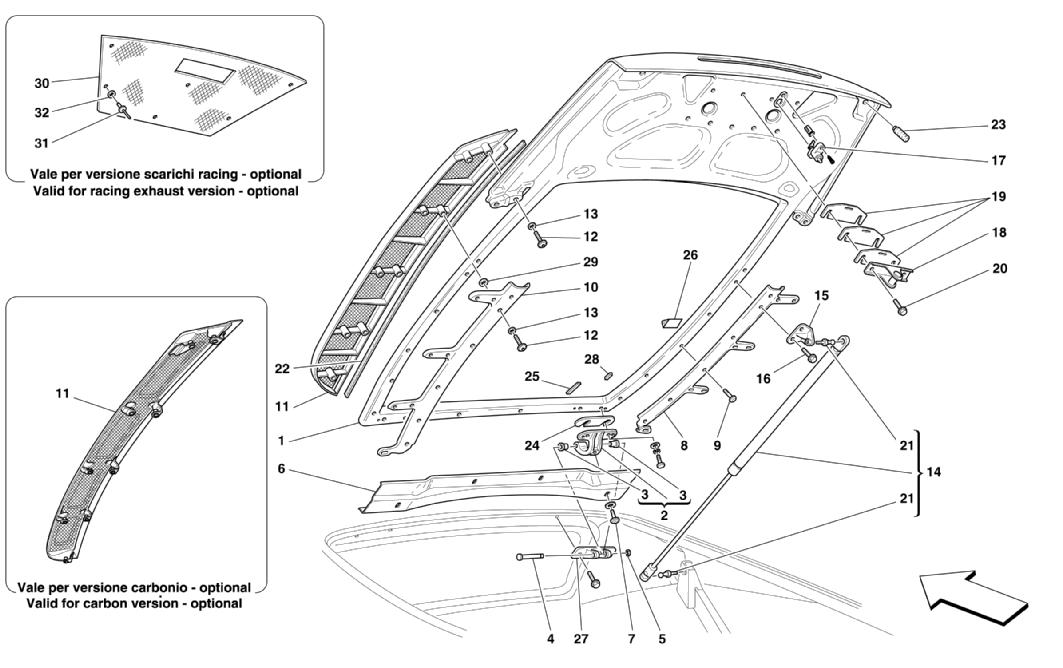

ENGINE BONNET

Go to Split View

ENGINE BONNET

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63268911 *Qty: 1 REAR HOOD BONNET Call
Location: 2 Prev | Next Part: 64877500 *Qty: 1 R.H. MOBILE HINGE $167.56
Location: 2 Prev | Next Part: 64877600 *Qty: 1 L.H. MOBILE HINGE $167.56
Location: 3 Prev | Next Part: 62825300 *Qty: 4 HINGE BUSHING $30.78
Location: 4 Prev | Next Part: 64807100 *Qty: 2 PIN $9.20
Location: 5 Prev | Next Part: 11087974 *Qty: 2 FLEXIBLE RING $0.90
Location: 6 Prev | Next Part: 65398800 *Qty: 1 FRONT HOOD CONTOUR $311.52
Location: 7 Prev | Next Part: 65864100 *Qty: 4 SCREW $1.61
Location: 8 Prev | Next Part: 65398911 *Qty: 1 R.H. PLATE $368.32
Location: 9 Prev | Next Part: 62940900 *Qty: 8 SCREW $1.57
Location: 10 Prev | Next Part: 65399011 *Qty: 1 L.H. PLATE $368.32
Location: 11 Prev | Next Part: 65307400 *Qty: 1 L.H. GRILL $103.27
Location: 11 Prev | Next Part: 65307300 *Qty: 1 R.H. GRILL $103.27
Location: 11 Prev | Next Part: 68269600 *Qty: 1 L.H. GRILL -Valid for carbon version -Optional $4,651.95
Location: 11 Prev | Next Part: 68269500 *Qty: 1 R.H. GRILL -Valid for carbon version -Optional $4,651.95
Location: 12 Prev | Next Part: 169815 *Qty: 18 SCREW $1.87
Location: 13 Prev | Next Part: 12638177 *Qty: 18 WASHER Superseded
Location: 14 Prev | Next Part: 65855000 *Qty: 2 GAS SPRING $31.70
Location: 15 Prev | Next Part: 65526300 *Qty: 2 BRACKET $37.96
Location: 16 Prev | Next Part: 16286124 *Qty: 4 SCREW $0.90
Location: 17 Prev | Next Part: 143331 *Qty: 1 ADDITIONAL STOP LIGHT MOBILE CONTACT $7.02
Location: 18 Prev | Next Part: 64867900 *Qty: 1 HOOD CLOSING STRIKER $118.65
Location: 19 Prev | Next Part: 65524800 *Qty: 4 ADJUSTING PLATE -Possible fitting $4.21
Location: 20 Prev | Next Part: 16286027 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 65939900 *Qty: 2 PIN $3.49
Location: 22 Prev | Next Part: 65979200 *Qty: 2 GASKET $21.65
Location: 23 Prev | Next Part: 62167600 *Qty: 2 SMALL BLOCK $4.84
Location: 24 Prev | Next Part: 66073100 *Qty: 6 THICKNESS $2.82
Location: 25 Prev | Next Part: 65714600 *Qty: 4 SPACER $1.90
Location: 26 Prev | Next Part: 65050600 *Qty: 2 SPACER $3.81
Location: 27 Prev | Next Part: 64806700 *Qty: 1 R.H. FIXED HINGE Call
Location: 27 Prev | Next Part: 64806800 *Qty: 1 L.H. FIXED HINGE Call
Location: 28 Prev | Next Part: 63023300 *Qty: 2 SPACER $0.90
Location: 29 Prev | Next Part: 12644478 *Qty: 18 WASHER -Possible fitting $0.90
Location: 30 Prev | Next Part: 68153200 *Qty: 1 INSULATION FOR ENGINE HOOD BONNET -Valid for racing exhaust version -Optional $239.88
Location: 31 Prev | Next Part: 14641495 *Qty: 6 RIVET -Valid for racing exhaust version -Optional Call
Location: 32 Prev | Next Part: 12637824 *Qty: 6 WASHER -Valid for racing exhaust version -Optional $0.90

* Quantity shown indicates the number of pieces used in the diagram.
