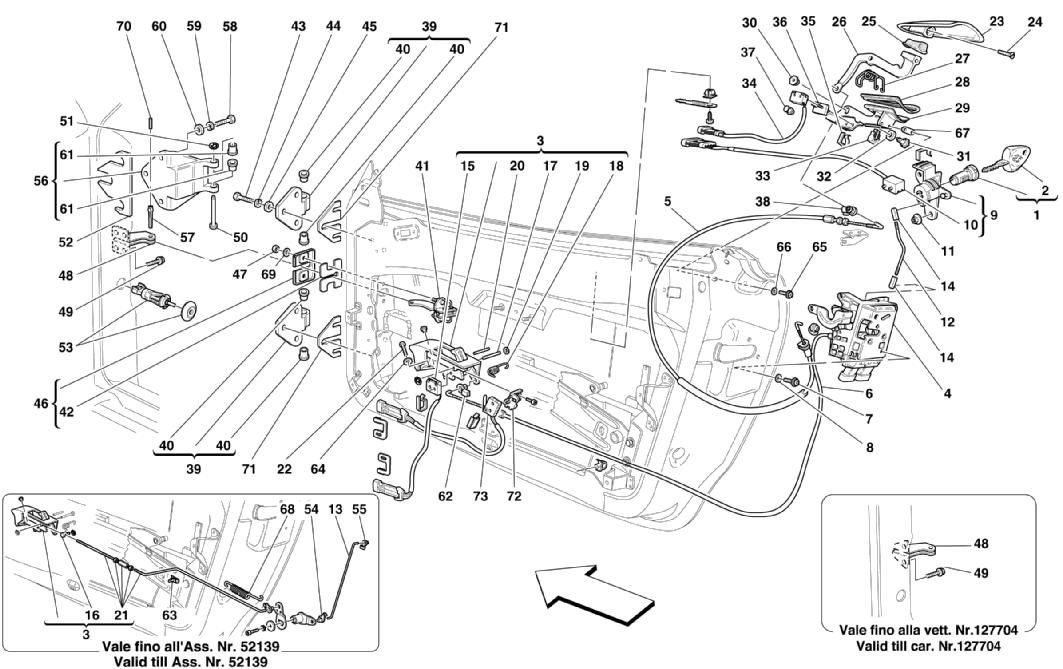

DOORS - OPENING CONTROL AND HINGES

Location Part # Quantity* Description Price Add To Cart
1 179567 1 LOCKS SET COMPLETED WITH STEERING LOCK AND KEY $1,018.02
2 181941 0 BLANK KEY -Valid till Ass. Nr. 42146 Unavailable
2 185451 0 BLANK KEY -Valid from Ass. Nr. 42147 Unavailable
3 66217400 1 L.H. INNER HANDLE FOR DOOR OPENING -Valid from Ass. Nr. 36782 -Valid till Ass. Nr.52139 Unavailable
3 68884500 1 R.H. INNER HANDLE FOR DOOR OPENING -Valid from Ass. Nr. 52140 $949.00
3 66217700 1 R.H. INNER HANDLE FOR DOOR OPENING -Valid from Ass. Nr. 36782 -Valid till Ass. Nr.52139 $816.93
3 67839100 1 L.H. INNER HANDLE FOR DOOR OPENING -Valid from Ass. Nr. 52140 Unavailable
4 68993100 1 RIGHT-HAND DOOR LOCK WITH EXTERNAL LOCKING, FOR LHD VEHICLES ONLY. $345.08
4 68993200 1 LEFT-HAND DOOR LOCK WITH EXTERNAL LOCKING, FOR LHD VEHICLES ONLY. $345.08
5 68602600 2 DOOR OPENING OUTER CABLE Unavailable
6 65069300 2 DOOR OPENING INNER CABLE Unavailable
7 66207700 6 SCREW Unavailable
8 65545900 6 WASHER $4.41
9 65839500 1 L.H. DOOR LOCK BLOCK $345.08
9 65839400 1 R.H. DOOR LOCK BLOCK $345.08
10 63859200 1 R.H. MICRO-SWITCH $310.57
10 63859300 1 L.H. MICRO-SWITCH Unavailable
11 13046011 4 NUT Unavailable
12 65836500 2 SAFETY TIE ROD $115.59
13 65302000 2 SAFETY TIE ROD -Valid till Ass. Nr.52139 $3.04
14 62794000 4 FLEXIBLE JOINT $81.18
15 171120 2 MICRO-SWITCH $172.53
16 63722800 2 COUPLING -Valid till Ass. Nr.52139 Unavailable
17 63723400 2 PIN Unavailable
18 63724600 1 R.H. SPRING $5.50
18 63724700 1 L.H. SPRING Unavailable
19 11087476 2 FLEXIBLE RING Unavailable
20 65582700 2 FLEXIBLE PIN Unavailable
21 65069000 2 COMPLETE TIE ROD -Valid till Ass. Nr.52139 Unavailable
22 65757200 2 SCREW -Not as spare part -Replaced by 13274177 + 12637878 Unavailable
22 13274177 2 SCREW Unavailable
23 63576110 1 L.H. OUTER DOOR HANDLE $241.55
23 63576010 1 R.H. OUTER DOOR HANDLE $241.55
24 13309277 2 SCREW Unavailable
25 64861100 1 R.H. INNER GASKET $21.09
25 64861200 1 L.H. INNER GASKET $21.09
26 64860600 2 LEVER $125.94
27 64860700 2 SPRING FOR HANDLE $29.31
28 64860900 1 R.H. HANDLE GASKET Unavailable
28 64861000 1 L.H. HANDLE GASKET Unavailable
29 64860510 1 L.H. HANDLE SEAT $105.24
29 64860410 1 R.H. HANDLE SEAT $105.24
30 65398700 2 BUSHING $58.65
31 64860800 2 PIN $172.08
32 65520700 4 WASHER Unavailable
33 65398600 2 GUIDE $24.14
34 178187 2 MICRO-SWITCH $86.25
35 63179900 2 FIXING CLIP $5.62
36 65806300 2 PLATE $63.05
37 63853400 2 RUBBER PAD $5.16
38 14578283 2 CLIP Unavailable
39 64803300 4 MOBILE HINGE $276.06
40 62825300 8 BUSHING $39.67
41 65195200 2 TIE ROD Unavailable
42 63892300 2 GASKET $5.16
43 16043934 12 SCREW $0.90
44 10571779 12 WASHER Unavailable
45 14496578 12 WASHER Superseded
46 63895300 1 L.H. PLATE Unavailable
46 63895200 1 R.H. PLATE $32.76
47 102741 4 NUT $0.90
48 67111800 2 BRACKET -Valid from car Nr. 127705 $293.31
48 64810200 2 BRACKET -Valid till car Nr. 127704 $189.78
49 13836971 4 SCREW -Valid till car Nr. 127704 Unavailable
49 18770124 8 SCREW -Valid from car Nr. 127705 Unavailable
50 64803400 4 PIN $77.63
51 11087974 4 FLEXIBLE RING $0.90
52 65713400 4 THICKNESS Unavailable
53 179697 2 PILLAR SWITCH Unavailable
54 14578283 2 CLIP Unavailable
55 66308300 2 CLIP Unavailable
56 64803200 4 FIXED HINGE $165.63
57 66842800 2 PIN $4.30
58 16043534 12 SCREW -Valid from car Nr. 127705 Unavailable
58 16043934 12 SCREW -Valid till car Nr. 127704 $0.90
59 10571779 12 WASHER Unavailable
60 13550405 12 WASHER Unavailable
60 14496578 12 WASHER -Not as spare part -Replaced by 13550405 Superseded
61 62825300 8 BUSHING $39.67
62 65700900 2 FIXING CLIP $1.04
63 14573280 2 FLEXIBLE CLIP Unavailable
64 12637878 2 WASHER Unavailable
65 169814 2 SCREW $1.81
66 166467 2 WASHER Unavailable
67 65547500 6 SPACER $2.11
68 64074200 2 RETUTN SPRING FOR TIE ROD -Valid till Ass. Nr.52139 Unavailable
69 12644424 4 WASHER Unavailable
70 14163874 2 FLEXIBLE PIN $1.20
71 65998600 4 THICKNESS $7.23
72 67903900 1 L.H. MICRO SUPPORT BRACKET -Valid from Ass. Nr.52140 Unavailable
72 67904000 1 R.H. MICRO SUPPORT BRACKET -Valid from Ass. Nr.52140 Unavailable
73 212584 2 MICRO-SWITCH FOR LOCKING DOORS -Valid from Ass. Nr.52140 $127.67

* Quantity shown indicates the number of pieces used in the diagram.
