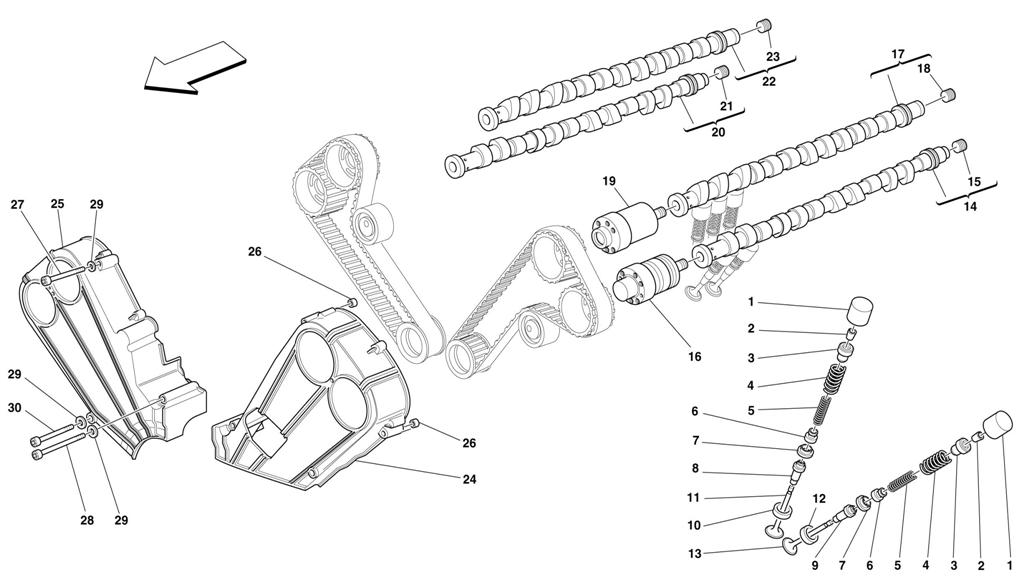

TIMING - TAPPETS AND SHIELDS

Go to Split View

TIMING - TAPPETS AND SHIELDS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 195017 *Qty: 40 TAPPET FOR VALVE CONTROL Call
Location: 2 Prev | Next Part: 157986 *Qty: 80 COTTER FOR VALVE SPRING $2.40
Location: 3 Prev | Next Part: 157989 *Qty: 40 UPPER CUP $7.45
Location: 4 Prev | Next Part: 180192 *Qty: 40 OUTER SPRING FOR VALVE RETURN $7.57
Location: 5 Prev | Next Part: 180208 *Qty: 40 INNER SPRING FOR VALVE RETURN $5.09
Location: 6 Prev | Next Part: 148153R *Qty: 40 OIL RING Call
Location: 7 Prev | Next Part: 180360 *Qty: 40 LOWER CUP -OVERSIZED $7.26
Location: 7 Prev | Next Part: 172466 *Qty: 40 LOWER CUP $41.81
Location: 8 Prev | Next Part: 176437R *Qty: 24 INTAKE VALVE GUIDE Call
Location: 8 Prev | Next Part: 172452 *Qty: 24 INTAKE VALVE GUIDE -OVERSIZED $32.07
Location: 9 Prev | Next Part: 176438R *Qty: 16 EXHAUST VALVE GUIDE Call
Location: 9 Prev | Next Part: 172453 *Qty: 16 EXHAUST VALVE GUIDE -OVERSIZED Call
Location: 10 Prev | Next Part: 6179281 *Qty: 24 INTAKE VALVE SEAT $241.10
Location: 11 Prev | Next Part: 175157 *Qty: 24 INTAKE VALVE $155.15
Location: 12 Prev | Next Part: 6173433 *Qty: 16 EXHAUST VALVE SEAT $19.69
Location: 13 Prev | Next Part: 157988R *Qty: 16 EXHAUST VALVE Call
Location: 14 Prev | Next Part: 206081 *Qty: 1 COMPLETE L.H. EXHAUST CAM SHAFT $9,887.01
Location: 15 Prev | Next Part: 10269550 *Qty: 1 THREADED PLUG $0.90
Location: 16 Prev | Next Part: 190042 *Qty: 2 EXHAUST PHASE VARIATOR $250.63
Location: 17 Prev | Next Part: 206080 *Qty: 1 COMPLETE L.H. INDUCTION DISTRIBUTION CAM SHAFT $1,038.57
Location: 18 Prev | Next Part: 10269550 *Qty: 1 THREADED PLUG $0.90
Location: 19 Prev | Next Part: 176101 *Qty: 2 BUSHING $126.13
Location: 20 Prev | Next Part: 206079 *Qty: 1 COMPLETE R.H. EXHAUST CAM SHAFT Call
Location: 21 Prev | Next Part: 10269550 *Qty: 1 THREADED PLUG $0.90
Location: 22 Prev | Next Part: 206078 *Qty: 1 COMPLETE R.H. INDUCTION DISTRIBUTION CAM SHAFT $1,038.57
Location: 23 Prev | Next Part: 10269550 *Qty: 1 THREADED PLUG $0.90
Location: 24 Prev | Next Part: 180305 *Qty: 1 L.H. COVER $121.85
Location: 25 Prev | Next Part: 169736 *Qty: 1 R.H. COVER $121.85
Location: 26 Prev | Next Part: 104339 *Qty: 2 SPACER $4.92
Location: 27 Prev | Next Part: 167266 *Qty: 4 SCREW $1.26
Location: 28 Prev | Next Part: 156839 *Qty: 2 SCREW $14.14
Location: 29 Prev | Next Part: 12604274 *Qty: 8 WASHER $0.90
Location: 30 Prev | Next Part: 156829 *Qty: 2 SCREW $1.26

* Quantity shown indicates the number of pieces used in the diagram.
