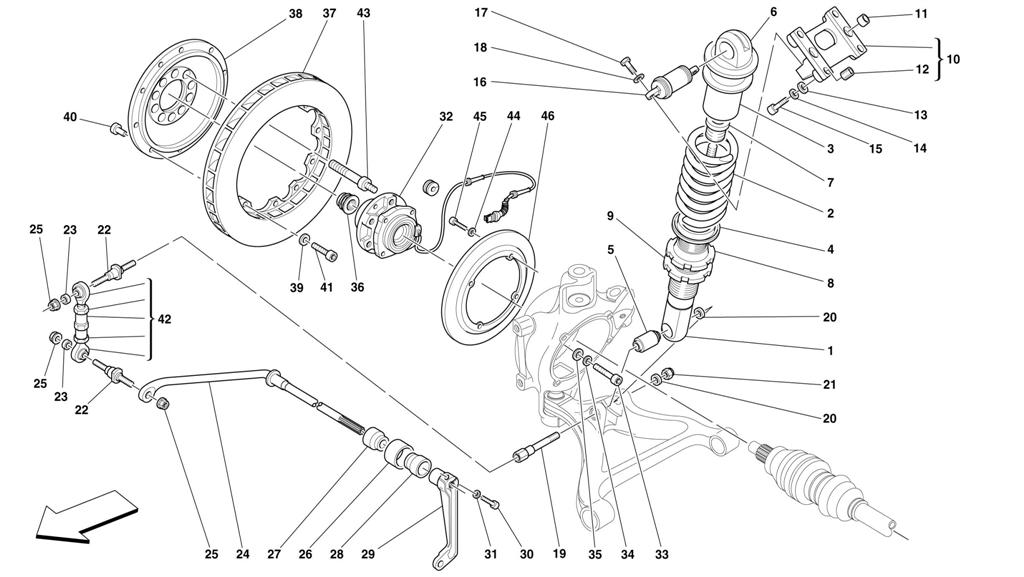

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Location Part # Quantity* Description Price Add To Cart
1 181402 2 REAR SHOCK ABSORBER $1,279.00
2 181421 2 SPRING 0,0424 mm/Kg -As an alternative $172.53
2 181422 2 SPRING 0,0344 mm/Kg $163.90
3 181409 2 UPPER SPACER $60.37
4 181408 2 LOWER SPACER $56.92
5 157630 2 SHOCK ABSORBER BUSHING $127.67
6 174727 2 SPRING RETAINING UPPER SPACER $285.24
7 181404 2 SHOCK ABSORBER PAD $51.85
8 181410 2 SPACER $81.08
9 181412 2 RING NUT $36.52
10 176625 2 SHOCK ABSORBER CONNECTION SUPPORT $276.06
11 100013 4 CENTERING DOWEL $3.19
12 13526170 4 THREADED INSERT $6.52
13 14496524 8 WASHER $0.90
14 127496 8 WASHER $0.90
15 14306774 8 SCREW Unavailable
16 181346 2 FLANBLOC Unavailable
17 11306934 4 SCREW Unavailable
18 160092 4 WASHER Unavailable
19 177664 2 SCREW Unavailable
20 129225 4 WASHER $2.27
21 148020 2 NUT $5.93
22 182508 4 PIN $12.24
23 160092 4 WASHER Unavailable
24 179778 1 REAR ANTI-ROLL BAR $1,756.54
25 133216 6 NUT $12.63
26 181465 2 BUSHING -Outside diameter 50 mm -0,1 -0,2 -Red paint $11.23
26 184354 2 BUSHING -Outside diameter 50,2 mm -0 -0,1 -Green paint $18.96
26 182510 2 BUSHING -Outside diameter 50 mm -0,35 -0,45 -Neutral paint $65.55
27 182511 1 BAR BUFFER $12.59
28 182512 1 PAD $22.41
29 175861 1 L.H. ARM $310.57
30 170950 1 SCREW $4.24
31 12601474 1 WASHER Unavailable
32 179070 2 HUB COMPLETE BEARING $1,120.54
33 180591 8 SCREW $17.70
34 160092 8 WASHER Unavailable
35 10732414 8 WASHER $10.50
36 167259 2 NUT Superseded
37 182943 1 R.H. REAR BRAKE DISC Unavailable
37 182949 1 L.H. REAR BRAKE DISC $909.42
38 183251 2 FIXING DISC CLUTCH $1,432.14
39 183241 20 WASHER $3.02
40 183253 20 BUSHING $48.29
41 183252 20 SCREW $10.64
42 169088 2 COMPLETE SMALL LINK $258.80
43 178043 10 STUD $22.19
44 12601174 8 WASHER $0.90
45 14304021 8 SCREW $0.90
46 181447 2 RING FOR DISC COOLING $241.55

* Quantity shown indicates the number of pieces used in the diagram.
