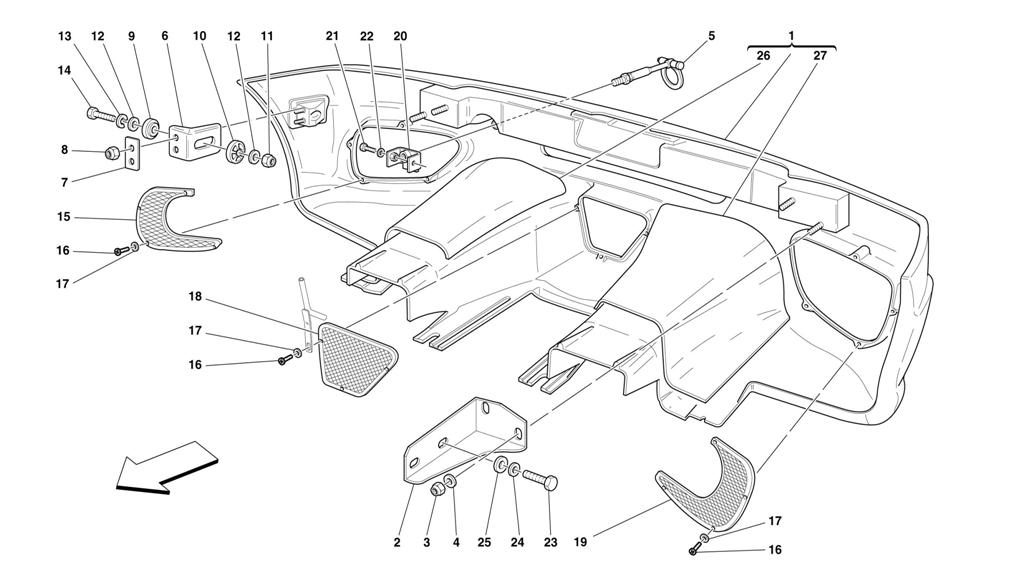

REAR BUMPER
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| 1 | 65251710 | 1 | COMPLETE REAR BUMPER | Unavailable | |
| 2 | 65306500 | 1 | R.H. CENTRAL BRACKET | $74.18 | |
| 2 | 65306600 | 1 | L.H. CENTRAL BRACKET | $79.35 | |
| 3 | 12574521 | 4 | NUT | $1.22 | |
| 4 | 12646801 | 8 | WASHER | Unavailable | |
| 5 | 181454 | 1 | TOW HOOK | $467.61 | |
| 6 | 62973000 | 2 | SIDE BRACKET | $34.49 | |
| 7 | 62126600 | 2 | PLATE | $12.81 | |
| 8 | 104030 | 4 | NUT | $0.90 | |
| 9 | 62128200 | 2 | EXTERNAL SMALL BLOCK | $2.58 | |
| 10 | 62128300 | 2 | INTERNAL SMALL BLOCK | $1.52 | |
| 11 | 12574521 | 2 | NUT | $1.22 | |
| 12 | 12646801 | 4 | WASHER | Unavailable | |
| 13 | 127497 | 2 | WASHER | $0.90 | |
| 14 | 11307021 | 2 | SCREW | $8.51 | |
| 15 | 65006300 | 1 | R.H. GRILL | $552.14 | |
| 16 | 13272011 | 11 | SCREW | $0.90 | |
| 17 | 14496204 | 11 | WASHER | Unavailable | |
| 18 | 65006200 | 1 | CENTER GRILLE | $470.94 | |
| 19 | 65006400 | 1 | L.H. GRILL | $552.14 | |
| 20 | 181441 | 1 | TOW HOOK BRACKET | $142.39 | |
| 21 | 16043221 | 2 | SCREW | Unavailable | |
| 22 | 14496524 | 2 | WASHER | $0.90 | |
| 23 | 16239921 | 4 | SCREW | $5.01 | |
| 24 | 11190779 | 4 | WASHER | Unavailable | |
| 25 | 12646901 | 4 | WASHER | Superseded | |
| 26 | 65989900 | 1 | R.H. INSULATION | $223.49 | |
| 27 | 65990000 | 1 | L.H. INSULATION | $276.06 |
* Quantity shown indicates the number of pieces used in the diagram.
