FRONT PASSENGERS COMPARTMENT CONTROL STATIONS

Go to Split View

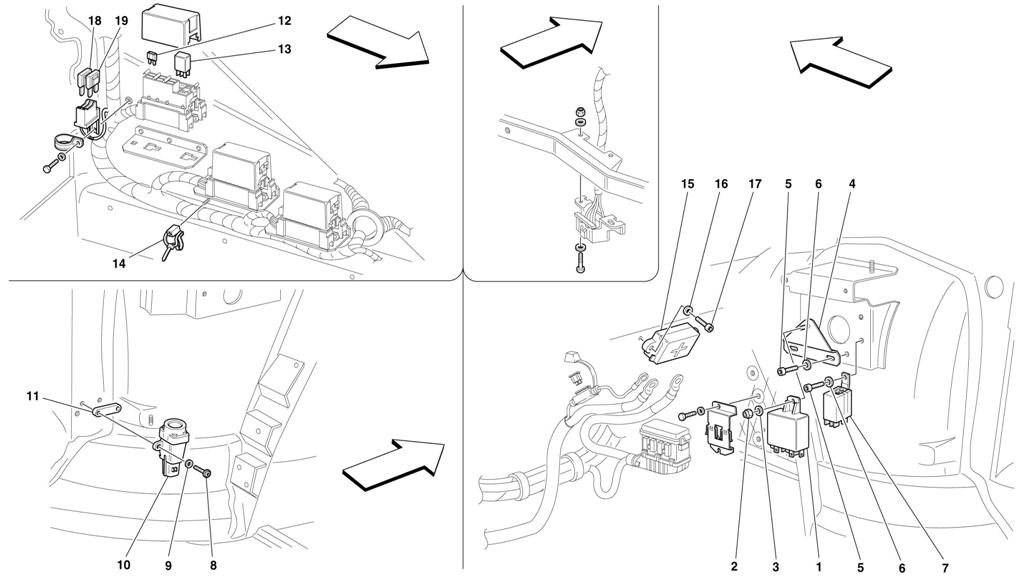

FRONT PASSENGERS COMPARTMENT CONTROL STATIONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 180199 *Qty: 1 WINDSHIELD WIPER INTERMITTER $133.51
Location: 2 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 3 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 4 Prev | Next Part: 181583 *Qty: 1 BRACKET FOR INTERMITTER FIXING $5.59
Location: 5 Prev | Next Part: 14304324 *Qty: 2 SCREW $1.20
Location: 6 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 171798 *Qty: 1 DIRECTION-EMERGENCY LIGHT RELAY $185.34
Location: 8 Prev | Next Part: 10977824 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 163675 *Qty: 1 INERTIAL SWITCH $24.52
Location: 11 Prev | Next Part: 65549800 *Qty: 1 SPACER $2.38
Location: 12 Prev | Next Part: 172878 *Qty: 6 FUSE 15 A. $7.26
Location: 12 Prev | Next Part: 172880 *Qty: 1 FUSE 25 A. $8.56
Location: 12 Prev | Next Part: 172881 *Qty: 2 FUSE 30 A. $10.46
Location: 12 Prev | Next Part: 172875 *Qty: 4 FUSE 5 A. $10.30
Location: 12 Prev | Next Part: 172876 *Qty: 4 FUSE 7,5 A. $8.56
Location: 13 Prev | Next Part: 172882 *Qty: 2 MICRO-RELAY 30 A. $29.64
Location: 13 Prev | Next Part: 161590 *Qty: 7 MICRO-RELAY 20 A. $22.22
Location: 14 Prev | Next Part: 177553 *Qty: 1 CLAMP $0.90
Location: 15 Prev | Next Part: 170114 *Qty: 1 TERMINAL BOX $48.31
Location: 16 Prev | Next Part: 14496324 *Qty: 2 WASHER $3.52
Location: 17 Prev | Next Part: 14304321 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 166835 *Qty: 1 FUSE 40 A. $9.11
Location: 19 Prev | Next Part: 172881 *Qty: 1 FUSE 30 A. $10.46

* Quantity shown indicates the number of pieces used in the diagram.
