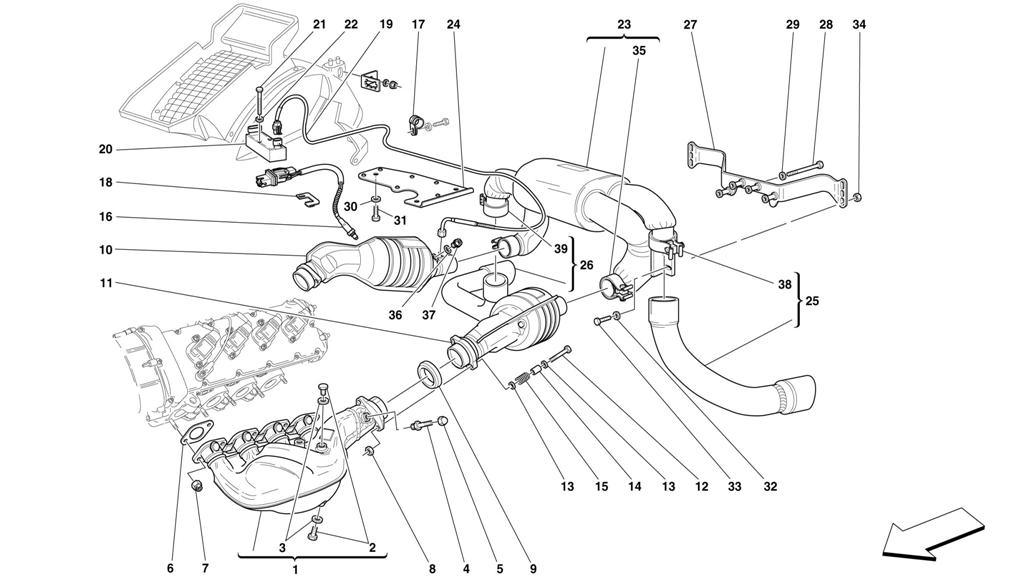

EXHAUST SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 178437 1 L.H. EXHAUST MANIFOLD $4,432.79
1 178438 1 R.H. EXHAUST MANIFOLD $4,432.79
2 110860 8 THREADED PLUG $19.77
3 10298460 8 GASKET $0.90
4 144240 2 THREADED UNION $51.74
5 150595 2 CAP NUT $1.16
6 151064 8 GASKET $7.94
7 138392 16 NUT $1.50
8 114748 4 NUT $21.29
9 159914 2 GASKET $25.96
10 174211 1 R.H. CATALYST -Valid for catalyzed cars $3,495.84
10 180082 1 R.H. CATALYST -Valid for not catalyzed cars $2,948.86
11 174210 1 L.H. CATALYST -Valid for catalyzed cars $3,495.84
11 180083 1 L.H. CATALYST -Valid for not catalyzed cars $2,948.86
12 16044834 4 SCREW $0.90
13 12646778 8 WASHER Unavailable
14 114749 4 SPACER $5.16
15 111743 4 SPRING $16.46
16 182837 2 FRONT LAMBDA FEELER $324.80
17 10441390 4 BRACKET WITH SHEATH Unavailable
18 175856 2 CONNECTOR FIXING BRACKET Unavailable
19 168824 2 THERMOCOUPLE Superseded
20 179278 2 CATALYST TEMPERATURE CONTROL STATION $621.16
21 15210824 4 SCREW Unavailable
22 10519224 4 WASHER $0.90
23 222958 1 COMPLETE EXHAUST SILENCER Unavailable
24 196339 1 R.H. SHIELD $448.61
25 183412 1 COMPLETE L.H. OUTLET PIPE $1,096.18
26 183411 1 COMPLETE R.H. OUTLET PIPE $1,096.18
27 182937 1 SILENCER SUPPORT EXHAUST SIDE $1,908.18
28 16045624 4 SCREW $1.14
29 10519624 4 WASHER Unavailable
30 12643724 3 WASHER Superseded
31 10902424 3 SCREW Unavailable
32 12646778 4 WASHER Unavailable
33 16043434 4 SCREW Unavailable
34 114748 4 NUT $21.29
35 185307 2 CLAMP $41.09
36 183003 2 WASHER $1.50
37 182998 2 THREADED PLUG $120.66
38 185307 1 SCREW COLLAR $41.09
39 185307 1 SCREW COLLAR $41.09

* Quantity shown indicates the number of pieces used in the diagram.
