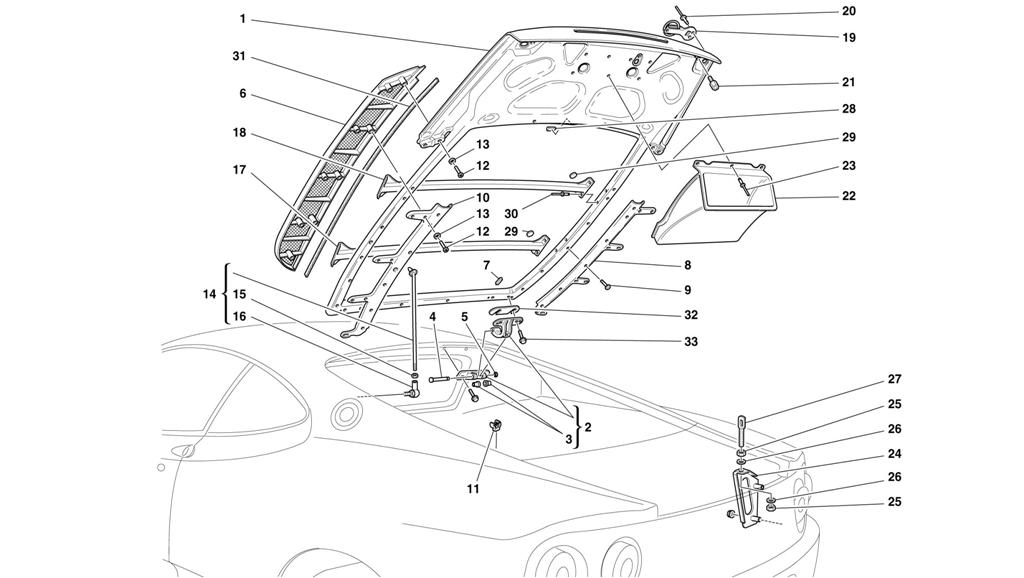

ENGINE BONNET

Go to Split View

ENGINE BONNET

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63268911 *Qty: 1 REAR HOOD BONNET Unavailable
Location: 2 Prev | Next Part: 64877500 *Qty: 1 R.H. MOBILE HINGE $170.91
Location: 2 Prev | Next Part: 64877600 *Qty: 1 L.H. MOBILE HINGE $170.91
Location: 3 Prev | Next Part: 62825300 *Qty: 4 HINGE BUSHING $31.40
Location: 4 Prev | Next Part: 64807100 *Qty: 2 PIN $9.39
Location: 5 Prev | Next Part: 11087974 *Qty: 2 FLEXIBLE RING $0.90
Location: 6 Prev | Next Part: 65307300 *Qty: 1 R.H. GRILL $320.61
Location: 6 Prev | Next Part: 65307400 *Qty: 1 L.H. GRILL $320.61
Location: 7 Prev | Next Part: 63023300 *Qty: 2 SPACER Unavailable
Location: 8 Prev | Next Part: 65398911 *Qty: 1 R.H. PLATE $368.32
Location: 9 Prev | Next Part: 62940900 *Qty: 8 SCREW $1.60
Location: 10 Prev | Next Part: 65399011 *Qty: 1 L.H. PLATE $368.32
Location: 11 Prev | Next Part: 14574287 *Qty: 1 ROD SPRING $14.36
Location: 12 Prev | Next Part: 65864100 *Qty: 18 SCREW $1.64
Location: 13 Prev | Next Part: 12644478 *Qty: 18 WASHER Unavailable
Location: 14 Prev | Next Part: 66142300 *Qty: 1 HOOD SUPPORT ROD Unavailable
Location: 15 Prev | Next Part: 16102314 *Qty: 1 NUT Unavailable
Location: 16 Prev | Next Part: 62481000 *Qty: 1 BALL JOINT Unavailable
Location: 17 Prev | Next Part: 65980600 *Qty: 1 FRONT FRAME $1,233.54
Location: 18 Prev | Next Part: 65981300 *Qty: 1 REAR FRAME $1,233.54
Location: 19 Prev | Next Part: 66128400 *Qty: 2 HOOK $68.35
Location: 20 Prev | Next Part: 14641592 *Qty: 6 RIVET Unavailable
Location: 21 Prev | Next Part: 62167600 *Qty: 2 SMALL BLOCK $4.93
Location: 22 Prev | Next Part: 65985200 *Qty: 1 AIR CONVEYOR $1,179.55
Location: 23 Prev | Next Part: 14641394 *Qty: 4 RIVET Unavailable
Location: 24 Prev | Next Part: 65984300 *Qty: 1 R.H. SUPPORT $152.53
Location: 24 Prev | Next Part: 65984400 *Qty: 1 L.H. SUPPORT $152.53
Location: 25 Prev | Next Part: 66149900 *Qty: 4 NUT $7.45
Location: 26 Prev | Next Part: 66150000 *Qty: 4 WASHER $2.74
Location: 27 Prev | Next Part: 66150100 *Qty: 2 PIN $15.31
Location: 28 Prev | Next Part: 65714600 *Qty: 4 SPACER Unavailable
Location: 29 Prev | Next Part: 66141800 *Qty: 6 RUBBER $1.40
Location: 30 Prev | Next Part: 14641592 *Qty: 8 RIVET Unavailable
Location: 31 Prev | Next Part: 65979200 *Qty: 2 GASKET Unavailable
Location: 32 Prev | Next Part: 66073100 *Qty: 2 THICKNESS $2.88
Location: 33 Prev | Next Part: 16287124 *Qty: 4 SCREW $1.29

* Quantity shown indicates the number of pieces used in the diagram.
