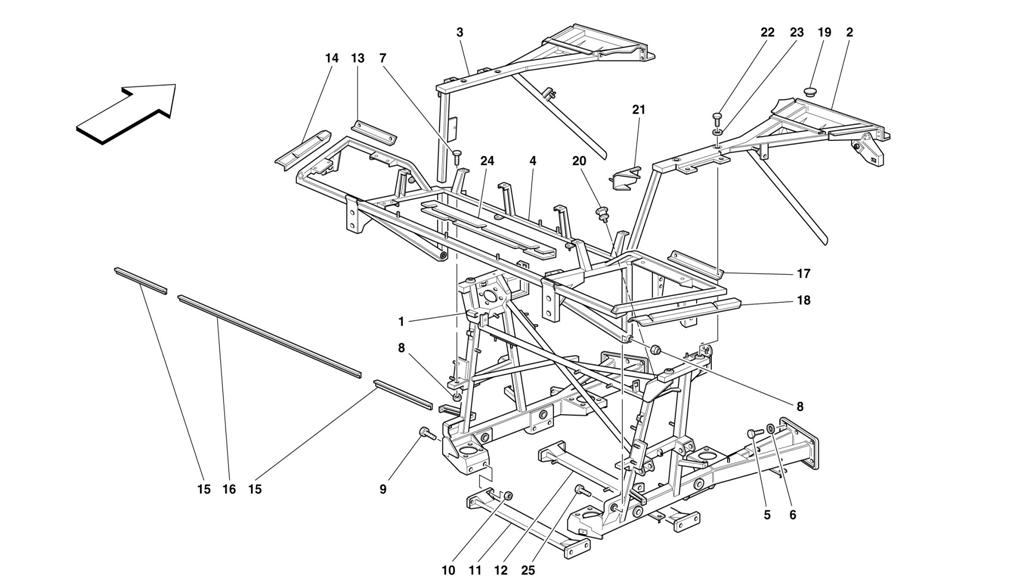

FRAME - REAR PART ELEMENTS

Go to Split View

FRAME - REAR PART ELEMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 65236700 *Qty: 0 FRAME R (SAT) Call
Location: 1 Prev | Next Part: 64973300 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Not for 355 F1 -Valid for USA, CDN and SA Call
Location: 1 Prev | Next Part: 65098200 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Not for 355 F1 -Not for USA, CDN, RHD and SA Call
Location: 1 Prev | Next Part: 65098600 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Not for 355 F1 -Valid for GB -Not for AUS and ZA Call
Location: 1 Prev | Next Part: 65402600 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Valid for 355 F1 -Not for USA, CDN and RHD $6,045.25
Location: 1 Prev | Next Part: 65425900 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Valid for 355 F1 -Valid for USA and CDN $4,521.52
Location: 1 Prev | Next Part: 65427300 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Valid for 355 F1 -Valid for RHD Call
Location: 1 Prev | Next Part: 64952500 *Qty: 1 MOVING FRAME FOR MOTOR- PROPULSOR SUPPORT -Not for 355 F1 -Valid for AUS and ZA $3,351.90
Location: 3 Prev | Next Part: 65402300 *Qty: 1 L.H. UPPER FIXED FRAME -Valid for 355 F1 $778.82
Location: 3 Prev | Next Part: 64925400 *Qty: 1 L.H. UPPER FIXED FRAME -Not for 355 F1 $888.06
Location: 4 Prev | Next Part: 64973700 *Qty: 1 BUMPER SUPPORT TRESTLE ASSEMBLY -Not for 355 F1 -Valid for USA and SA $1,243.96
Location: 4 Prev | Next Part: 65059100 *Qty: 1 BUMPER SUPPORT TRESTLE ASSEMBLY -Not for 355 F1 -Valid for CDN $1,247.19
Location: 4 Prev | Next Part: 65402500 *Qty: 1 BUMPER SUPPORT TRESTLE ASSEMBLY -Valid for 355 F1 -Not for USA and CDN $874.55
Location: 4 Prev | Next Part: 65425500 *Qty: 1 BUMPER SUPPORT TRESTLE ASSEMBLY -Vale for 355 F1 -Valid for USA $2,704.26
Location: 4 Prev | Next Part: 65491800 *Qty: 1 BUMPER SUPPORT TRESTLE ASSEMBLY -Valid for 355 F1 -Valid for CDN $2,704.26
Location: 4 Prev | Next Part: 64925600 *Qty: 1 BUMPER SUPPORT TRESTLE ASSEMBLY -Not for 355 F1 -Not for USA, CDN and SA Call
Location: 5 Prev | Next Part: 16142021 *Qty: 12 SCREW $7.48
Location: 6 Prev | Next Part: 127498 *Qty: 12 WASHER $0.90
Location: 7 Prev | Next Part: 11422021 *Qty: 2 SCREW -Not for USA, CDN and J $1.77
Location: 7 Prev | Next Part: 15862134 *Qty: 2 SCREW -Valid for USA, CDN and J $4.95
Location: 8 Prev | Next Part: 150238 *Qty: 4 NUT $0.90
Location: 9 Prev | Next Part: 14331224 *Qty: 8 SCREW $3.44
Location: 10 Prev | Next Part: 142438 *Qty: 8 NUT $0.96
Location: 11 Prev | Next Part: 63948500 *Qty: 1 REAR REMOVABLE CROSS MEMBER $380.44
Location: 12 Prev | Next Part: 63948800 *Qty: 1 FRONT REMOVABLE CROSS MEMBER $197.76
Location: 13 Prev | Next Part: 62123700 *Qty: 1 WHEELHOUSE FIXING L.H. PLATE $2.52
Location: 14 Prev | Next Part: 62129000 *Qty: 1 FENDER FIXING L.H. PLATE $31.27
Location: 15 Prev | Next Part: 62054800 *Qty: 2 FRONT PLATE FOR REAR SIDE COVER SUPPORT $2.77
Location: 16 Prev | Next Part: 62055000 *Qty: 1 CENTRAL PLATE FOR REAR SIDE COVER SUPPORT $3.36
Location: 17 Prev | Next Part: 62123700 *Qty: 1 WHEELHOUSE FIXING R.H. PLATE $2.52
Location: 18 Prev | Next Part: 62128900 *Qty: 1 FENDER FIXING R.H. PLATE $31.27
Location: 19 Prev | Next Part: 14506787 *Qty: 2 PLUG $0.90
Location: 20 Prev | Next Part: 151856 *Qty: 1 NEGATIVE TERMINAL $3.19
Location: 21 Prev | Next Part: 64295600 *Qty: 1 TERMINAL BOX FIXING BRACKET $162.25
Location: 22 Prev | Next Part: 63369800 *Qty: 4 SCREW $1.23
Location: 23 Prev | Next Part: 127497 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 64696600 *Qty: 1 PIPE RETAINING MOLDING $108.97
Location: 25 Prev | Next Part: 15977724 *Qty: 2 SCREW -Valid for USA, CDN, SA and J $1.80
Location: 25 Prev | Next Part: 15862134 *Qty: 2 SCREW -Not for USA, CDN and J $4.95

* Quantity shown indicates the number of pieces used in the diagram.
