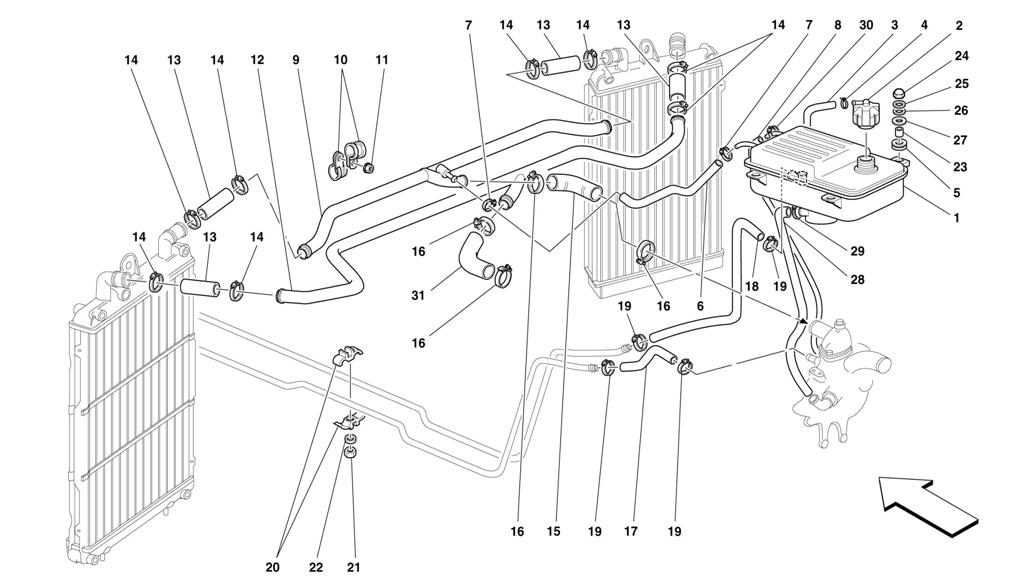

COOLING SYSTEM - NOURICE

Location Part # Quantity* Description Price Add To Cart
1 153447 1 TANK FOR RADIATOR $1,259.59
2 145030 1 TANK PLUG $62.10
3 156082 1 VENT PIPE $362.33
4 13423171 1 ELASTIC COLLAR Unavailable
5 103549 4 CABLE GROMMET $1.81
6 161609 1 PIPE FROM TANK TO RADIATORS DELIVERY PIPE $71.54
7 13000190 2 SCREW COLLAR $0.90
8 161610 1 RUBBER HOSE FROM TANK TO WATER PUMP $18.25
9 167024 1 RADIATORS DELIVERY PIPE $562.09
10 106195 4 BRACKET WITH SHEATH $80.67
11 102741 2 NUT $0.90
12 158249 1 RADIATORS RETURN PIPE $776.45
13 171631 4 RUBBER HOSE $32.76
14 13000690 8 SCREW COLLAR Unavailable
15 164417 1 RETURN RUBBER HOSE $86.25
16 13000690 4 SCREW COLLAR Unavailable
17 64612000 1 DELIVERY RUBBER HOSE FROM PUMP TO UNDERFLOOR PIPE $241.55
18 64328400 1 RETURN SLEEVE FROM UNDERFLOOR PIPE TO TANK Unavailable
19 13000390 4 SCREW COLLAR Unavailable
20 62658800 8 CLIP Unavailable
21 102948 4 NUT Superseded
22 12639724 4 WASHER $0.90
23 149707 4 SPACER $1.50
24 100044 4 NUT $0.90
25 113113 4 WASHER Unavailable
26 14496424 4 WASHER Superseded
27 12643724 4 WASHER Superseded
28 160416 1 RUBBER HOSE FROM ENGINE TO TANK $65.55
29 13000490 2 SCREW COLLAR Superseded
30 13000190 2 SCREW COLLAR $0.90
31 164417 1 DELIVERY RUBBER HOSE -Valid after stock exhaustion of 173040 $86.25

* Quantity shown indicates the number of pieces used in the diagram.
