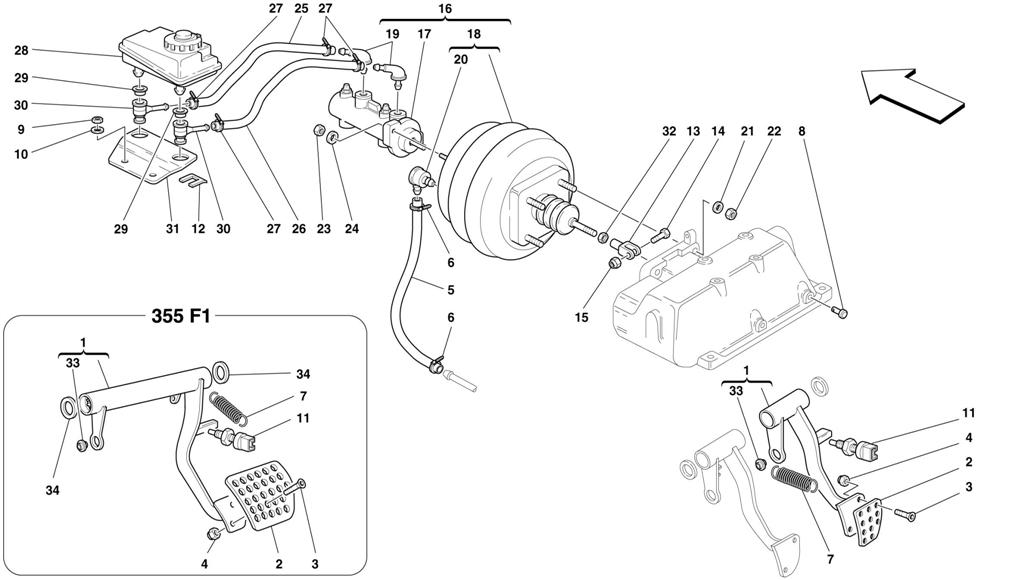

BRAKE HYDRAULIC SYSTEM -VALID FOR ABS BOSCH AND 355 F1 CARS-

Go to Split View

BRAKE HYDRAULIC SYSTEM -VALID FOR ABS BOSCH AND 355 F1 CARS-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 170623 *Qty: 1 BRAKE PEDAL -Not for RHD -Not for 355 F1 cars $614.52
Location: 1 Prev | Next Part: 170632 *Qty: 1 BRAKE PEDAL -Valid for RHD -Not for 355 F1 cars $1,117.30
Location: 1 Prev | Next Part: 171748 *Qty: 1 BRAKE PEDAL -Not for RHD -Valid for 355 F1 cars $865.91
Location: 1 Prev | Next Part: 174236 *Qty: 1 BRAKE PEDAL -Valid for RHD -Valid for 355 F1 cars $614.52
Location: 2 Prev | Next Part: 162535 *Qty: 1 BRAKE PEDAL DRILLED PLATE -Not for 355 F1 cars $39.26
Location: 2 Prev | Next Part: 167299 *Qty: 1 BRAKE PEDAL DRILLED PLATE -Valid for 355 F1 cars $197.57
Location: 3 Prev | Next Part: 14441324 *Qty: 2 SCREW $0.90
Location: 4 Prev | Next Part: 15896214 *Qty: 2 NUT Call
Location: 5 Prev | Next Part: 168386 *Qty: 1 RUBBER HOSE -Not for RHD $26.00
Location: 5 Prev | Next Part: 169046 *Qty: 1 RUBBER HOSE -Valid for RHD $35.37
Location: 6 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.90
Location: 7 Prev | Next Part: 101305 *Qty: 1 SPRING $5.25
Location: 8 Prev | Next Part: 129612 *Qty: 1 PIN $2.68
Location: 9 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 10 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 11 Prev | Next Part: 133555 *Qty: 1 STOP CONTROL SWITCH $31.75
Location: 12 Prev | Next Part: 110810 *Qty: 2 PLATE $1.36
Location: 13 Prev | Next Part: 10007871 *Qty: 1 FORK -Not for RHD $17.31
Location: 13 Prev | Next Part: 169041 *Qty: 1 FORK -Valid for RHD $54.70
Location: 14 Prev | Next Part: 16043621 *Qty: 1 SCREW $0.90
Location: 15 Prev | Next Part: 147985 *Qty: 1 NUT $0.90
Location: 16 Prev | Next Part: 170626 *Qty: 1 COMPLETE BRAKE BOOSTER $866.08
Location: 17 Prev | Next Part: 171782 *Qty: 1 BRAKE PUMP $457.86
Location: 18 Prev | Next Part: 171785 *Qty: 1 BOOSTER $906.16
Location: 19 Prev | Next Part: 173871 *Qty: 2 UNION $8.27
Location: 20 Prev | Next Part: 144552 *Qty: 1 UNION $14.77
Location: 21 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 22 Prev | Next Part: 147985 *Qty: 4 NUT $0.90
Location: 23 Prev | Next Part: 147985 *Qty: 2 NUT $0.90
Location: 24 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 173882 *Qty: 1 FRONT RUBBER HOSE -Valid for RHD $17.33
Location: 25 Prev | Next Part: 105857 *Qty: 1 FRONT RUBBER HOSE -Not for RHD $5.56
Location: 26 Prev | Next Part: 173882 *Qty: 1 REAR RUBBER HOSE -Not for RHD $17.33
Location: 26 Prev | Next Part: 173884 *Qty: 1 REAR RUBBER HOSE -Valid for RHD $6.61
Location: 27 Prev | Next Part: 13000190 *Qty: 4 SCREW COLLAR $0.90
Location: 28 Prev | Next Part: 173866 *Qty: 1 COMPLETE BRAKE OIL TANK Call
Location: 29 Prev | Next Part: 175189 *Qty: 2 SEAL RING $21.64
Location: 30 Prev | Next Part: 177896 *Qty: 2 UNION $44.96
Location: 31 Prev | Next Part: 173819 *Qty: 1 BRAKE OIL TANK SUPPORT -Not for RHD $7.08
Location: 31 Prev | Next Part: 173867 *Qty: 1 BRAKE OIL TANK SUPPORT -Valid for RHD $30.56
Location: 32 Prev | Next Part: 16102314 *Qty: 1 NUT Call
Location: 33 Prev | Next Part: 109407 *Qty: 1 BALL JOINT $24.12
Location: 34 Prev | Next Part: 113833 *Qty: 2 SPACER WASHER mm. 1,1 -As an alternatives $2.82
Location: 34 Prev | Next Part: 113834 *Qty: 2 SPACER WASHER mm. 1,2 -As an alternatives $2.82
Location: 34 Prev | Next Part: 113835 *Qty: 2 SPACER WASHER mm. 1,3 -As an alternatives $0.90
Location: 34 Prev | Next Part: 113836 *Qty: 2 SPACER WASHER mm. 1,4 -As an alternatives $1.21
Location: 34 Prev | Next Part: 106083 *Qty: 2 SPACER WASHER mm. 1,0 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
