AIR CONDITIONING SYSTEM

in cart
Go to Split View

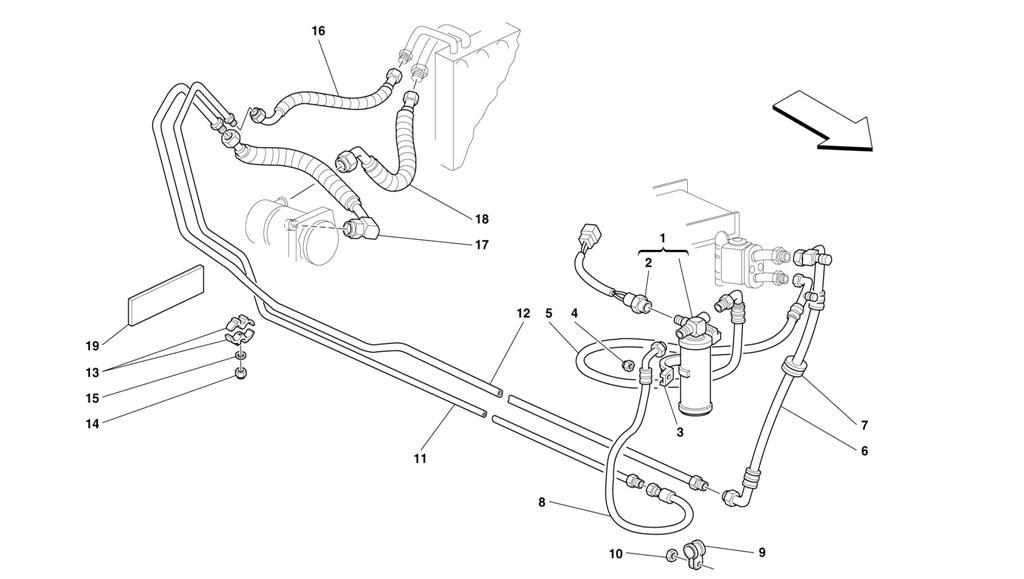

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63934300 *Qty: 1 DEHYDRATOR FILTER WITH PRESSURE SWITCH $214.97
Location: 2 Prev | Next Part: 64278900 *Qty: 1 PRESSOSTAT $89.33
Location: 3 Prev | Next Part: 62165800 *Qty: 1 BRACKET $5.27
Location: 4 Prev | Next Part: 102948 *Qty: 2 NUT Superseded
Location: 5 Prev | Next Part: 64461100 *Qty: 1 PIPE FROM CLEANER TO EVAPORATOR -Valid for RHD $71.35
Location: 5 Prev | Next Part: 62964800 *Qty: 1 PIPE FROM CLEANER TO EVAPORATOR -Not for RHD $65.62
Location: 6 Prev | Next Part: 64461200 *Qty: 1 PIPE FROM EVAPORATOR TO UNDERFLOOR PIPE -Valid for RHD $70.80
Location: 6 Prev | Next Part: 62964900 *Qty: 1 PIPE FROM EVAPORATOR TO UNDERFLOOR PIPE -Not for RHD $67.74
Location: 7 Prev | Next Part: 10398780 *Qty: 1 CABLE GROMMET $3.94
Location: 8 Prev | Next Part: 62964700 *Qty: 1 PIPE FROM UNDERFLOOR PIPE TO CLEANER $65.17
Location: 9 Prev | Next Part: 10441990 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 10 Prev | Next Part: 102948 *Qty: 1 NUT Superseded
Location: 11 Prev | Next Part: 63561500 *Qty: 1 DELIVERY UNDERFLOOR PIPE $125.91
Location: 12 Prev | Next Part: 63561600 *Qty: 1 RETURN UNDERFLOOR PIPE -Not for RHD $165.61
Location: 12 Prev | Next Part: 64543600 *Qty: 1 RETURN UNDERFLOOR PIPE -Valid for RHD $350.76
Location: 13 Prev | Next Part: 64290100 *Qty: 12 CLIP $4.20
Location: 14 Prev | Next Part: 102948 *Qty: 6 NUT Superseded
Location: 15 Prev | Next Part: 12639724 *Qty: 6 WASHER $0.90
Location: 16 Prev | Next Part: 62964600 *Qty: 1 PIPE FROM CONDENSER TO UNDERFLOOR PIPE $193.88
Location: 17 Prev | Next Part: 62965000 *Qty: 1 PIPE FROM UNDERFLOOR PIPE TO COMPRESSOR Call
Location: 18 Prev | Next Part: 62964500 *Qty: 1 PIPE FROM COMPRESSOR TO CONDENSER $320.91
Location: 19 Prev | Next Part: 64827200 *Qty: 1 RUBBER THICKNESS $10.16

* Quantity shown indicates the number of pieces used in the diagram.
