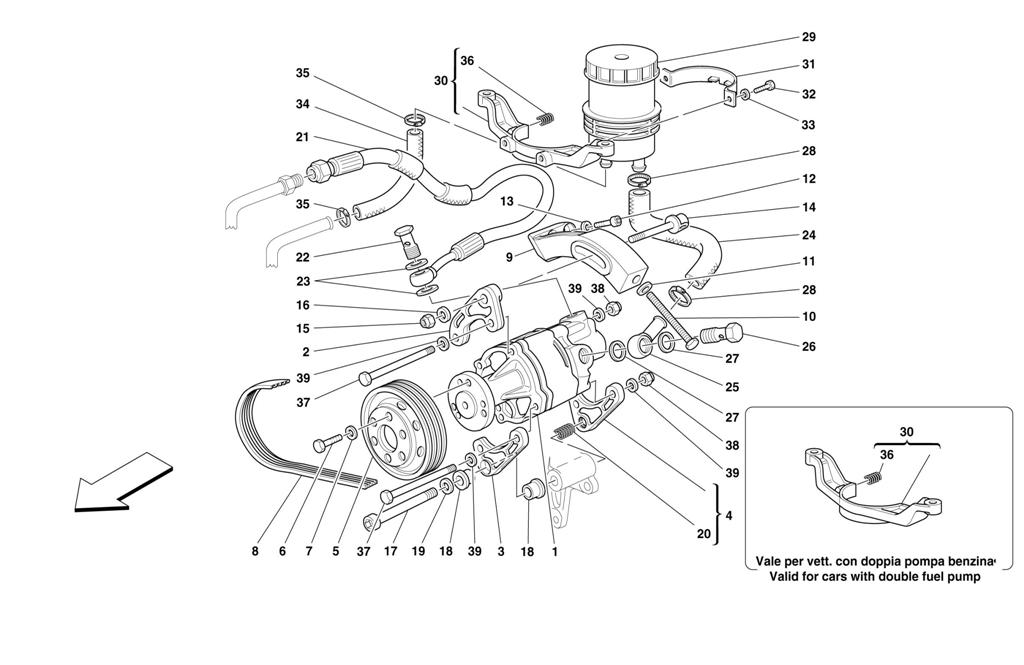

HYDRAULIC STEERING PUMP -VALID FOR STEERING BOX WITH POWER STEERING CARS-

Location Part # Quantity* Description Price Add To Cart
1 158114 1 COMPLETE HYDRAULIC SERVO-CONTROL PUMP Unavailable
2 158002 1 UPPER FRONT BRACKET -Not as spare part -With the complete hydraulic servo-control pump Unavailable
3 158003 1 LOWER FRONT BRACKET -Not as spare part -With the complete hydraulic servo-control pump Unavailable
4 158004 1 REAR BRACKET -Not as spare part -With the complete hydraulic servo-control pump Unavailable
5 158009 1 POWER STEERING PUMP PULLEY $155.27
6 16051921 3 SCREW $1.81
7 11193874 3 WASHER $0.90
8 199832 1 POWER STEERING PUMP BELT $19.47
9 158000 1 BELT TENSION ADJUSTING BRACKET $133.68
10 125668 1 SCREW $7.65
11 14496524 1 WASHER $0.90
12 14305424 2 SCREW Superseded
13 153366 2 WASHER Unavailable
14 152535 1 THREADED PIN $162.18
15 104030 1 NUT $0.90
16 12646724 1 WASHER $0.90
17 14308574 1 SCREW $5.16
18 158008 2 BUSHING $6.38
19 11190574 1 WASHER $0.90
20 13526070 1 THREADED INSERT Unavailable
21 167568 1 DELIVERY PIPE FROM PUMP TO UNDERFLOOR PIPE -Valid after stock exhaustion of 165193 Unavailable
22 10185111 1 UNION $5.93
23 10280060 2 GASKET $0.90
24 160955 1 PIPE FROM TANK TO PUMP $98.33
25 159469 1 UNION $32.76
26 10184411 1 UNION Unavailable
27 145192 2 GASKET Unavailable
28 13000390 2 SCREW COLLAR Unavailable
29 167002 1 POWER STEERING OIL TANK $91.43
30 164912 1 BRACKET -Valid for cars with single fuel pump $657.35
30 159434 1 BRACKET -Valid for cars with double fuel pump $69.30
31 159443 1 TANK SUPPORT CLAMP $9.58
32 14305724 2 SCREW $0.90
33 10519424 2 WASHER Unavailable
34 173572 1 HOSE FROM UNDERFLOOR PIPE TO TANK Unavailable
35 161490 2 SCREW COLLAR $2.72
36 13525570 2 THREADED INSERT $2.86

* Quantity shown indicates the number of pieces used in the diagram.
