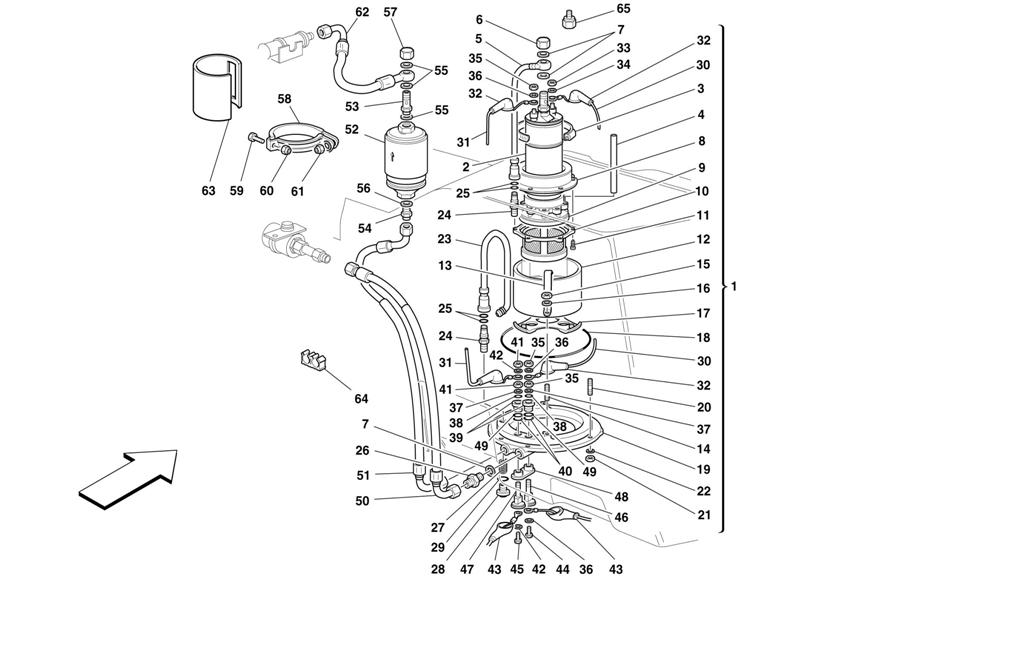

FUEL PUMP AND PIPES -VALID FOR CARS WITH DOUBLE FUEL PUMP-

Back to F355 M2.7 (1995) components

Location	Part #	Quantity*	Description	Price	Add To Cart
1	160047	2	COMPLETE FUEL PUMP	$1,498.13
2	155592	2	FUEL PUMP	$990.62
3	13000890	2	SCREW COLLAR	$1.48
4	139205	2	VENT PIPE		Unavailable
5	133967	2	FUEL PIPE		Unavailable
6	171752	2	UNION -Valid till engine Nr.42568		Unavailable
7	113910	8	GASKET		Superseded
8	168880	2	FUEL FILTER COVER -Repleces 126810		Unavailable
8	126810	2	FUEL FILTER COVER -For F355 not as spare part		Unavailable
9	153188	2	GASKET	$169.79
10	126808	2	FILTER INSIDE CHAMBER		Unavailable
11	15671101	12	SCREW		Unavailable
12	126806	2	PAN		Unavailable
13	137577	4	BRACKET		Unavailable
14	11000924	4	STUD	$2.11
15	13677911	4	NUT		Unavailable
16	10730014	4	WASHER		Unavailable
17	126807	2	ANTI-VIBRATIONS	$56.31
18	138453	2	O.R. GASKET	$60.88
19	139454	2	FUEL PUMP COVER	$714.54
20	11500224	16	STUD		Unavailable
21	102741	16	NUT	$0.90
22	12601274	16	WASHER	$0.90
23	133968	2	FUEL FLOWING BACK PIPE		Unavailable
24	133950	4	UNION		Unavailable
25	133956	8	O.R. GASKET	$1.26
26	109797	4	UNION	$48.70
27	103388	2	THREADED INSERT	$18.25
28	134713	2	PLUG	$18.25
29	134233	2	O.R. GASKET	$0.90
30	139519	2	POSITIVE CABLE		Unavailable
31	146660	2	NEGATIVE CABLE		Unavailable
32	130146	8	BOOT		Unavailable
33	10794011	2	NUT		Unavailable
34	10615274	2	WASHER		Unavailable
35	15896470	6	NUT		Unavailable
36	149951	6	WASHER		Superseded
37	10519424	4	WASHER		Unavailable
38	134701	4	O.R. GASET	$0.90
39	134672	4	BUSHING		Unavailable
40	134705	4	O.R. GASKET	$0.90
41	15896214	4	NUT		Unavailable
42	10615474	4	WASHER		Unavailable
43	137612	4	BOOT		Unavailable
44	10856821	2	SCREW		Unavailable
45	11635721	2	SCREW		Unavailable
46	137611	2	MASS PIN	$66.97
47	137610	2	MASS PIN	$53.27
48	137613	2	OUTER FLANGE		Unavailable
49	14456880	4	O.R. GASKET	$2.33
50	172437	1	FUEL TUBE FROM PRESSURE ADJUSTER TO L.H. PUMP -Valid after stock exhaustion of 157656	$621.16
50	172439	1	FUEL TUBE FROM PRESSURE ADJUSTER TO R.H. PUMP -Valid after stock exhaustion of 157653	$483.12
51	172438	1	FUEL PIPE FROM PUMP TO L.H. FILTER -Valid after stock exhaustion of 157654	$465.86
51	172440	1	FUEL PIPE FROM PUMP TO R.H. FILTER -Valid after stock exhaustion of 157651	$931.75
52	186922	2	FUEL FILTER	$58.69
53	109797	2	UNION	$48.70
54	109889	2	UNION		Unavailable
55	113910	6	GASKET		Superseded
56	10280060	2	GASKET	$0.90
57	171752	2	UNION		Unavailable
58	152885	2	BRACKET	$11.41
59	10902521	2	SCREW		Unavailable
60	102741	2	NUT	$0.90
61	101139	2	NUT	$0.90
62	177547	1	DELIVERY PIPE FROM FILTER TO R.H. FLUTE -Valid after stock exhaustion of 157652	$327.82
62	177548	1	DELIVERY PIPE FROM FILTER TO L.H. FLUTE -Valid after stock exhaustion of 157655	$396.84
63	164206	2	FILTER INSULATION	$89.47
64	160675	2	CLIP		Unavailable
65	171752	1	NUT -Valid from engine Nr.42569		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
