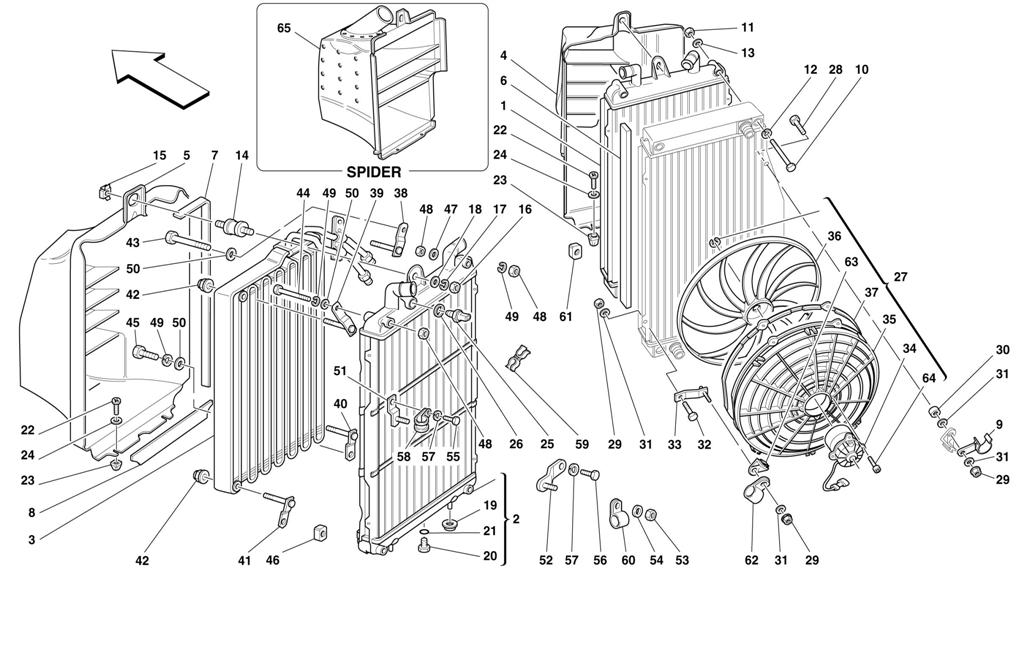

COOLING SYSTEM RADIATORS

Location Part # Quantity* Description Price Add To Cart
1 157589 1 WATER R.H. RADIATOR Superseded
2 157590 1 WATER L.H. RADIATOR Superseded
3 62963600 1 A.C. CONDENSER Unavailable
4 64243900 1 R.H. AIR INLET -Not for Spider $1,853.17
5 64244000 1 L.H. AIR INLET -Not for Spider $1,853.17
6 158243 2 GASKET Unavailable
7 64530900 3 LATERAL GASKET -L. mm. 600 -No more used $10.21
7 64244100 1 LATERAL GASKET -L. mm. 540 -No more used $6.70
8 63370900 2 LOWER GASKET -No more used Unavailable
9 162751 1 FLEXIBLE CLIP Unavailable
10 16045624 4 SCREW $1.14
11 133989 2 NUT $0.90
12 127496 4 WASHER $0.90
13 14496524 4 WASHER $0.90
14 157650 2 PAD $15.85
15 14074890 2 NUT WITH CAGE Unavailable
16 133989 2 NUT $0.90
17 127496 2 WASHER $0.90
18 124338 2 WASHER $10.19
19 137624 4 ANTIVIBRATION PAD Unavailable
20 159923 2 THREADED PLUG $10.19
21 140150 2 O.R. GASKET $1.64
22 15903901 10 SCREW Unavailable
23 14202580 10 BLOCK Unavailable
24 12638124 10 WASHER $0.90
25 158655 1 TEMPERATURE SWITCH $100.12
26 101508 1 GASKET $1.66
27 173030 2 COMPLETE ELECTROFAN $415.00
28 10902724 2 SCREW Unavailable
29 102741 6 NUT $0.90
30 162424 2 SPACER Unavailable
31 12644424 8 WASHER Unavailable
32 10902024 2 SCREW $0.90
33 162422 2 SMALL PLATE Unavailable
34 153174 2 ELECTRIC FAN MOTOR Unavailable
35 152920 2 AIR CONVEYOR $126.52
36 164096 2 BLOWER Unavailable
37 164097 2 RUBBER EDGE Unavailable
38 64303200 1 R.H. UPPER BRACKET $4.85
39 64255200 1 L.H. UPPER BRACKET $3.51
40 64306300 1 R.H. LOWER BRACKET $3.51
41 64255600 1 L.H. LOWER BRACKET $3.80
42 15896214 4 NUT Unavailable
43 16044621 1 SCREW Unavailable
44 16044421 1 SCREW Unavailable
45 16043324 2 SCREW $0.90
46 14095511 2 NUT Unavailable
47 64322200 1 WASHER Unavailable
48 133989 3 NUT $0.90
49 127496 3 WASHER $0.90
50 14496524 4 WASHER $0.90
51 162423 2 SMALL PLATE $19.77
52 162422 2 SMALL PLATE Unavailable
53 102741 4 NUT $0.90
54 12644424 4 WASHER Unavailable
55 10902024 2 SCREW $0.90
56 10902124 2 SCREW $0.90
57 127494 4 WASHER $0.90
58 10441490 2 BRACKET WITH SHEATH Unavailable
59 164374 1 FLEXIBLE CLIP Unavailable
60 10418301 1 BRACKET Unavailable
61 14095511 2 NUT Unavailable
62 10418301 1 BRACKET Unavailable
63 166548 8 SUPPORT $12.77
64 166550 8 SCREW $12.02
65 64525700 1 R.H. AIR INLET -Valid for Spider $949.00
65 65513500 1 L.H. AIR INLET -Valid for Spider $983.51

* Quantity shown indicates the number of pieces used in the diagram.
