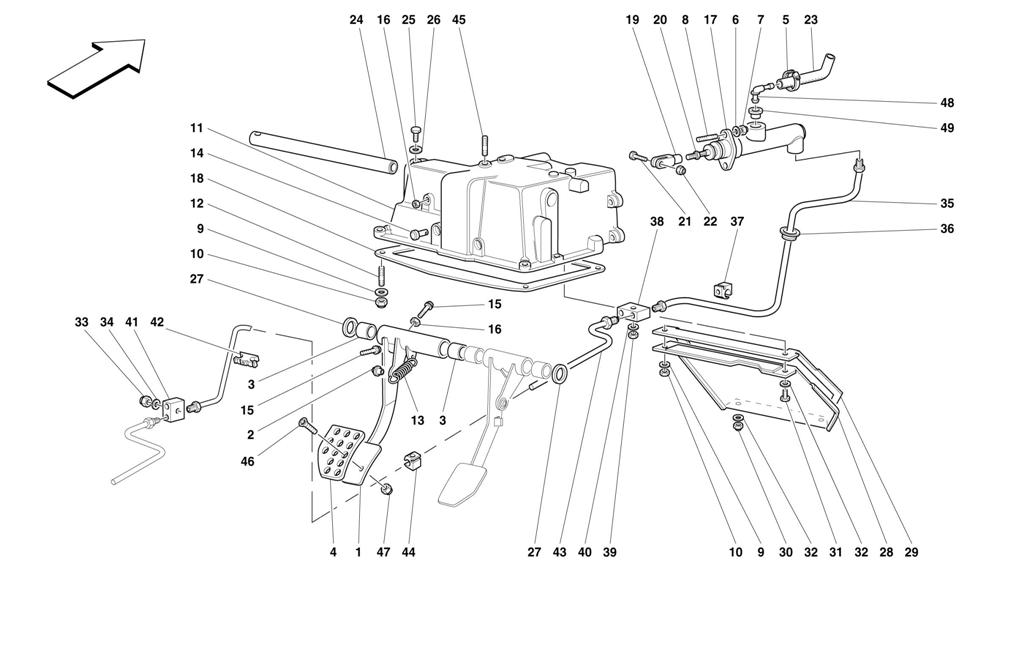

CLUTCH RELEASE CONTROL -VALID FOR RHD

Back to F355 M2.7 (1995) components

Location	Part #	Quantity*	Description	Price	Add To Cart
-	148261	1	COMPLETE PEDAL SUPPORT	$1,018.02
1	100112	1	CLUTCH PEDAL	$116.63
2	109407	1	BALL JOINT	$75.90
3	103163	2	BUSHING	$8.51
4	162536	1	CLUTCH PEDAL DRILLED PLATE	$50.02
5	157934	1	SCREW COLLAR		Superseded
6	12601374	2	WASHER	$0.90
7	133215	2	NUT		Superseded
8	13516824	2	STUD		Unavailable
9	14499401	4	WASHER		Unavailable
10	104030	4	NUT	$0.90
11	138311	1	PEDAL SUPPORT -Not as spare part -With the complete pedal support		Unavailable
12	13516824	4	STUD		Unavailable
13	101305	1	SPRING		Unavailable
14	129612	1	PIN	$3.19
15	144011	2	PEDAL ADJUSTEMENT PIN		Unavailable
16	16102324	2	NUT		Unavailable
17	175211	1	CLUTCH CONTROL PUMP	$389.74
18	129615	1	GASKET	$18.96
19	10248271	1	FORK		Unavailable
20	16102324	1	NUT		Unavailable
21	16043621	1	SCREW		Unavailable
22	147985	1	NUT	$0.90
23	134903	1	PIPE FROM CLUTCH PUMP TO TANK	$4.71
24	131319	1	PEDAL FASTENING PIN	$134.65
25	10902224	1	SCREW	$0.90
26	12601274	1	WASHER	$0.90
27	113833	2	SPACER WASHER mm. 1,1		Unavailable
27	113834	2	SPACER WASHER mm. 1,2		Unavailable
27	113835	2	SPACER WASHER mm. 1,3		Unavailable
27	113836	2	SPACER WASHER mm. 1,4		Unavailable
27	106083	2	SPACER WASHER mm. 1,0		Unavailable
28	62164600	1	PEDAL SUPPORT GUARD	$125.94
29	62697800	1	GASKET	$13.44
30	102948	2	NUT		Superseded
31	15925601	1	SCREW		Unavailable
32	12646601	3	WASHER		Unavailable
33	102741	1	NUT	$0.90
34	12639724	1	WASHER	$0.90
35	162893	1	PIPE FROM PUMP TO UNION	$79.35
36	105369	1	CABLE GROMMET	$30.55
37	141521	1	CLIP		Unavailable
38	139375	1	UNION	$74.00
39	102741	1	NUT	$0.90
40	12639724	1	WASHER	$0.90
41	139375	1	UNION	$74.00
42	141522	9	CLIP		Unavailable
43	145034	1	CLUTCH CONTROL INTERMEDIATE PIPE	$75.90
44	141521	2	CLIP		Unavailable
45	11500124	4	STUD		Unavailable
46	14441324	2	SCREW		Unavailable
47	15896214	2	NUT		Unavailable
48	184497	1	UNION		Unavailable
49	175189	1	RUBBER	$27.59

* Quantity shown indicates the number of pieces used in the diagram.
