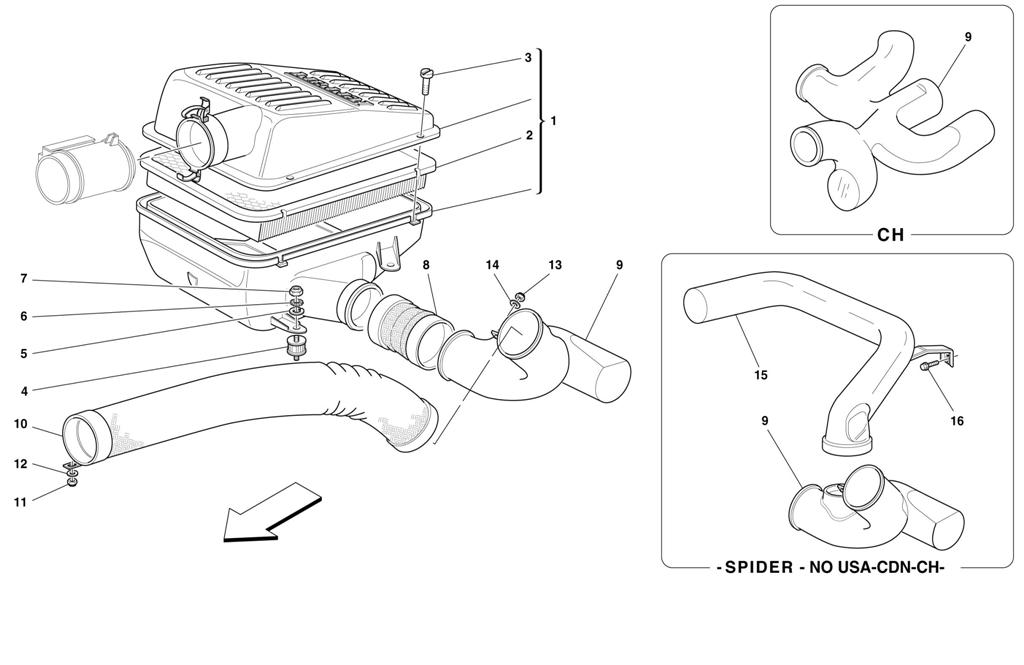

AIR INTAKE

Go to Split View

AIR INTAKE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 165291 *Qty: 1 COMPLETE L.H. AIR INTAKE -Valid for CH $977.63
Location: 1 Prev | Next Part: 165292 *Qty: 1 COMPLETE R.H. AIR INTAKE -Valid for CH $977.63
Location: 1 Prev | Next Part: 154729 *Qty: 1 COMPLETE R.H. AIR INTAKE -Not for CH $1,013.09
Location: 1 Prev | Next Part: 154730 *Qty: 1 COMPLETE L.H. AIR INTAKE -Not for CH $1,097.73
Location: 2 Prev | Next Part: 151562 *Qty: 2 AIR FILTER $49.99
Location: 3 Prev | Next Part: 157757 *Qty: 8 SCREW $10.34
Location: 4 Prev | Next Part: 142202 *Qty: 6 ANTI-VIBRATION SUPPORT $10.87
Location: 5 Prev | Next Part: 12643724 *Qty: 6 WASHER Superseded
Location: 6 Prev | Next Part: 127494 *Qty: 6 WASHER $0.90
Location: 7 Prev | Next Part: 15896214 *Qty: 6 NUT Unavailable
Location: 8 Prev | Next Part: 159527 *Qty: 2 SLEEVE $83.91
Location: 9 Prev | Next Part: 157559 *Qty: 1 R.H. DUCT -Not for Spider -Not for CH $35.10
Location: 9 Prev | Next Part: 157560 *Qty: 1 L.H. DUCT -Not for Spider -Not for CH $35.10
Location: 9 Prev | Next Part: 165237 *Qty: 1 R.H. DUCT -Valid for Spider -Not for USA, CDN and CH $47.91
Location: 9 Prev | Next Part: 165238 *Qty: 1 L.H. DUCT -Valid for Spider -Not for USA, CDN and CH $40.65
Location: 9 Prev | Next Part: 165447 *Qty: 1 R.H. DUCT -Valid for CH $683.80
Location: 9 Prev | Next Part: 165448 *Qty: 1 L.H. DUCT -Valid for CH $683.80
Location: 10 Prev | Next Part: 165232 *Qty: 2 SUCTION DUCTING -Valid for Spider $251.99
Location: 10 Prev | Next Part: 155061 *Qty: 2 SUCTION DUCTING -Not for Spider $141.35
Location: 11 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 12 Prev | Next Part: 10519424 *Qty: 2 WASHER Unavailable
Location: 13 Prev | Next Part: 169180 *Qty: 2 NUT $0.90
Location: 14 Prev | Next Part: 12638124 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 165239 *Qty: 1 R.H. EXTENSION FOR DUCT -Valid for Spider -Not for USA, CDN and CH $43.30
Location: 15 Prev | Next Part: 165240 *Qty: 1 L.H. EXTENSION FOR DUCT -Valid for Spider -Not for USA, CDN and CH $43.30
Location: 16 Prev | Next Part: 13836324 *Qty: 4 EXTENSION FIXING SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
