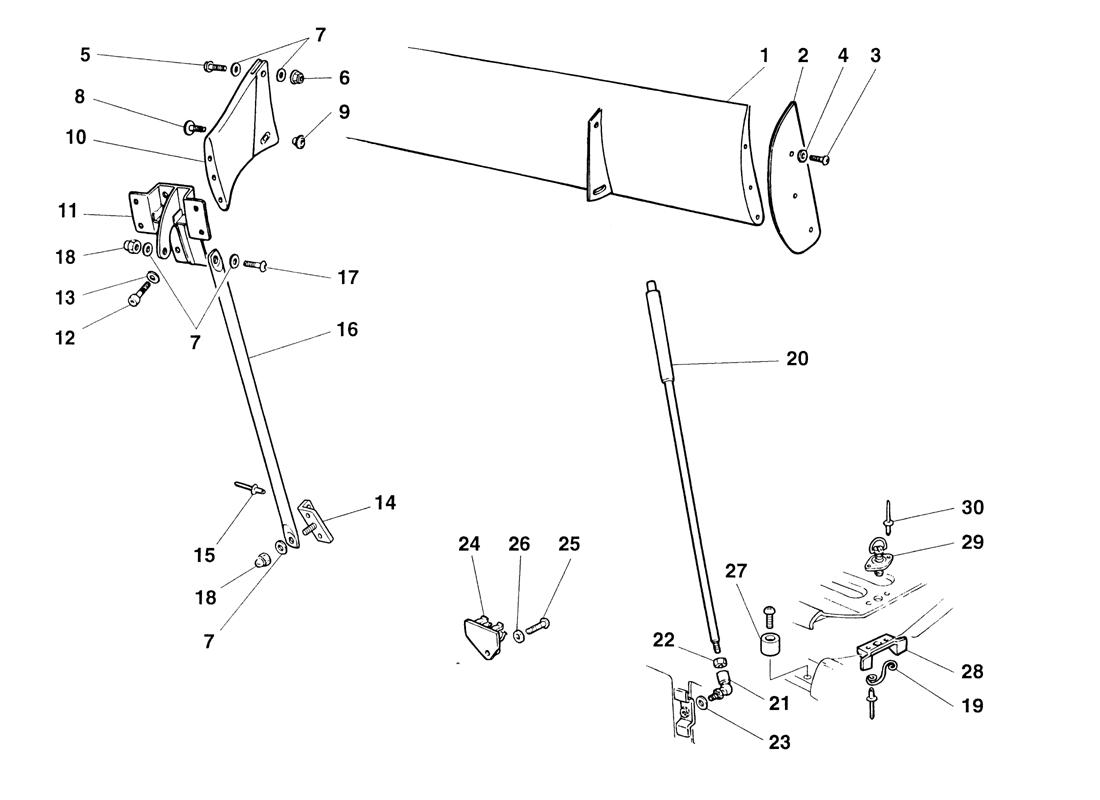

REAR WING

Go to Split View

REAR WING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 70000914 *Qty: 1 Wing kit Unavailable
Location: 1 Prev | Next Part: 177823 *Qty: 1 Rear wing $4,005.51
Location: 2 Prev | Next Part: 177825 *Qty: 1 LH fin $626.81
Location: 2 Prev | Next Part: 177824 *Qty: 1 RH fin $626.81
Location: 3 Prev | Next Part: 65757200 *Qty: 6 Low hollow H.H. screw M15 x 15 Unavailable
Location: 4 Prev | Next Part: 12601173 *Qty: 6 Spring washer Unavailable
Location: 5 Prev | Next Part: 65253400 *Qty: 2 Low hollow H.H. screw M6 x 25 Unavailable
Location: 6 Prev | Next Part: 132877 *Qty: 2 Nut Superseded
Location: 7 Prev | Next Part: 14496406 *Qty: 10 Spring washer Superseded
Location: 8 Prev | Next Part: 177826 *Qty: 2 Screw $18.68
Location: 9 Prev | Next Part: 177827 *Qty: 2 Bushing $36.75
Location: 10 Prev | Next Part: 177839 *Qty: 1 LH support $1,080.37
Location: 10 Prev | Next Part: 177838 *Qty: 1 RH support $1,048.48
Location: 11 Prev | Next Part: 177831 *Qty: 1 LH bracket Unavailable
Location: 11 Prev | Next Part: 177830 *Qty: 1 RH bracket Unavailable
Location: 12 Prev | Next Part: 14305224 *Qty: 6 Socket head screw M6 x 15 $0.90
Location: 13 Prev | Next Part: 12601221 *Qty: 6 Spring washer Y 6.4 - 12 x 0.5 Superseded
Location: 14 Prev | Next Part: 177832 *Qty: 2 Bracket $56.94
Location: 15 Prev | Next Part: 14641891 *Qty: 8 Rivet Unavailable
Location: 16 Prev | Next Part: 177834 *Qty: 1 LH tie-rod $142.44
Location: 16 Prev | Next Part: 177833 *Qty: 1 RH tie-rod $142.44
Location: 17 Prev | Next Part: 62940900 *Qty: 2 Low hollow H.H. screw M6x15 $1.60
Location: 18 Prev | Next Part: 14054513 *Qty: 4 Blank nut $3.11
Location: 19 Prev | Next Part: 178034 *Qty: 2 Spring $3.14
Location: 20 Prev | Next Part: 177821 *Qty: 1 Rear box supporting prop Unavailable
Location: 21 Prev | Next Part: 179115 *Qty: 1 Ball head $9.04
Location: 22 Prev | Next Part: 134041 *Qty: 1 Lock nut $1.07
Location: 23 Prev | Next Part: 10569273 *Qty: 1 Spring washer Unavailable
Location: 24 Prev | Next Part: 128292 *Qty: 1 Clip Unavailable
Location: 25 Prev | Next Part: 128292 *Qty: 1 Low hollow H.H. screw M6 x 20 Unavailable
Location: 26 Prev | Next Part: 12601221 *Qty: 1 Spring washer Y 6.4 - 12 x 0.5 Superseded
Location: 27 Prev | Next Part: 177844 *Qty: 2 Spacer $21.64
Location: 28 Prev | Next Part: 178028 *Qty: 2 Bracket $57.08
Location: 29 Prev | Next Part: 178027 *Qty: 2 Fast release coupling $39.60
Location: 30 Prev | Next Part: 14641491 *Qty: 4 Rivet Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
