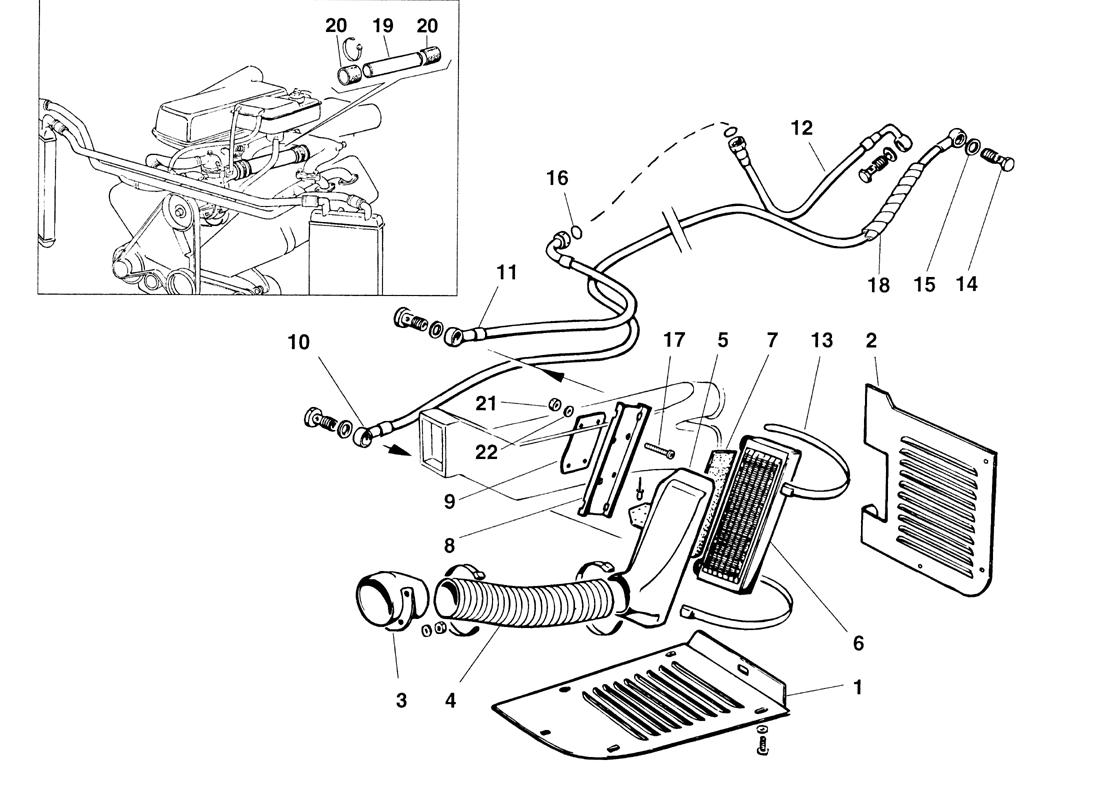

GEARBOX OIL COOLING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 65752600 *Qty: 1 Oil radiator kit Call
Location: 1 Prev | Next Part: 65751800 *Qty: 1 Lower gravel guard $163.40
Location: 2 Prev | Next Part: 65751900 *Qty: 1 Side grevel guard $174.89
Location: 3 Prev | Next Part: 65752500 *Qty: 1 Fitting $1,340.78
Location: 4 Prev | Next Part: 65752400 *Qty: 1 Air duct $184.87
Location: 5 Prev | Next Part: 65752300 *Qty: 1 Air conveyor $1,340.78
Location: 6 Prev | Next Part: 178470 *Qty: 1 Gearbox oil radiator $752.39
Location: 7 Prev | Next Part: 65752200 *Qty: 1 Spacer $6.85
Location: 8 Prev | Next Part: 65752000 *Qty: 1 Oil radiator supporting bracket $14.66
Location: 9 Prev | Next Part: 65752100 *Qty: 1 Oil radiator supporting bracket $11.56
Location: 10 Prev | Next Part: 178055 *Qty: 1 Oil delivery pipe to radiator $917.14
Location: 11 Prev | Next Part: 178057 *Qty: 1 Front return pipe $535.65
Location: 12 Prev | Next Part: 178056 *Qty: 1 Rear return pipe $631.29
Location: 13 Prev | Next Part: 65752700 *Qty: 6 Clamp $1.54
Location: 14 Prev | Next Part: 153419 *Qty: 4 Fitting $72.98
Location: 15 Prev | Next Part: 145192 *Qty: 8 Gasket $8.60
Location: 16 Prev | Next Part: 145192 *Qty: 2 0-ring $8.60
Location: 17 Prev | Next Part: 178483 *Qty: 4 Screw $0.90
Location: 18 Prev | Next Part: 65759900 *Qty: 1 Protection sheath $19.00
Location: 19 Prev | Next Part: 178058 *Qty: 1 Exchanger replace pipe $51.71
Location: 20 Prev | Next Part: 138981 *Qty: 2 Sleeve $39.70
Location: 21 Prev | Next Part: 178484 *Qty: 4 Nut $1.67
Location: 22 Prev | Next Part: 12643778 *Qty: 4 Washer $0.90

* Quantity shown indicates the number of pieces used in the diagram.
