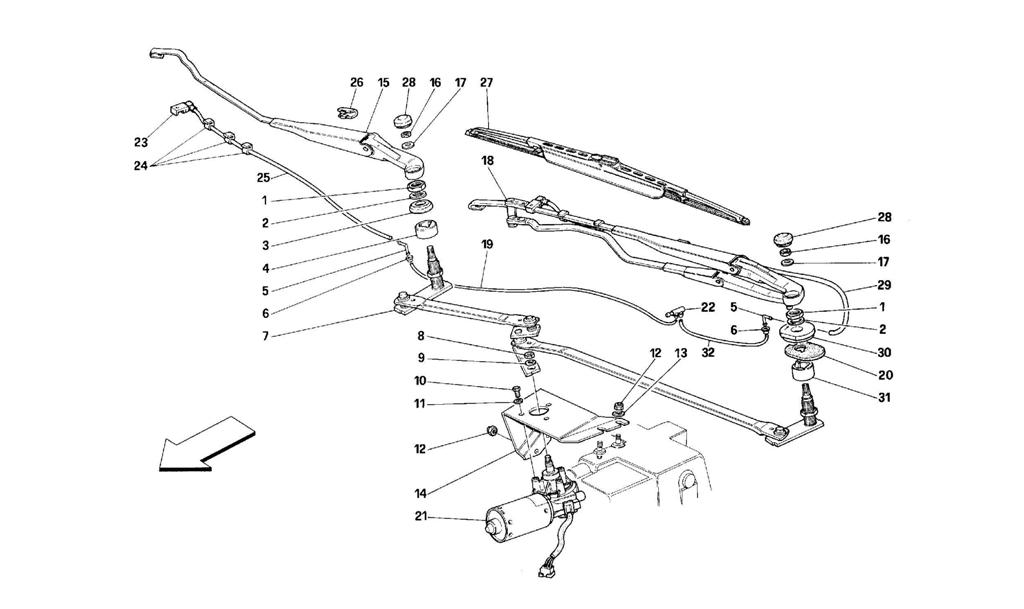

WINDSHIELD WIPER AND CONTROLS

Go to Split View

WINDSHIELD WIPER AND CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62661300 *Qty: 2 RING NUT $88.97
Location: 2 Prev | Next Part: 63288800 *Qty: 1 WASHER (PILOT SIDE PIN) $5.18
Location: 2 Prev | Next Part: 62661100 *Qty: 1 WASHER (PASSENGER SIDE PIN) $1.13
Location: 3 Prev | Next Part: 62661000 *Qty: 1 SPACER $1.46
Location: 4 Prev | Next Part: 62660900 *Qty: 1 SPACER $54.68
Location: 5 Prev | Next Part: 62830100 *Qty: 2 UNION $0.99
Location: 6 Prev | Next Part: 61444900 *Qty: 2 BUSH Call
Location: 7 Prev | Next Part: 62885800 *Qty: 1 WINDSHIELD WIPER LEVERAGE
-Not for RHD
$321.17
Location: 7 Prev | Next Part: 62916100 *Qty: 1 WINDSHIELD WIPER LEVERAGE
-Valid for RHD
$417.69
Location: 8 Prev | Next Part: 62885600 *Qty: 1 NUT $2.27
Location: 9 Prev | Next Part: 62885700 *Qty: 1 WASHER Call
Location: 10 Prev | Next Part: 10902111 *Qty: 3 SCREW Superseded
Location: 11 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 12 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 13 Prev | Next Part: 12647601 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 62512100 *Qty: 1 WINDSHIELD WIPER MOTOR FASTENING BRACKET
-Not for RHD
$26.66
Location: 14 Prev | Next Part: 144091 *Qty: 1 WINDSHIELD WIPER MOTOR FASTENING BRACKET
-Valid for RHD
$429.08
Location: 15 Prev | Next Part: 62463300 *Qty: 1 R.H. ARM
-Not for RHD
$66.00
Location: 15 Prev | Next Part: 62886300 *Qty: 1 R.H. ARM
-Valid for RHD
Call
Location: 16 Prev | Next Part: 16102314 *Qty: 2 NUT $0.90
Location: 17 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 62463400 *Qty: 1 L.H. ARM
-Not for RHD
Call
Location: 18 Prev | Next Part: 62886400 *Qty: 1 L.H. ARM
-Valid for RHD
$233.89
Location: 19 Prev | Next Part: 62834300 *Qty: 1 PIPE FROM UNION TO R.H. ARM $2.09
Location: 20 Prev | Next Part: 62990900 *Qty: 1 GASKET $2.07
Location: 21 Prev | Next Part: 61528100 *Qty: 1 WINDSHIELD WIPER MOTOR $913.43
Location: 22 Prev | Next Part: 50103100 *Qty: 1 UNION $0.90
Location: 23 Prev | Next Part: 61537500 *Qty: 2 JET FOR WINDOW WASHING
-Valid for RHD
$30.28
Location: 23 Prev | Next Part: 61541500 *Qty: 2 JET FOR WINDOW WASHING
-Not for RHD
$29.21
Location: 24 Prev | Next Part: 61559400 *Qty: 5 CLIP $2.71
Location: 25 Prev | Next Part: 63305700 *Qty: 1 PIPE ON PASSENGER SIDE ARM $12.23
Location: 26 Prev | Next Part: 63305900 *Qty: 2 BRACKET $20.46
Location: 27 Prev | Next Part: 65661700 *Qty: 2 WIPER BRUSH
-Valid for RHD
$63.40
Location: 28 Prev | Next Part: 62663400 *Qty: 2 ARM SMALL COVER $0.90
Location: 29 Prev | Next Part: 63305800 *Qty: 1 PIPE ON PILOT SIDE ARM $6.49
Location: 30 Prev | Next Part: 62886500 *Qty: 1 TWO-BRUSH-ARM FIXING PLATE
-Valid for RHD
Call
Location: 30 Prev | Next Part: 62661200 *Qty: 1 PANTOGRAPH FIXING PLATE
-Not for RHD
$431.67
Location: 31 Prev | Next Part: 62657000 *Qty: 1 SPACER $135.75
Location: 32 Prev | Next Part: 62834200 *Qty: 1 PIPE FROM UNION TO L.H. ARM $0.97

* Quantity shown indicates the number of pieces used in the diagram.
