HAND-BRAKE CONTROL

in cart
Go to Split View

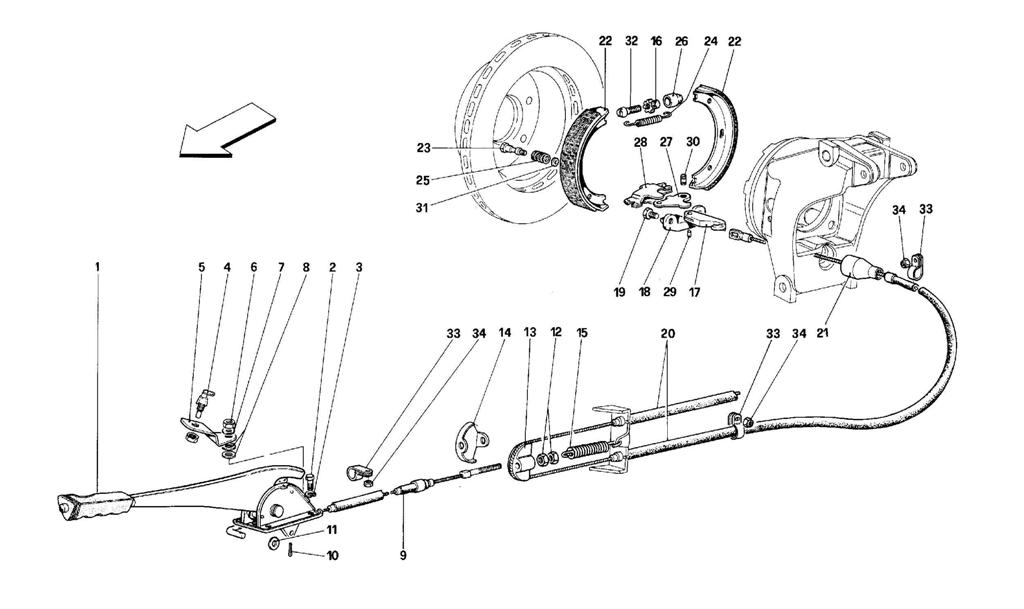

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 154095 *Qty: 1 HAND BRAKE LEVER
-Without lining-
Superseded
Location: - Prev | Next Part: 629965.. *Qty: 1 LINING
-For leather colours see table-
Call
Location: 2 Prev | Next Part: 10902111 *Qty: 4 SCREW Superseded
Location: 3 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 4 Prev | Next Part: 114318 *Qty: 1 SWITCH $23.73
Location: 5 Prev | Next Part: 114320 *Qty: 1 SUPPORT BRACKET $2.89
Location: 6 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 7 Prev | Next Part: 12605270 *Qty: 1 WASHER $0.90
Location: 8 Prev | Next Part: 10519377 *Qty: 2 WASHER-Possible fitting- $0.90
Location: 9 Prev | Next Part: 141219 *Qty: 1 FRONT CABLE $23.59
Location: 10 Prev | Next Part: 10796440 *Qty: 1 SPLIT PIN $0.90
Location: 11 Prev | Next Part: 10519624 *Qty: 1 WASHER $0.90
Location: 12 Prev | Next Part: 16102314 *Qty: 2 NUT $0.90
Location: 13 Prev | Next Part: 118552 *Qty: 1 ANCHORAGE FOR REAR CABLE $3.24
Location: 14 Prev | Next Part: 118553 *Qty: 1 PLATE $54.25
Location: 15 Prev | Next Part: 104895 *Qty: 1 SPRING $8.01
Location: 16 Prev | Next Part: 101286 *Qty: 2 ADJUSTMENT SCREW NUT $13.35
Location: 17 Prev | Next Part: 105270 *Qty: 2 FORK $45.64
Location: 18 Prev | Next Part: 142861 *Qty: 2 HUB HOLDER SMALL BLOCK $238.61
Location: 19 Prev | Next Part: 142856 *Qty: 4 SCREW $5.25
Location: 20 Prev | Next Part: 141220 *Qty: 1 REAR CABLE $72.82
Location: 21 Prev | Next Part: 143938 *Qty: 2 STOP LIMIT FOR HAND BRAKE SHEATH $72.64
Location: 22 Prev | Next Part: 170701 *Qty: 4 COMPLETE BRAKE SHOE $45.89
Location: 23 Prev | Next Part: 156915 *Qty: 2 THREADED PIN
-Length 36 mm-
$77.65
Location: 23 Prev | Next Part: 156916 *Qty: 2 THREADED PIN
-Length 29 mm-
$51.72
Location: 24 Prev | Next Part: 101276 *Qty: 4 RETURN SPRING FOR BRAKE SHOES $12.27
Location: 25 Prev | Next Part: 101277 *Qty: 4 SPRING $0.90
Location: 26 Prev | Next Part: 101279 *Qty: 2 SEAT FOR ADJUSTMENT SCREW $112.14
Location: 27 Prev | Next Part: 101280 *Qty: 2 INNER CONTROL LEVER $25.98
Location: 28 Prev | Next Part: 101281 *Qty: 2 OUTER CONTROL LEVER $6.12
Location: 29 Prev | Next Part: 101282 *Qty: 2 FIXING FORK TO INNER LEVER PIN $1.16
Location: 30 Prev | Next Part: 101283 *Qty: 2 JOINT PIN $3.24
Location: 31 Prev | Next Part: 12625224 *Qty: 4 WASHER $0.90
Location: 32 Prev | Next Part: 101285 *Qty: 2 SCREW $7.02
Location: 33 Prev | Next Part: 10418501 *Qty: 5 BRACKET $4.18
Location: 34 Prev | Next Part: 102741 *Qty: 5 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
