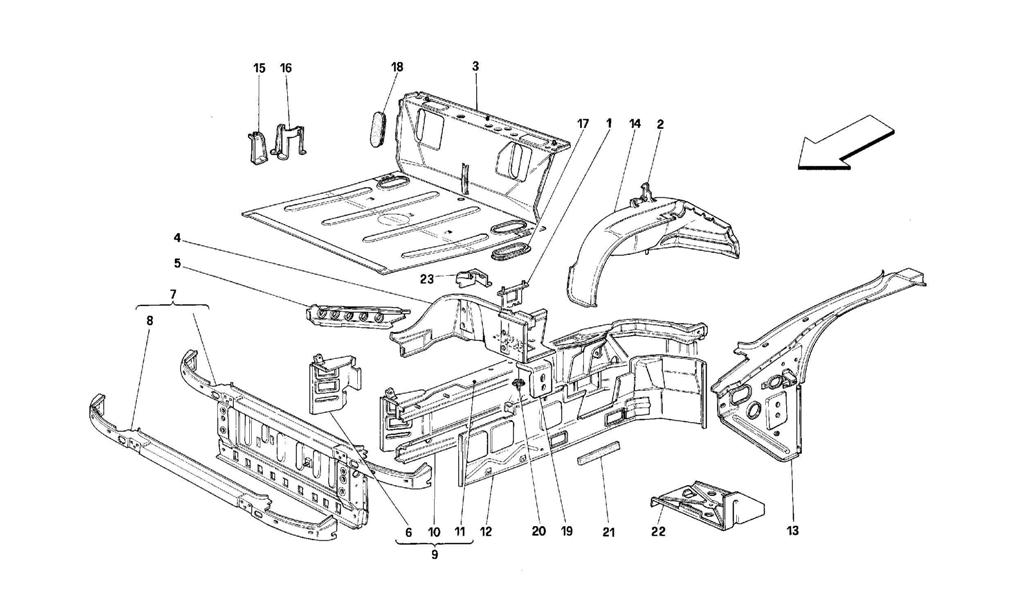

FRONT PART STRUCTURES

Go to Split View

FRONT PART STRUCTURES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62166000 *Qty: 1 BRACKET FOR CONTROL UNIT FIXING $163.15
Location: 2 Prev | Next Part: 62068200 *Qty: 1 R.H. BRACKET FOR FRONT HOOD LOCK $37.20
Location: - Prev | Next Part: 62068300 *Qty: 1 L.H. BRACKET FOR FRONT HOOD LOCK $37.20
Location: 3 Prev | Next Part: 63589300 *Qty: 1 TRUNK BOTTOM
-Not for RHD-
$707.75
Location: - Prev | Next Part: 63589900 *Qty: 1 TRUNK BOTTOM
-Valid for RHD-
$1,047.29
Location: 4 Prev | Next Part: 63537200 *Qty: 1 L.H. LIGHT AROUND FRAMEWORK
-Completed with bracket 1
Call
Location: - Prev | Next Part: 64299200 *Qty: 1 R.H. LIGHT AROUND FRAMEWORK
-Completed with brackets 15 and 16
Call
Location: 5 Prev | Next Part: 63597600 *Qty: 1 REINFORCEMENT FOR FRONT R.H. SIDE STRUCTURE $174.03
Location: - Prev | Next Part: 63597700 *Qty: 1 REINFORCEMENT FOR FRONT L.H. SIDE STRUCTURE $174.03
Location: 6 Prev | Next Part: 62096300 *Qty: 1 FRONT REINFORCEMENT FOR L.H. SIDE STRUCTURE
-Not for CDN
Call
Location: - Prev | Next Part: 63343800 *Qty: 1 FRONT REINFORCEMENT FOR L.H. SIDE STRUCTURE
-Valid for CDN
$41.83
Location: - Prev | Next Part: 62096200 *Qty: 1 FRONT REINFORCEMENT FOR R.H. SIDE STRUCTURE
-Not for CDN
$18.22
Location: - Prev | Next Part: 63343700 *Qty: 1 FRONT REINFORCEMENT FOR R.H. SIDE STRUCTURE
-Valid for CDN
$41.77
Location: 7 Prev | Next Part: 64312800 *Qty: 1 COMPLETE FRONT FRAMEWORK
-Not for CDN
Call
Location: - Prev | Next Part: 63315600 *Qty: 1 COMPLETE FRONT FRAMEWORK
-Valid for CDN
Call
Location: 8 Prev | Next Part: 70000611 *Qty: 1 UPPER CROSS MEMBER FOR FRONT FRAMEWORK Call
Location: 9 Prev | Next Part: 64042500 *Qty: 1 L.H. FRONT LATERAL STRUCTURE ASSEMBLY
-Not for USA, CDN and RHD
$1,724.95
Location: - Prev | Next Part: 63932400 *Qty: 1 L.H. FRONT LATERAL STRUCTURE ASSEMBLY
-Valid for USA
$1,722.76
Location: - Prev | Next Part: 64042600 *Qty: 1 L.H. FRONT LATERAL STRUCTURE ASSEMBLY
-Valid for CDN
$1,607.92
Location: - Prev | Next Part: 63640200 *Qty: 1 L.H. FRONT LATERAL STRUCTURE ASSEMBLY
-Valid for RHD
$2,576.46
Location: - Prev | Next Part: 63618300 *Qty: 1 R.H. FRONT LATERAL STRUCTURE ASSEMBLY
-Not for CDN and RHD
$1,334.71
Location: - Prev | Next Part: 63640300 *Qty: 1 R.H FRONT LATERAL STRUCTURE ASSEMBLY
-Valid for CDN
$1,712.20
Location: - Prev | Next Part: 63640100 *Qty: 1 R.H FRONT LATERAL STRUCTURE ASSEMBLY
-Valid for RHD
$1,366.22
Location: 10 Prev | Next Part: 62083100 *Qty: 1 L.H. LOWER SPRAG-Without reinforcements Call
Location: - Prev | Next Part: 62083000 *Qty: 1 R.H. LOWER SPRAG-Without reinforcements $446.60
Location: 11 Prev | Next Part: 63510300 *Qty: 1 L.H. UPPER SPRAG
-Not for CDN
$136.71
Location: - Prev | Next Part: 63541100 *Qty: 1 L.H. UPPER SPRAG
-Valid for CDN
$235.91
Location: - Prev | Next Part: 62175200 *Qty: 1 R.H. UPPER SPRAG
-Not for CDN
$204.75
Location: - Prev | Next Part: 63347600 *Qty: 1 R.H. UPPER SPRAG
-Valid for CDN
$121.18
Location: 12 Prev | Next Part: 63510100 *Qty: 1 SPRAGS L.H. LATERAL WALL $466.97
Location: - Prev | Next Part: 62182100 *Qty: 1 SPRAGS R.H. LATERAL WALL $277.18
Location: 13 Prev | Next Part: 65290900 *Qty: 1 L.H. FENDER SUPPORT WALL $619.72
Location: - Prev | Next Part: 64899400 *Qty: 1 R.H. FENDER SUPPORT WALL Call
Location: 14 Prev | Next Part: 65335000 *Qty: 1 L.H. FRONT WHEELHOUSE
-Not for RHD
Call
Location: - Prev | Next Part: 63590200 *Qty: 1 L.H. FRONT WHEELHOUSE
-Valid for RHD
$195.46
Location: - Prev | Next Part: 63589700 *Qty: 1 R.H. FRONT WHEELHOUSE
-Not for RHD
$442.27
Location: - Prev | Next Part: 63590100 *Qty: 1 R.H. FRONT WHEELHOUSE
-Valid for RHD
$160.86
Location: 15 Prev | Next Part: 62165400 *Qty: 1 WINDSHIELD WASHER BAG FIXING BRACKET $12.01
Location: 16 Prev | Next Part: 62165600 *Qty: 1 DEHYDRATOR FILTER FIXING BRACKET $12.77
Location: 17 Prev | Next Part: 62678500 *Qty: 2 PLUG $5.09
Location: 18 Prev | Next Part: 62921200 *Qty: 2 PLUG $36.30
Location: 19 Prev | Next Part: 62121200 *Qty: 2 BUMPER FIXING BRACKET $7.49
Location: 20 Prev | Next Part: 63013000 *Qty: 2 PLUG $2.59
Location: 21 Prev | Next Part: 63512800 *Qty: 1 GASKET $3.31
Location: 22 Prev | Next Part: 63381800 *Qty: 1 PLATE FOR BATTERY SUPPORT Call
Location: 23 Prev | Next Part: 63512300 *Qty: 1 BRACKET FOR BATTERY CUT-OUT SWITCH $44.10

* Quantity shown indicates the number of pieces used in the diagram.
