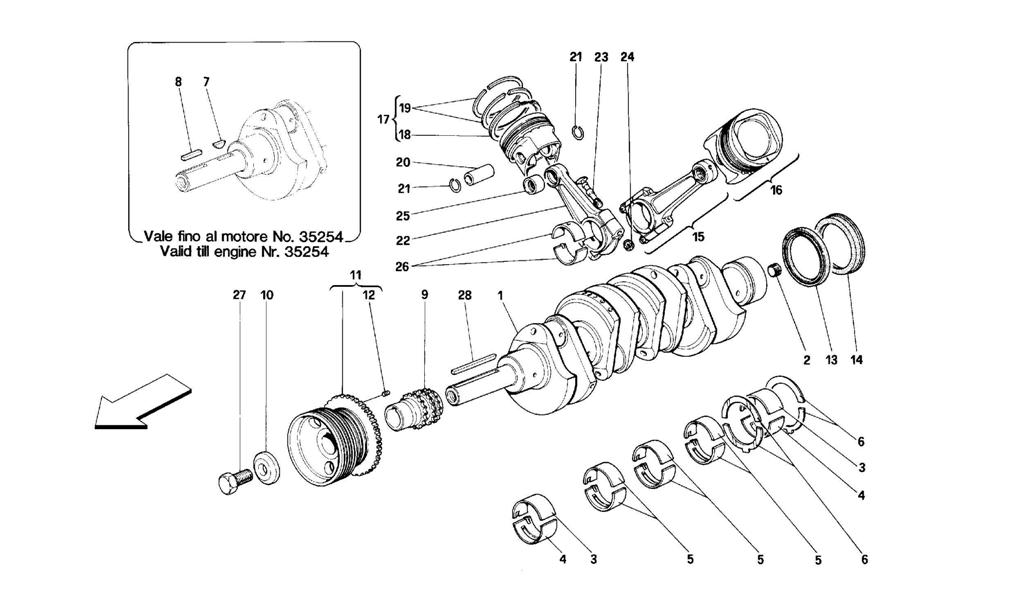

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 138193 *Qty: 1 CRANKSHAFT $2,148.78
Location: 2 Prev | Next Part: 10268450 *Qty: 1 PLUG $4.51
Location: 3 Prev | Next Part: 100118 *Qty: 2 UPPER HALF BEARING $56.17
Location: - Prev | Next Part: 100119 *Qty: 0 UPPER HALF BEARING 1st UNDERSIZE 0.254 mm. $100.61
Location: - Prev | Next Part: 100120 *Qty: 0 UPPER HALF BEARING 2nd UNDERSIZE 0.508 mm. $46.88
Location: 4 Prev | Next Part: 100122 *Qty: 2 LOWER HALF BEARING $48.35
Location: - Prev | Next Part: 100123 *Qty: 0 LOWER HALF BEARING 1st UNDERSIZE 0.254 mm. $123.24
Location: - Prev | Next Part: 100124 *Qty: 0 LOWER HALF BEARING 2nd UNDERSIZE 0.508 mm. $51.39
Location: 5 Prev | Next Part: 104023 *Qty: 6 UPPER AND LOWER HALF BEARING Unavailable
Location: - Prev | Next Part: 153214 *Qty: 0 UPPER AND LOWER HALF BEARING 1st UNDERSIZE 0.254 mm. $640.85
Location: - Prev | Next Part: 104025 *Qty: 0 UPPER AND LOWER HALF BEARING 2nd UNDERSIZE 0.508 mm. $46.59
Location: 6 Prev | Next Part: 100146 *Qty: 2 SHIM $32.61
Location: - Prev | Next Part: 100147 *Qty: 0 SHIM 2nd OVERSIZE 0.250 mm. $15.86
Location: - Prev | Next Part: 113984 *Qty: 0 SHIM 1st OVERSIZE 0.127 mm. $15.01
Location: 7 Prev | Next Part: 10206020 *Qty: 1 KEY
-Till engine Nr. 35254-
$2.02
Location: 8 Prev | Next Part: 14723320 *Qty: 1 KEY
-Till engine Nr. 35254-
$2.02
Location: 9 Prev | Next Part: 132807 *Qty: 1 TIMING GEAR $155.55
Location: 10 Prev | Next Part: 138792 *Qty: 1 WASHER $5.54
Location: 11 Prev | Next Part: 153030 *Qty: 1 TOOTHED WHEEL AND PULLEY $573.29
Location: 12 Prev | Next Part: 10841010 *Qty: 1 DOWEL $0.96
Location: 13 Prev | Next Part: 183581 *Qty: 1 SEAL RING $138.39
Location: 14 Prev | Next Part: 183581 *Qty: 1 SEAL RING $138.39
Location: 15 Prev | Next Part: 156535 *Qty: 8 COMPLETE CONNECTING ROD AND CAP
-Not for USA and CDN-
$88.54
Location: - Prev | Next Part: 109738 *Qty: 8 COMPLETE CONNECTING ROD AND CAP
-Valid for USA and CDN-
$869.67
Location: 16 Prev | Next Part: 157807 *Qty: 8 PISTON WITH RINGS
-Not for USA and CDN-
$1,586.51
Location: - Prev | Next Part: 137980 *Qty: 8 PISTON WITH RINGS
-Valid for USA and CDN-
$1,410.73
Location: 17 Prev | Next Part: 132959 *Qty: 8 PISTONS RINGS SET Unavailable
Location: 18 Prev | Next Part: ------ *Qty: 8 ROF OIL SCRAPING RING (3rd groove)
-Not as spare part-
-With complete series 132959-
Unavailable
Location: 19 Prev | Next Part: ------ *Qty: 16 AC SEAL RING (1st and 2nd groove)
-Not as spare part-
-With complete series 132959-
Unavailable
Location: 20 Prev | Next Part: 157649 *Qty: 8 PIN
-Not for USA and CDN-
$40.69
Location: - Prev | Next Part: 119537 *Qty: 8 PIN
-Valid for USA and CDN-
$85.98
Location: 21 Prev | Next Part: 157873 *Qty: 16 STOP RING
-Not for USA and CDN-
$9.94
Location: - Prev | Next Part: 100174 *Qty: 16 STOP RING
-Valid for USA and CDN-
$4.59
Location: 22 Prev | Next Part: ------ *Qty: 8 CONNECTING ROD WITH CAP
-Not as spare part-
-With the assembly 156535-
Unavailable
Location: 23 Prev | Next Part: 100156 *Qty: 16 CONNECTING ROD TIGHTENING SCREW $22.17
Location: 24 Prev | Next Part: 104011 *Qty: 16 CONNECTING ROD TIGHTENING NUT $13.65
Location: 25 Prev | Next Part: 107100 *Qty: 8 BUSHING $26.66
Location: 26 Prev | Next Part: 106183 *Qty: 16 CONNECTING ROD HALF BEARING $21.52
Location: - Prev | Next Part: 100151 *Qty: 0 CONNECTING ROD HALF BEARING 1st UNDERSIZE 0.254 mm. $71.85
Location: - Prev | Next Part: 100152 *Qty: 0 CONNECTING ROD HALF BEARING 2nd UNDERSIZE 0.508 mm. $101.67
Location: 27 Prev | Next Part: 138793 *Qty: 1 SCREW $99.13
Location: 28 Prev | Next Part: 151289 *Qty: 1 KEY
-Valid from engine Nr. 35255-
$4.19

* Quantity shown indicates the number of pieces used in the diagram.
