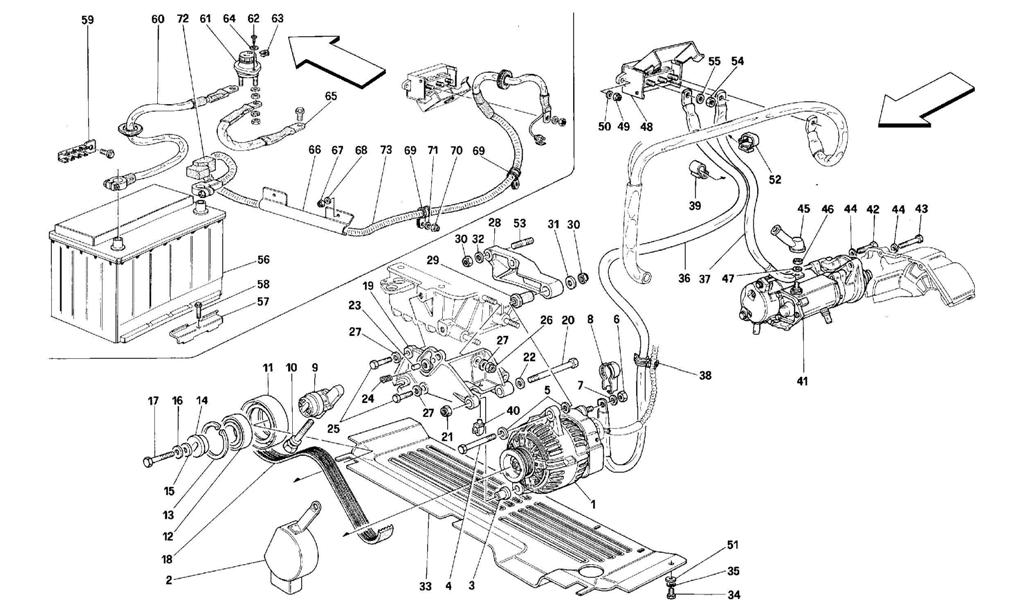

CURRENT GENERATOR - STARTING MOTOR

Go to Split View

CURRENT GENERATOR - STARTING MOTOR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 70000809 *Qty: 1 GENERATOR 105 A. NIPPONDENSO Unavailable
Location: 2 Prev | Next Part: 155684 *Qty: 1 ALTERNATOR SHIELD $76.09
Location: 3 Prev | Next Part: 145358 *Qty: 1 BUSHING $20.08
Location: 4 Prev | Next Part: 15888824 *Qty: 1 SCREW $1.48
Location: 5 Prev | Next Part: 12642501 *Qty: 2 WASHER Unavailable
Location: 6 Prev | Next Part: 16102321 *Qty: 1 NUT $0.90
Location: 7 Prev | Next Part: 12601374 *Qty: 1 WASHER $0.90
Location: 8 Prev | Next Part: 154803 *Qty: 1 PROTECTION BOOT $5.51
Location: 9 Prev | Next Part: 139359 *Qty: 1 BELT TIGHTENING HUB $105.77
Location: 10 Prev | Next Part: 139309 *Qty: 1 ADJUSTMENT SCREW $37.67
Location: 11 Prev | Next Part: 139321 *Qty: 1 BELT TIGHTENING PULLEY $275.01
Location: 12 Prev | Next Part: 177436 *Qty: 1 BEARING $24.80
Location: 13 Prev | Next Part: 11061076 *Qty: 1 SEEGER RING $1.74
Location: 14 Prev | Next Part: 142473 *Qty: 1 BEARING SPACER $23.50
Location: 15 Prev | Next Part: 11190579 *Qty: 1 WASHER $0.90
Location: 16 Prev | Next Part: 138194 *Qty: 1 WASHER $18.89
Location: 17 Prev | Next Part: 15888721 *Qty: 1 SCREW $2.42
Location: 18 Prev | Next Part: 199830 *Qty: 1 GENERATOR CONTROL BELT $20.36
Location: 19 Prev | Next Part: 145357 *Qty: 1 LOWER SUPPORT Unavailable
Location: 20 Prev | Next Part: 114818 *Qty: 1 SCREW $55.44
Location: 21 Prev | Next Part: 102742 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 12641024 *Qty: 1 WASHER $2.16
Location: 23 Prev | Next Part: 125717 *Qty: 1 DOWEL $3.53
Location: 24 Prev | Next Part: 13526070 *Qty: 1 THREADED INSERT Unavailable
Location: 25 Prev | Next Part: 16043621 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 16104411 *Qty: 3 NUT $0.90
Location: 27 Prev | Next Part: 12604479 *Qty: 5 WASHER $4.14
Location: 28 Prev | Next Part: 149627 *Qty: 1 UPPER BRACKET $63.81
Location: 29 Prev | Next Part: 137768 *Qty: 1 ESTENDBLOCK $14.15
Location: 30 Prev | Next Part: 102742 *Qty: 3 NUT $0.90
Location: 31 Prev | Next Part: 12626224 *Qty: 1 WASHER $0.90
Location: 32 Prev | Next Part: 12638601 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 156330 *Qty: 1 ALTERNATOR AND BELTS PROTECTION SHEET Unavailable
Location: 34 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 35 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 36 Prev | Next Part: 153952 *Qty: 1 ALTERNATOR-TERMINAL BOX CONNECTING CABLE $145.99
Location: 37 Prev | Next Part: 153953 *Qty: 1 STARTING MOTOR-TERMINAL BOX CONNECTING CABLE $75.27
Location: 38 Prev | Next Part: 139966 *Qty: 2 CLIP $0.90
Location: 39 Prev | Next Part: 152245 *Qty: 1 CLIP $0.90
Location: 40 Prev | Next Part: 14574287 *Qty: 1 CLIP $14.36
Location: 41 Prev | Next Part: 151852 *Qty: 1 STARTER MOTOR Unavailable
Location: 42 Prev | Next Part: 16044221 *Qty: 2 SCREW Unavailable
Location: 43 Prev | Next Part: 16044721 *Qty: 1 SCREW $0.97
Location: 44 Prev | Next Part: 12601374 *Qty: 3 WASHER $0.90
Location: 45 Prev | Next Part: 124683 *Qty: 1 PROTECTION BOOT $0.90
Location: 46 Prev | Next Part: 147985 *Qty: 1 NUT $0.90
Location: 47 Prev | Next Part: 12625224 *Qty: 1 WASHER $0.90
Location: 48 Prev | Next Part: 170114 *Qty: 1 TERMINAL BOX $48.31
Location: 49 Prev | Next Part: 62790300 *Qty: 2 NUT $0.90
Location: 50 Prev | Next Part: 10519281 *Qty: 2 WASHER Unavailable
Location: 51 Prev | Next Part: 12643724 *Qty: 2 WASHER Superseded
Location: 52 Prev | Next Part: 140798 *Qty: 1 CLIP $0.90
Location: 53 Prev | Next Part: 13449721 *Qty: 2 STUD $1.36
Location: 54 Prev | Next Part: 147985 *Qty: 3 NUT $0.90
Location: 55 Prev | Next Part: 10519624 *Qty: 3 WASHER $0.90
Location: 56 Prev | Next Part: 157496 *Qty: 1 BATTERY 12V-70AH-400A
-As an alternative-
Unavailable
Location: 56 Prev | Next Part: 188066 *Qty: 1 BATTERY 12V-70AH-420A Unavailable
Location: 57 Prev | Next Part: 62573400 *Qty: 1 BRACKET FOR BATTERY FIXING $26.83
Location: 58 Prev | Next Part: 13837411 *Qty: 1 SCREW $0.90
Location: 59 Prev | Next Part: 61682500 *Qty: 4 MASS CABLE CONNECTING BRACKET $20.17
Location: 60 Prev | Next Part: 155067 *Qty: 1 BATTERY-CUT OUT SWITCH CONNECTING CABLE $143.80
Location: 61 Prev | Next Part: 139607 *Qty: 1 CUT-OUT SWITCH Unavailable
Location: 62 Prev | Next Part: 15688275 *Qty: 2 SCREW $0.90
Location: 63 Prev | Next Part: 61067800 *Qty: 2 BRACKET $0.90
Location: 64 Prev | Next Part: 12637806 *Qty: 2 WASHER $0.90
Location: 65 Prev | Next Part: 155068 *Qty: 1 CUT OUT SWITCH-MASS CONNECTING CABLE $63.81
Location: 66 Prev | Next Part: 63510500 *Qty: 1 CABLE PROTECTION $19.24
Location: 67 Prev | Next Part: 102948 *Qty: 2 NUT Superseded
Location: 68 Prev | Next Part: 10519424 *Qty: 2 WASHER Unavailable
Location: 69 Prev | Next Part: 10441790 *Qty: 2 BRACKET $0.90
Location: 70 Prev | Next Part: 102948 *Qty: 2 NUT Superseded
Location: 71 Prev | Next Part: 10519424 *Qty: 2 WASHER Unavailable
Location: 72 Prev | Next Part: 144727 *Qty: 1 PROTECTION CAP $28.06
Location: 73 Prev | Next Part: 151337 *Qty: 1 BATTERY TO TERMINAL BOX CONNECTING CABLE $372.47

* Quantity shown indicates the number of pieces used in the diagram.
