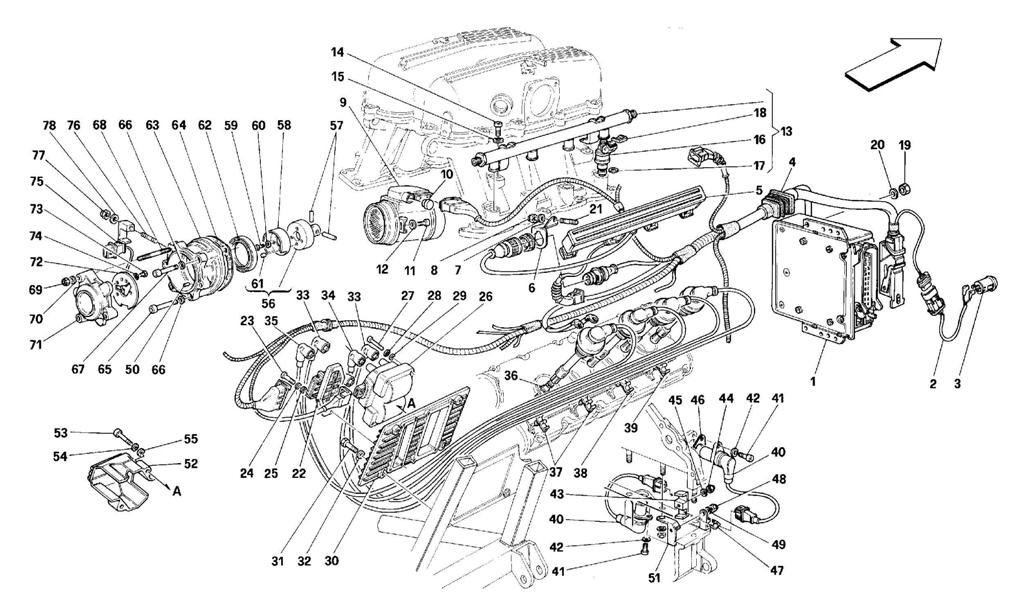

AIR INJECTION - IGNITION

Location Part # Quantity* Description Price Add To Cart
1 156536 2 IGNITION/SUPPLY CONTROL SYSTEM Unavailable
2 146196 1 TESTER PUSH CABLE
-Valid for USA-
-M2.7 ONLY- 		Unavailable
3 145810 1 TESTER PUSH
-Valid for USA-
-M2.7 ONLY- 		$15.20
4 139465 2 RUBBER BOOT $206.96
5 142842 2 CONNECTOR CONTAINER $203.63
6 145477 1 R.H. BRACKET $1.97
- 145476 1 L.H. BRACKET Unavailable
7 10519424 2 WASHER Unavailable
8 102948 2 NUT Superseded
9 136374 2 AIR INDICATOR Unavailable
10 144092 2 PLUG
-Not for catalyzed cars- 		$13.24
- 140190 2 PLUG
-Valid for catalyzed cars- 		$20.46
11 10373677 4 SCREW $18.17
12 12639978 4 WASHER $2.11
13 137326 2 INJECTOR COMPLETE TUBE $2,215.72
14 20293306 4 SCREW Superseded
15 12601374 4 WASHER $0.90
16 130968 8 ELECTRO-INJECTOR $505.00
17 133902 16 GASKET $7.59
18 144763 8 INJECTOR RETAINING SPRING $3.35
19 102741 4 NUT $0.90
20 14496424 4 WASHER Superseded
21 11499921 2 STUD Superseded
22 137511 2 POWER MODULE $375.00
23 13274672 4 SCREW Unavailable
24 149951 4 WASHER Superseded
25 10519377 4 WASHER Unavailable
26 138255 2 IGNITION COIL $293.31
26 138255D 2 COIL DECAL $5.00
27 13274972 8 SCREW $3.02
28 149951 8 WASHER Superseded
29 10519377 8 WASHER Unavailable
30 139434 2 COIL AND MODULE SUPPORT $105.88
31 10902724 8 SCREW Unavailable
32 10519424 8 WASHER Unavailable
33 188911 4 CABLE (FOR SPARK PLUGS 1, 2, 7, 8)
-With extension BOSCH- 		$537.18
- 188914 4 CABLE (FOR SPARK PLUGS 1, 2, 7, 8)
-With extension BERU- 		$517.02
34 188912 2 CABLE (FOR SPARK PLUGS 3,6)
-With extension BOSCH- 		$517.02
- 188962 2 CABLE (FOR SPARK PLUGS 3,6)
-With extension BERU- 		$453.83
35 188913 2 CABLE (FOR SPARK PLUGS 4,5)
-With extension BOSCH- 		$517.02
- 188915 2 CABLE (FOR SPARK PLUGS 4,5)
-With extension BERU- 		$466.07
36 154490 8 SPARK PLUG
-Not for USA and CDN- 		Superseded
- 150180 8 SPARK PLUG
-Valid for USA and CDN- 		Superseded
37 119402 4 4-HOUSING CLIP $4.24
38 119403 2 3-HOUSING CLIP $17.70
39 119404 2 2-HOUSING CLIP $5.46
40 130975 2 ANGULAR SPEED SENSOR $174.09
41 14305121 2 SCREW Unavailable
42 12601274 2 WASHER $0.90
43 139244 1 SUPPORT Unavailable
44 15896470 1 NUT Unavailable
45 11199279 1 WASHER Unavailable
46 140621 2 THICKNESS
-Possible fitting 		Unavailable
47 129544 1 CLIP $2.58
48 102948 1 NUT Superseded
49 12648201 1 WASHER Unavailable
50 10331010 1 PIN Unavailable
51 145550 1 BRACKET $13.54
52 150631 2 PROTECTION $16.30
53 13274872 4 SCREW Unavailable
54 149951 4 WASHER Superseded
55 10519377 4 WASHER Unavailable
56 133378 1 COUPLING ON THE CAM SHAFT $516.70
57 132355 2 PIN $103.31
58 ------ 1 TIMER
-Not as spare part-
-With complete phase sensor- 		Unavailable
59 10374721 3 SCREW Unavailable
60 12604070 3 WASHER Unavailable
61 10486110 1 PIN $17.95
62 149917 1 RING FOR CAMSHAFT $85.69
63 137508 1 PHASE SENSOR SUPPORT $125.80
64 150076 1 SUPPORT GASKET $23.26
65 14305920 2 SCREW Unavailable
66 12604279 3 WASHER Unavailable
67 14305821 1 SCREW Unavailable
68 13539824 3 STUD $15.89
69 169180 3 NUT Unavailable
70 10519377 3 WASHER Unavailable
71 137510 1 SMALL COVER $74.12
72 146312 1 COMPLETE PHASE SENSOR Unavailable
73 14418131 2 SCREW Unavailable
74 12600479 2 WASHER Superseded
75 144805 1 SUPPORT Unavailable
76 11001221 1 STUD $3.05
77 15896470 1 NUT Unavailable
78 11199279 1 WASHER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
