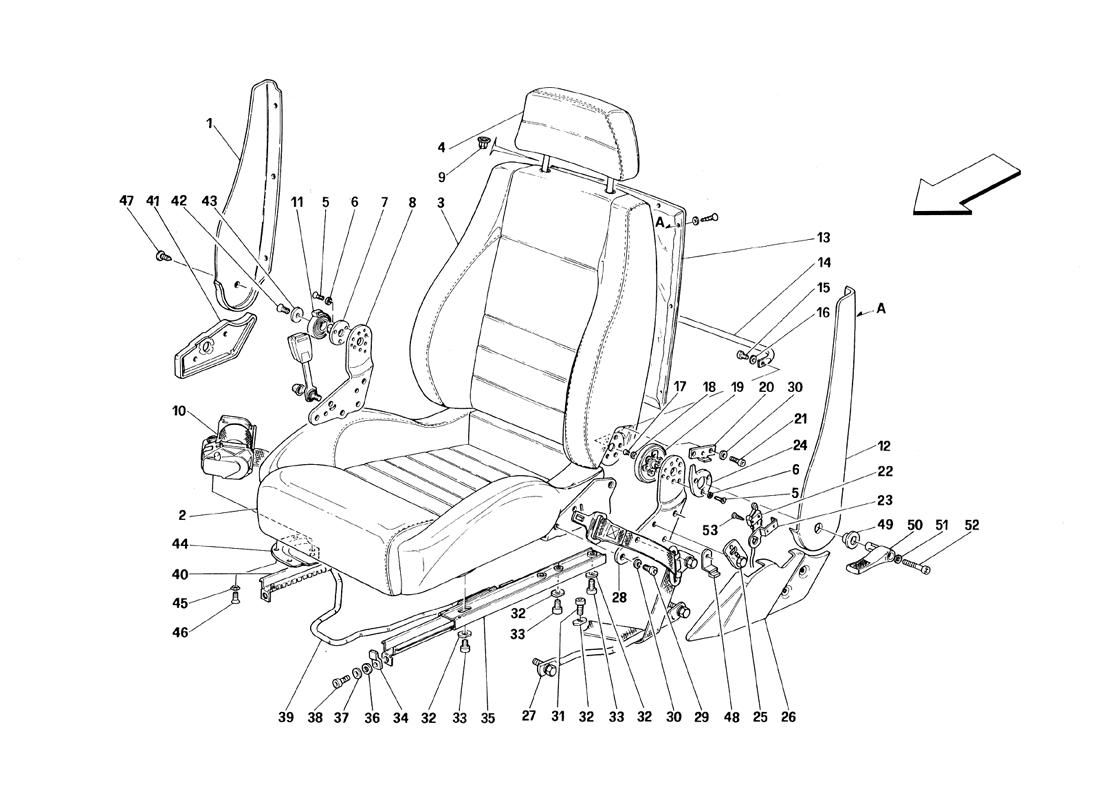

SEATS AND SAFETY BELTS - NOT FOR CARS WITH PASSIVE SAFETY BELTS - VALID TILL CAR ASS. NR. 5278

Go to Split View

SEATS AND SAFETY BELTS - NOT FOR CARS WITH PASSIVE SAFETY BELTS - VALID TILL CAR ASS. NR. 5278

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 627523.. *Qty: 1 L.H. SEAT WITH GUIDES Call
Location: - Prev | Next Part: 627522.. *Qty: 1 R.H. SEAT WITH GUIDES Call
Location: 1 Prev | Next Part: 627537.. *Qty: 1 L.H. INNER BACK SEAT JOINT-COVER Call
Location: 1 Prev | Next Part: 627536.. *Qty: 1 L.H. LINING Call
Location: 1 Prev | Next Part: 627533.. *Qty: 1 R.H. INNER BACK SEAT JOINT-COVER Call
Location: 1 Prev | Next Part: 627534.. *Qty: 1 R.H. LINING Call
Location: 2 Prev | Next Part: 629959.. *Qty: 2 PILLOW LINING Call
Location: 3 Prev | Next Part: 629960.. *Qty: 2 BACK SEAT LINING Call
Location: 4 Prev | Next Part: 626892.. *Qty: 2 LINED HEADREST Call
Location: 4 Prev | Next Part: 626888.. *Qty: 2 LINING Call
Location: 5 Prev | Next Part: 63622600 *Qty: 6 SCREW $2.56
Location: 6 Prev | Next Part: 12606876 *Qty: 12 WASHER Call
Location: 7 Prev | Next Part: 62652000 *Qty: 2 BUSH FOR SPRING $22.38
Location: 8 Prev | Next Part: 62595000 *Qty: 2 R.H. JOINT FASTENING PLATE $41.77
Location: 9 Prev | Next Part: 62738000 *Qty: 4 ABDOMINAL BELTS COMPLETE SERIES $1,916.69
Location: 9 Prev | Next Part: 20058905 *Qty: 4 BUSH FOR HEADREST Call
Location: 10 Prev | Next Part: 62741900 *Qty: 1 L.H. COMPLETE ABDOMINAL BELT $312.46
Location: 10 Prev | Next Part: 62732400 *Qty: 1 R.H. COMPLETE ABDOMINAL BELT $334.77
Location: 11 Prev | Next Part: 62651900 *Qty: 2 SPRING FOR BACK SEAT $19.15
Location: 12 Prev | Next Part: 627539.. *Qty: 1 L.H OUTER BACK-SEAT JOINT-COVER Call
Location: 12 Prev | Next Part: 627534.. *Qty: 1 LH. LINING Call
Location: 12 Prev | Next Part: 627536.. *Qty: 1 R.H. LINING Call
Location: 12 Prev | Next Part: 627535.. *Qty: 1 R.H. OUTER BACK-SEAT JOINT-COVER Call
Location: 13 Prev | Next Part: 627541.. *Qty: 2 BACK-SEAT REAR SIDE LINING Call
Location: 14 Prev | Next Part: 62651800 *Qty: 2 JOINT CONNECTION Superseded
Location: 15 Prev | Next Part: 14302931 *Qty: 4 SCREW $0.99
Location: 16 Prev | Next Part: 10615276 *Qty: 4 WASHER Call
Location: 17 Prev | Next Part: 63325100 *Qty: 12 SCREW $3.98
Location: 18 Prev | Next Part: 10615470 *Qty: 12 WASHER Call
Location: 19 Prev | Next Part: 62652200 *Qty: 1 R.H. SIDE BACK-SEAT ADJUSTER Call
Location: 19 Prev | Next Part: 62652400 *Qty: 1 L.H. SIDE BACK-SEAT ADJUSTER Call
Location: 20 Prev | Next Part: 62887300 *Qty: 4 PLATE FOR BACK-SEAT STOP $21.24
Location: 21 Prev | Next Part: 40294308 *Qty: 8 SCREW $5.17
Location: 22 Prev | Next Part: 146486 *Qty: 2 MICRO-SWITCH $45.55
Location: 23 Prev | Next Part: 62750100 *Qty: 1 L.H. MICRO-SWITCH SUPPORT $7.22
Location: 23 Prev | Next Part: 62750200 *Qty: 1 R.H. MICRO-SWITCH SUPPORT $7.22
Location: 24 Prev | Next Part: 62955800 *Qty: 1 L.H. BACK SEAT LOCK $43.27
Location: 24 Prev | Next Part: 62955700 *Qty: 1 R.H. BACK-SEAT LOCK $10.87
Location: 25 Prev | Next Part: 63382500 *Qty: 1 FIXING COMPLETE BRACKETS $97.50
Location: 26 Prev | Next Part: 627552.. *Qty: 1 L.H. OUTER PILLOW JOINT-COVER Call
Location: 26 Prev | Next Part: 627549.. *Qty: 1 R.H. OUTER PILLOW JOINT-COVER Call
Location: 27 Prev | Next Part: - *Qty: 2 BELT TIGHTENER
Not as spare part With assembly 62732400 and 62741 900 -Part. 10
Call
Location: 28 Prev | Next Part: 62594900 *Qty: 2 L.H. JOINT FASTENING PLATE $41.77
Location: 29 Prev | Next Part: 40294308 *Qty: 12 SCREW $5.17
Location: 30 Prev | Next Part: 12601374 *Qty: 8 WASHER $0.90
Location: 31 Prev | Next Part: 40294308 *Qty: 4 SCREW $5.17
Location: 32 Prev | Next Part: 63395300 *Qty: 16 ELASTIC PLATE Call
Location: 33 Prev | Next Part: 40294308 *Qty: 12 SCREW $5.17
Location: 34 Prev | Next Part: 62844500 *Qty: 4 SMALL PLATE $37.07
Location: 35 Prev | Next Part: 62655300 *Qty: 2 L.H. GUIDE $89.82
Location: 36 Prev | Next Part: 14496506 *Qty: 4 WASHER $0.90
Location: 37 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 38 Prev | Next Part: 14306334 *Qty: 4 SCREW Superseded
Location: 39 Prev | Next Part: 62752800 *Qty: 1 LH. GUIDES CONTROL FORK $52.77
Location: 39 Prev | Next Part: 62750500 *Qty: 1 R.H. GUIDES CONTROL FORK $52.77
Location: 40 Prev | Next Part: 62655200 *Qty: 2 R.H. GUIDE $100.81
Location: 41 Prev | Next Part: 627546.. *Qty: 1 L.H. INNER PILLOW JOINT-COVER Call
Location: 41 Prev | Next Part: 627544.. *Qty: 1 R.H. INNER PILLOW JOINT-COVER Call
Location: 42 Prev | Next Part: 14441127 *Qty: 2 SCREW $0.90
Location: 43 Prev | Next Part: 12624177 *Qty: 2 WASHER $0.90
Location: 44 Prev | Next Part: 62778200 *Qty: 1 L.H. ROLLING DEVICE FASTENING BRACKET $17.14
Location: 44 Prev | Next Part: 62592800 *Qty: 1 R.H. ROLLING DEVICE FASTENING BRACKET $17.14
Location: 45 Prev | Next Part: 12606876 *Qty: 6 WASHER Call
Location: 46 Prev | Next Part: 14441327 *Qty: 6 SCREW $2.27
Location: 47 Prev | Next Part: 14592587 *Qty: 2 FASTENING PUSH-BUTTON $0.90
Location: 48 Prev | Next Part: 62750300 *Qty: 1 L.H. BRACKET $4.87
Location: 48 Prev | Next Part: 62750400 *Qty: 1 R.H. BRACKET $4.87
Location: 49 Prev | Next Part: 62752500 *Qty: 2 BUSH $5.70
Location: 50 Prev | Next Part: 62743800 *Qty: 1 L.H. SEAT RELEASE HANDLE Superseded
Location: 50 Prev | Next Part: 62743900 *Qty: 1 R.H. SEAT RELEASE HANDLE Superseded
Location: 51 Prev | Next Part: 149951 *Qty: 2 WASHER Superseded
Location: 52 Prev | Next Part: 14358926 *Qty: 2 SCREW $0.90
Location: 53 Prev | Next Part: 15639801 *Qty: 4 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
