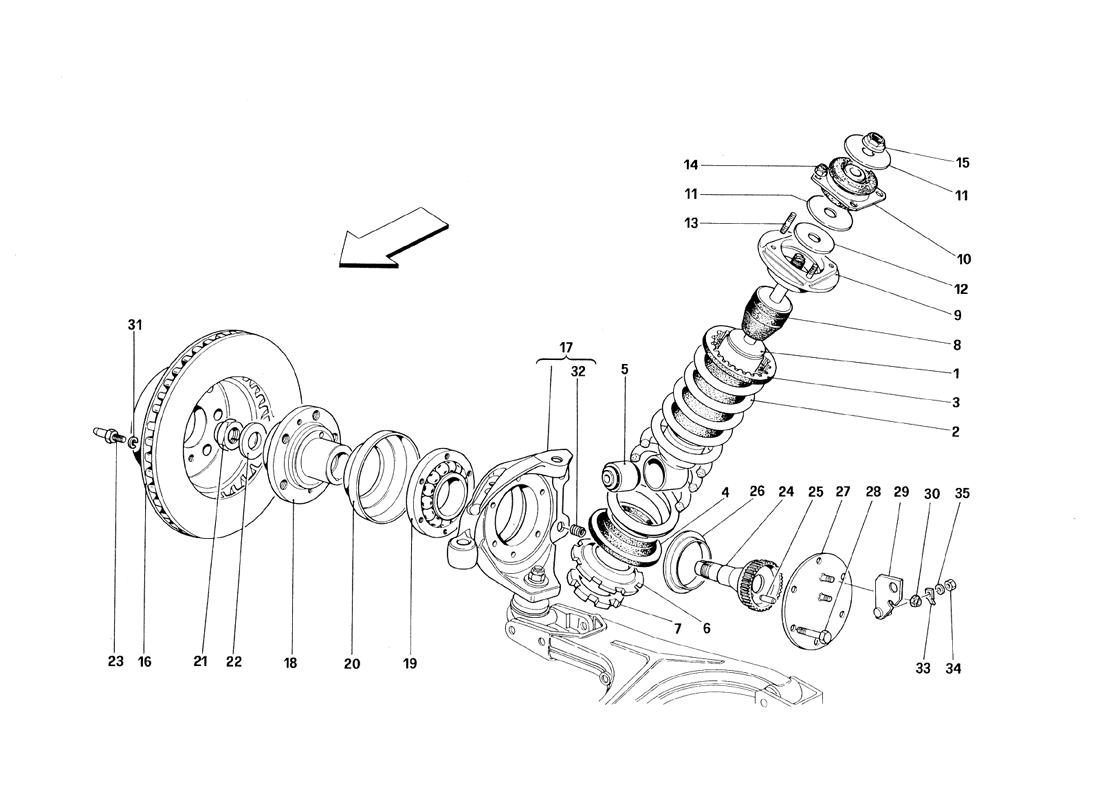

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC - VALID TILL CAR ASS. NR. 8798

Back to 348 (1989-1992) components
Go to Split View
Previous Table
Next Table

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC - VALID TILL CAR ASS. NR. 8798

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 141857 *Qty: 2 SHOCK ABSORBER
Sold in pair Valid for spring 142474 Nol as spare part now Replaced by 146290 		Superseded
Location: 1 Prev | Next Part: 146290 *Qty: 2 SHOCK ABSORBER
Sold in pair Valid for spring 148786 and 151881 		Call
Location: 2 Prev | Next Part: 142474 *Qty: 2 SPRING
Sold in pair Valid for shock absorber 141857 Nol as spare part now Replaced by 148786 		Superseded
Location: 2 Prev | Next Part: 148786 *Qty: 2 SPRING
Sold in pair Valid for shock absorber 146290 Not for USA SPYDER; for TB/TS I and D only valid till car Ass. Nr. 13559 		$137.33
Location: 2 Prev | Next Part: 151881 *Qty: 2 SPRING
Sold in pair Valid for shock absorber 146290 Valid for USA SPYDER; for TB/TS I and D only valid from car Ass. Nr. 13560 		$540.17
Location: 3 Prev | Next Part: 113582 *Qty: 2 UPPER SPACER $106.64
Location: 4 Prev | Next Part: 113581 *Qty: 2 LOWER SPACER $11.25
Location: 5 Prev | Next Part: 130516 *Qty: 2 ESTENDBLOCK $32.04
Location: 6 Prev | Next Part: 155086 *Qty: 2 SPACER $86.00
Location: 7 Prev | Next Part: 141860 *Qty: 2 RING NUT $65.00
Location: 8 Prev | Next Part: 139448 *Qty: 2 PAD $26.95
Location: 9 Prev | Next Part: 151547 *Qty: 2 SPRING RETAINING CUP $42.45
Location: 10 Prev | Next Part: 114812 *Qty: 2 HYPERBLOCK $119.08
Location: 11 Prev | Next Part: 114815 *Qty: 4 WASHER $1.74
Location: 12 Prev | Next Part: 147143 *Qty: 2 SPACER $15.75
Location: 13 Prev | Next Part: 13543324 *Qty: 8 STUD $3.53
Location: 14 Prev | Next Part: 16104125 *Qty: 8 NUT Superseded
Location: 15 Prev | Next Part: 137826 *Qty: 2 NUT $3.70
Location: 16 Prev | Next Part: 131750 *Qty: 2 FRONT BRAKE DISC Call
Location: 17 Prev | Next Part: 138516 *Qty: 1 LH. STEERING KNUCKLE $1,976.27
Location: 17 Prev | Next Part: 138515 *Qty: 1 R.H. STEERING KNUCKLE $2,640.27
Location: 18 Prev | Next Part: 131738 *Qty: 2 FRONT WHEEL HUB $1,408.73
Location: 19 Prev | Next Part: 112799 *Qty: 2 BEARING Call
Location: 20 Prev | Next Part: 112823 *Qty: 2 SMALL SUMP Call
Location: 21 Prev | Next Part: 124642 *Qty: 2 NUT $27.76
Location: 22 Prev | Next Part: 124464 *Qty: 2 WASHER $27.40
Location: 23 Prev | Next Part: 104370 *Qty: 4 CENTERING PIN $0.90
Location: 24 Prev | Next Part: 139671 *Qty: 2 PIN WITH TOOTHED WHEEL $744.14
Location: 25 Prev | Next Part: 13909870 *Qty: 2 PIN $0.90
Location: 26 Prev | Next Part: 131279 *Qty: 2 PROTECTION RING Call
Location: 27 Prev | Next Part: 139664 *Qty: 2 COVER $13.86
Location: 28 Prev | Next Part: 14238931 *Qty: 12 SCREW $4.49
Location: 29 Prev | Next Part: 139693 *Qty: 1 L.H. SUPPORT $25.73
Location: 29 Prev | Next Part: 139692 *Qty: 1 R.H. SUPPORT $28.35
Location: 30 Prev | Next Part: 12575411 *Qty: 4 NUT Superseded
Location: 31 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 32 Prev | Next Part: 133771 *Qty: 4 THREADED INSERT $4.07
Location: 33 Prev | Next Part: 143405 *Qty: 2 FASTON TONGUE $0.90
Location: 34 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 35 Prev | Next Part: 149951 *Qty: 2 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
