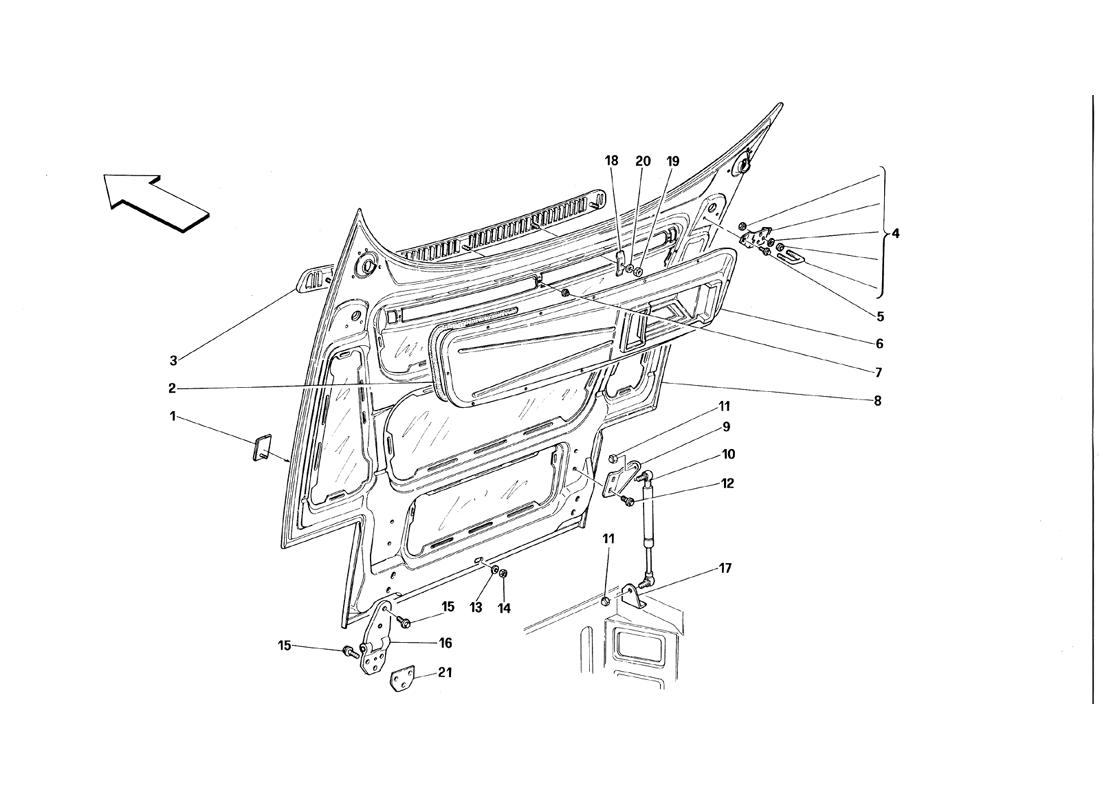

FRONT HOOD

Go to Split View

FRONT HOOD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62673100 *Qty: 1 FRONT ORNAMENT $230.46
Location: 2 Prev | Next Part: 63001600 *Qty: 1 GASKET $6.21
Location: 3 Prev | Next Part: 62115300 *Qty: 1 AIR INTAKE PLATE BADGE Call
Location: 4 Prev | Next Part: 62086000 *Qty: 2 COMPLETE HOOD CLOSING STRIKER Superseded
Location: 5 Prev | Next Part: 13836371 *Qty: 4 SCREW $1.45
Location: 6 Prev | Next Part: 62120300 *Qty: 1 AIR CONVEYOR
Not for RHD
$251.39
Location: 6 Prev | Next Part: 62142500 *Qty: 1 AIR CONVEYOR
Valid for RHD
$316.80
Location: 7 Prev | Next Part: 14203480 *Qty: 3 NUT $0.90
Location: 8 Prev | Next Part: 63501300 *Qty: 1 FRONT HOOD BONNET $3,271.03
Location: 9 Prev | Next Part: 62921300 *Qty: 1 L.H. BRACKET $40.83
Location: 9 Prev | Next Part: 62059300 *Qty: 1 R.H. BRACKET $40.83
Location: 10 Prev | Next Part: 62175300 *Qty: 2 HOOD SHOCK ABSORBER $29.95
Location: 11 Prev | Next Part: 16104411 *Qty: 4 NUT $0.90
Location: 12 Prev | Next Part: 13836371 *Qty: 4 SCREW $1.45
Location: 13 Prev | Next Part: 10519377 *Qty: 1 WASHER $0.90
Location: 14 Prev | Next Part: 12574115 *Qty: 1 NUT Superseded
Location: 15 Prev | Next Part: 13836721 *Qty: 10 SCREW $0.90
Location: 16 Prev | Next Part: 62062600 *Qty: 2 FRONT HOOD BONNET HINGE $414.95
Location: 17 Prev | Next Part: 62096500 *Qty: 1 L.H. BRACKET $41.41
Location: 17 Prev | Next Part: 62096400 *Qty: 1 R.H. BRACKET $41.41
Location: 18 Prev | Next Part: 63337900 *Qty: 2 BRACKET $44.72
Location: 19 Prev | Next Part: 14048615 *Qty: 2 NUT $0.90
Location: 20 Prev | Next Part: 14496377 *Qty: 2 WASHER $0.99
Location: 21 Prev | Next Part: 62757500 *Qty: 2 ZINCFOIL $7.48

* Quantity shown indicates the number of pieces used in the diagram.
