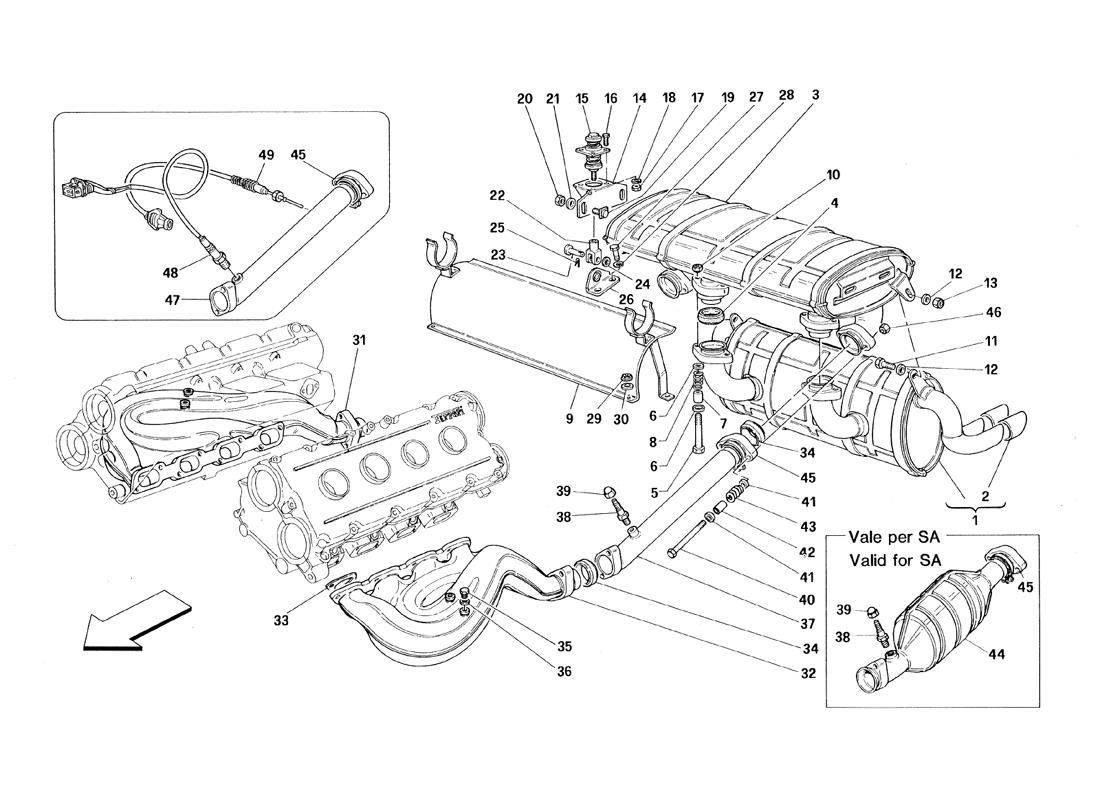

EXHAUST SYSTEM - NOT FOR CATALYTIC VEHICLES

Location Part # Quantity* Description Price Add To Cart
1 136278 1 REAR SILENCER $2,296.36
2 136894 4 TERMINAL COVER $59.62
3 136277 1 FRONT MUFFLER $1,058.42
4 154984 2 GASKET $25.96
5 137431 4 SCREW $24.34
6 112761 8 WASHER Superseded
7 114749 4 SPACER $5.16
8 111743 4 SPRING $16.46
9 62663300 1 EXHAUST PROTECTION PANEL $1,348.24
10 114748 4 NUT $21.29
11 16043421 2 SCREW Superseded
12 112761 4 WASHER Superseded
13 114748 2 NUT $21.29
14 136877 2 BRACKET $389.74
15 139180 2 PAD Unavailable
16 10977624 8 SCREW Unavailable
17 15896470 8 NUT Unavailable
18 127493 8 WASHER $0.90
19 137534 4 SCREW $31.95
20 114748 4 NUT $21.29
21 112761 4 WASHER Superseded
22 10007871 2 FORK $22.41
23 10050811 2 PIN Superseded
24 10519624 2 WASHER Unavailable
25 10734301 2 SPLIT PIN Unavailable
26 145741 2 SMALL PLATE $114.23
27 16043221 4 SCREW Unavailable
28 127496 4 WASHER $0.90
29 14058411 5 NUT Superseded
30 12644421 5 WASHER Superseded
31 136275 1 R.H. EXHAUST MANIFOLD $1,900.49
32 136276 1 L.H. EXHAUST MANIFOLD Unavailable
33 138076 8 GASKET $14.64
34 154984 4 GASKET $25.96
35 110860 4 PLUG $19.77
36 10298460 4 GASKET $0.90
37 141006 2 EXTENSION BETWEEN MANIFOLD AND SILENCER
Not for de-catalyzed cars 		Unavailable
38 144240 2 UNION $51.74
39 150595 2 NUT $1.16
40 137431 8 SCREW $24.34
41 112761 16 WASHER Superseded
42 114749 8 SPACER $5.16
43 111743 8 SPRING $16.46
44 143871 2 EXHAUST PRE-MUFFLER
Valid for SA 		$575.28
45 141874 2 FLANGED STUB PIPE Unavailable
46 114748 8 NUT $21.29
47 149633 2 EXTENSION BETWEEN MANIFOLD AND SILENCER
Valid for de-catalyzed cars 		$380.32
48 142514 2 OXYGEN SENSOR
Valid for de-catalyzed cars 		$448.00
49 144270 2 THERMOCOUPLE
Valid for de-catalyzed cars 		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
