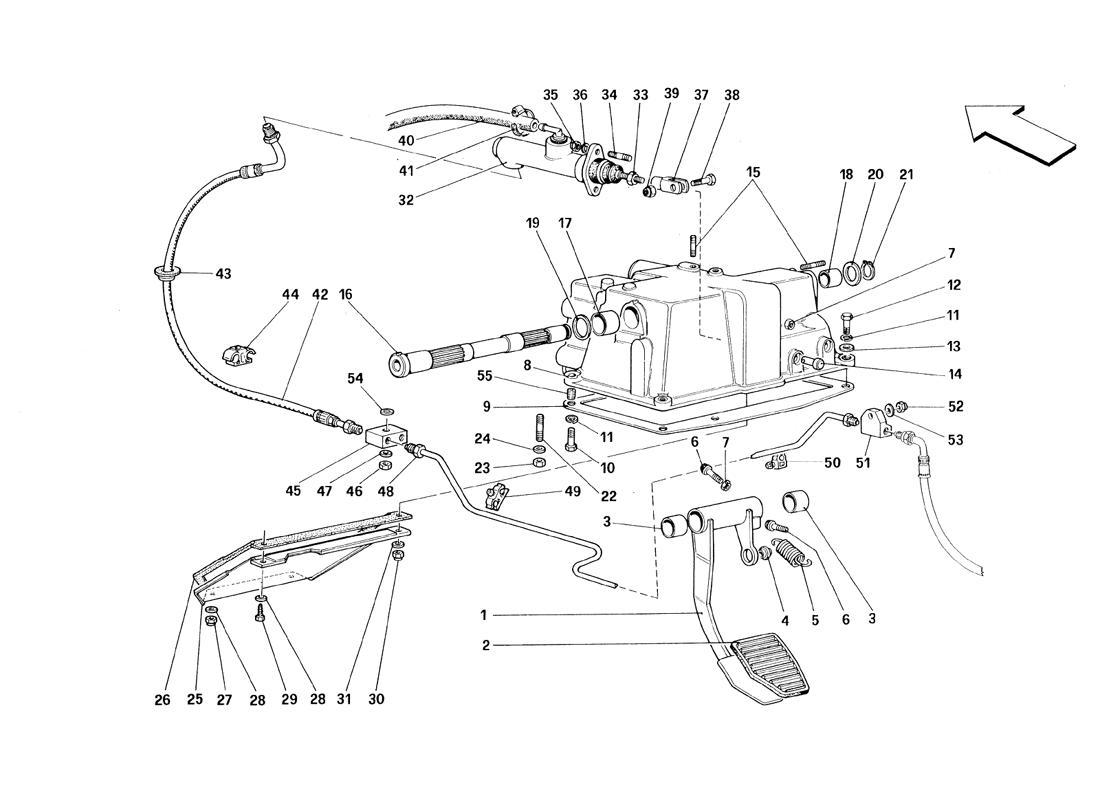

CLUTCH RELEASE CONTROL - NOT FOR RHD

chevron-left
chevron-right
Go to Split View view-grid

CLUTCH RELEASE CONTROL - NOT FOR RHD

Location Part # Quantity* Description Price Add To Cart
1 139391 1 CLUTCH PEDAL
Valid till car Nr. 90916 		$1,042.97
1 149293 1 CLUTCH PEDAL
Valid from car Nr. 90917 		$282.80
2 132818 1 PEDAL RUBBER
Valid for pedal 139391 		Unavailable
2 149295 1 PEDAL RUBBER
Valid for pedal 149293 		$119.22
3 103163 2 BUSHING $8.51
4 109407 1 JOINT $75.90
5 101305 1 SPRING Unavailable
6 144011 2 PIN Unavailable
7 147690 1 PIN $9,971.34
7 148260 1 COMPLETE PEDAL SUPPORT
Valid till car Ass. Nr. 1869 		$1,365.28
7 16102311 2 NUT Superseded
8 - 1 PEDAL SUPPORT
Not as spare part With complete pedal support 		Unavailable
9 129615 1 GASKET $18.96
10 16043321 2 SCREW
Valid till car Ass. Nr. 1869 		$0.90
11 127496 4 WASHER
Valid till car Ass. Nr. 1869 		$0.90
12 16043721 2 SCREW
Valid till car Ass. Nr. 1869 		Superseded
13 10519624 2 WASHER Unavailable
14 129612 1 PIN $3.19
15 11500121 4 STUD Superseded
16 129613 1 PEDALS SUPPORT PIN $1,939.87
17 101314 1 BUSHING $5.62
18 112153 1 BUSHING $4.85
19 112125 1 SPACER WASHER $2.72
20 112131 1 WASHER
mm. 1.3 Possible fitting 		Unavailable
20 112130 1 WASHER
mm. 1.2 Possible fitting 		Unavailable
20 112128 1 WASHER
mm. 1.0 Possible fitting 		$44.17
20 112127 1 WASHER
mm. 0.9 Possible fitting 		Unavailable
20 112129 1 WASHER
mm.1.1 Possible fitting 		Unavailable
21 11066676 1 SEEGER RING Unavailable
22 13516821 4 STUD
Valid from car Ass. Nr. 1870 		Superseded
23 16104111 4 NUT
Valid from car Ass. Nr. 1870 		Superseded
24 14499401 4 WASHER
Valid from car Ass. Nr. 1870 		Unavailable
25 62097800 1 PEDAL SUPPORT PROTECTION
Valid till car Ass. Nr. 1869 		$31.81
25 62877200 1 PEDAL SUPPORT PROTECTION
Valid from car Ass. Nr. 1870 		$431.35
26 62694400 1 GASKET $13.44
27 12574211 2 NUT Superseded
28 12646601 3 WASHER Unavailable
29 15925601 1 SCREW Unavailable
30 16104111 1 NUT Superseded
31 14499401 1 WASHER Unavailable
32 123416 1 CLUTCH PUMP Superseded
33 16102311 1 NUT Superseded
34 13516821 2 STUD Superseded
35 133215 2 NUT Superseded
36 12638501 2 WASHER Superseded
37 10248271 1 FORK Unavailable
38 130926 1 SCREW $9.58
39 16104411 1 NUT $2.33
40 151845 1 PIPE $69.00
41 12179190 2 SCREW COLLAR Superseded
42 140669 1 HOSE $236.54
43 105369 1 CABLE GROMMET $30.55
44 141699 1 CLIP $1.28
45 139375 1 UNION $74.00
46 12575411 1 NUT Superseded
47 12639701 1 WASHER Unavailable
48 140666 1 INTERMEDIATE TUBE $139.85
49 141522 9 CLIP Unavailable
50 141521 2 CLIP Unavailable
51 139471 1 UNION $48.29
52 12575411 1 NUT Superseded
53 12639701 1 WASHER Unavailable
54 143041 1 SPACER Unavailable
55 13525770 2 THREADED INSERT Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
