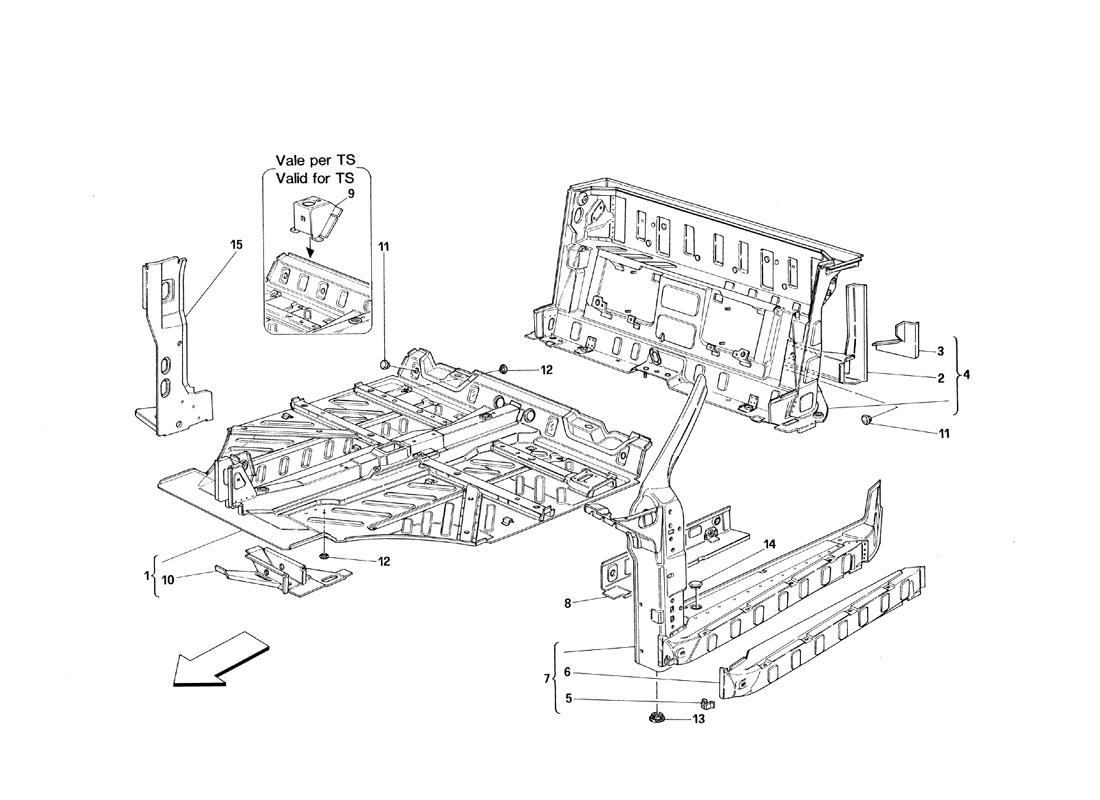

CENTRAL PART STRUCTURES

Go to Split View

CENTRAL PART STRUCTURES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63336300 *Qty: 1 COMPLETE FLOOR
Not for RHD Valid from car Nr. 94910 TS and Nr. 94269 USA TS
$13,291.80
Location: 1 Prev | Next Part: 63313100 *Qty: 1 COMPLETE FLOOR
Valid for RHD Valid till car Nr. 94909 TS
$974.86
Location: 1 Prev | Next Part: 63336500 *Qty: 1 COMPLETE FLOOR
Valid for RHD Valid from car Nr. 94910 TS
$695.79
Location: 1 Prev | Next Part: 70000607 *Qty: 1 COMPLETE FLOOR
Not for RHD Valid till car Nr. 94909 TS and Nr. 94268 USA TS
$875.62
Location: 2 Prev | Next Part: 62091800 *Qty: 1 MOVING FRAME FIXING CROSS MEMBER
Without brackets 3
$526.02
Location: 3 Prev | Next Part: 62807400 *Qty: 1 REINFORCEMENT L.H. BRACKET $13.25
Location: 3 Prev | Next Part: 62642900 *Qty: 1 REINFORCEMENT R.H. BRACKET $10.25
Location: 4 Prev | Next Part: 63231400 *Qty: 1 COMPLETE REAR FRAMEWORK
Valid for RHD Valid for TB Valid till car Nr. 94909 TS
$1,009.49
Location: 4 Prev | Next Part: 63227700 *Qty: 1 COMPLETE REAR FRAMEWORK
Valid for catalyzed cars Valid for SA - Not for USA and RHD Valid for TB Valid till car Nr. 94909 TS
$5,902.44
Location: 4 Prev | Next Part: 62889300 *Qty: 1 COMPLETE REAR FRAMEWORK
Valid for USA Valid for TB Valid till car Nr. 94268 TS
$1,618.42
Location: 4 Prev | Next Part: 62171700 *Qty: 1 COMPLETE REAR FRAMEWORK
Valid for M.Y. 89 RHD
$759.08
Location: 4 Prev | Next Part: 62091600 *Qty: 1 COMPLETE REAR FRAMEWORK
Valid for M.Y. 89 Not for catalyzed cars Not for RHD and SA
$1,587.46
Location: 4 Prev | Next Part: 63573400 *Qty: 1 COMPLETE REAR FRAMEWORK
valid for USA Valid for TS valid from car nr. 94263
$1,209.49
Location: 4 Prev | Next Part: 63573200 *Qty: 1 COMPLETE REAR FRAMEWORK
Valid for RHD Valid for TS Valid from car Nr. 94910
$1,197.84
Location: 4 Prev | Next Part: 63572700 *Qty: 1 COMPLETE REAR FRAMEWORK
Valid for catalyzed cars Valid for SA - Not for USA and RHD Valid for TS Valid from car Nr. 94910
$5,241.28
Location: 5 Prev | Next Part: 62055300 *Qty: 2 BRACKET $29.09
Location: 6 Prev | Next Part: 62077400 *Qty: 1 EXTERNAL COVERING FOR L.H. SIDE MEMBER $571.31
Location: 6 Prev | Next Part: 62077300 *Qty: 1 EXTERNAL COVERING FOR R.H. SIDE MEMBER $571.31
Location: 7 Prev | Next Part: 62088600 *Qty: 1 COMPLETE FRAMEWORK FOR L.H. DOOR $869.57
Location: 7 Prev | Next Part: 62088500 *Qty: 1 COMPLETE FRAMEWORK FOR R.H. DOOR Call
Location: 8 Prev | Next Part: 62182000 *Qty: 1 INTERNAL PLATE FOR L.H. SIDE MEMBER $31.68
Location: 8 Prev | Next Part: 62181900 *Qty: 1 INTERNAL PLATE FOR R.H. SIDE MEMBER
Valid for USA till car Ass. Nr. 6500
$31.68
Location: 8 Prev | Next Part: 63310800 *Qty: 1 INTERNAL PLATE FOR R.H. SIDE MEMBER
Valid for USA Valid from car Ass. Nr. 6501
$46.80
Location: 9 Prev | Next Part: 62913400 *Qty: 1 L.H. BRACKET
Valid for TS Valid till car Nr. 94909 TS and Nr. 94268 USA TS
$27.90
Location: 9 Prev | Next Part: 62990400 *Qty: 1 R.H. BRACKET
Valid for TS Valid till car Nr. 94909 TS and Nr. 94268 USA TS
Call
Location: 10 Prev | Next Part: 62164000 *Qty: 1 R.H. PLATE WITH REINFORCEMENT $41.55
Location: 10 Prev | Next Part: 62164100 *Qty: 1 L.H. PLATE WITH REINFORCEMENT $41.55
Location: 11 Prev | Next Part: 14506987 *Qty: 10 PLUG $3.90
Location: 12 Prev | Next Part: 14506587 *Qty: 1 PLUG $0.90
Location: 13 Prev | Next Part: 14506787 *Qty: 4 D. 20 PLUG $0.90
Location: 13 Prev | Next Part: 62446300 *Qty: 4 D. 30 PLUG $19.72
Location: 14 Prev | Next Part: 14507987 *Qty: 2 PLUG $6.50
Location: 15 Prev | Next Part: 62080200 *Qty: 1 L.H. PILLAR BOX-TYPE $68.47
Location: 15 Prev | Next Part: 62080100 *Qty: 1 R.H. PILLAR BOX-TYPE $150.50

* Quantity shown indicates the number of pieces used in the diagram.
