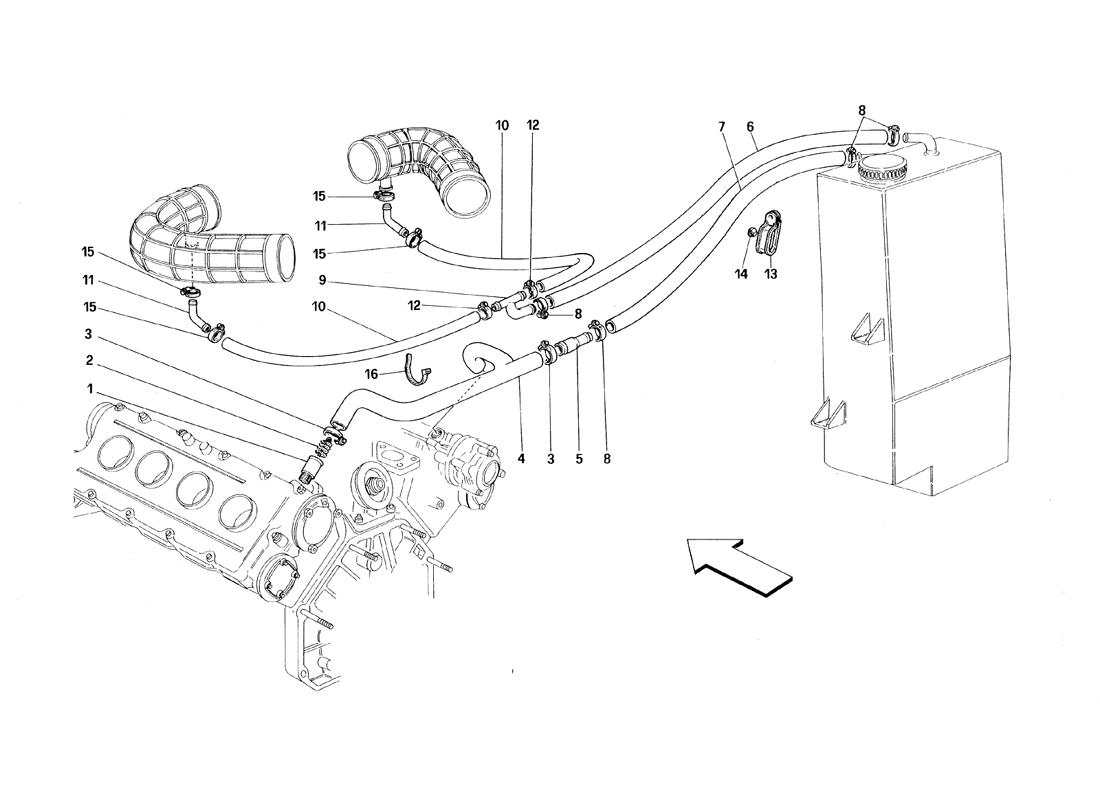

BLOW - BY SYSTEM
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| 1 | 119236 | 2 | UNION | Unavailable | |
| 2 | 119237 | 2 | SPLASH GUARD | Unavailable | |
| 3 | 12180290 | 3 | SCREW COLLAR | Unavailable | |
| 4 | 139525 | 1 | VENT HEADS CONNECTION PIPE | $649.11 | |
| 5 | 140369 | 1 | UNION | $78.18 | |
| 6 | 143051 | 1 | PIPE | Superseded | |
| 7 | 139342 | 1 | PIPE | Superseded | |
| 8 | 13000390 | 4 | SCREW COLLAR | Unavailable | |
| 9 | 140096 | 1 | UNION | $49.04 | |
| 10 | 140360 | 2 | PIPE TO THE SLEEVE | Unavailable | |
| 11 | 140338 | 2 | UNION | $13.93 | |
| 12 | 13000190 | 2 | SCREW COLLAR | $0.90 | |
| 13 | 61712600 | 1 | BRACKET | $2.27 | |
| 14 | 12575411 | 1 | NUT | Superseded | |
| 15 | 12179490 | 4 | SCREW COLLAR | Superseded | |
| 16 | 145855 | 2 | CLAMP | Unavailable |
* Quantity shown indicates the number of pieces used in the diagram.
