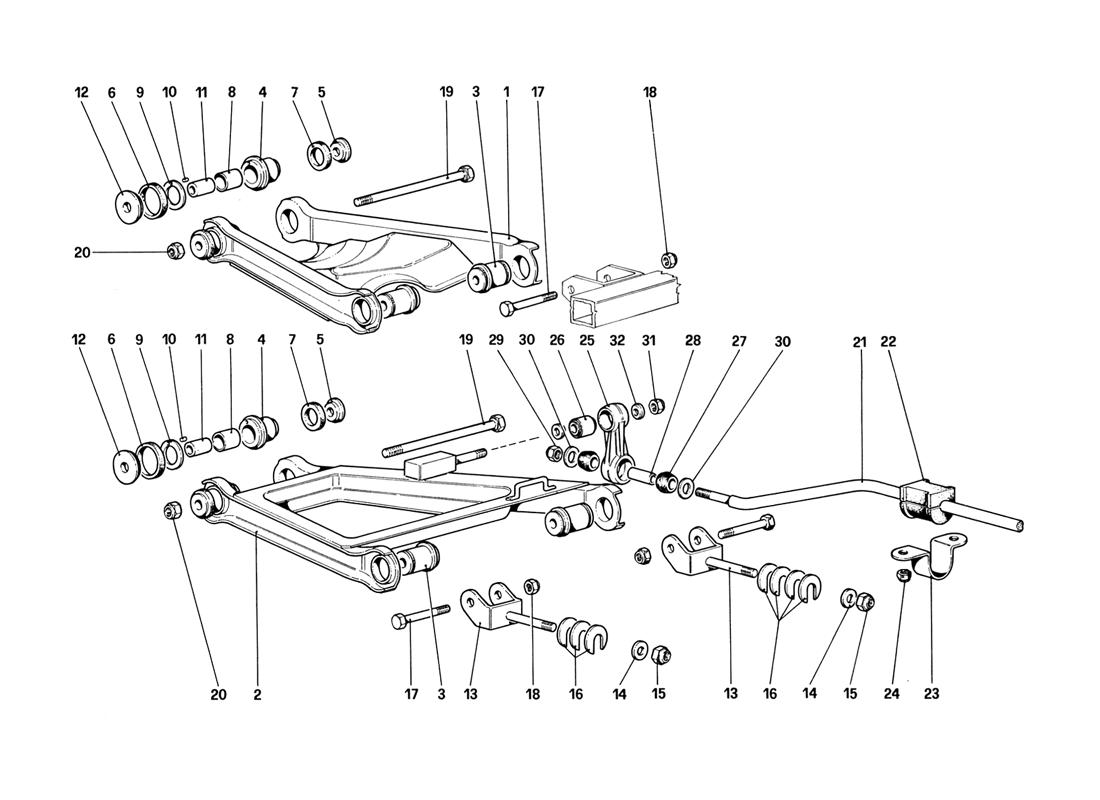

REAR SUSPENSION - WISHBONES (UP TO CAR NO. 76625)

Go to Split View

REAR SUSPENSION - WISHBONES (UP TO CAR NO. 76625)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 104422 *Qty: 1 Upper lever, left $936.53
Location: 1 Prev | Next Part: 104423 *Qty: 1 Upper lever, right $968.52
Location: 2 Prev | Next Part: 129218 *Qty: 1 Lower lever, right - For RHD $197.81
Location: 2 Prev | Next Part: 127868 *Qty: 1 Lower lever, right - For LHD $913.43
Location: 3 Prev | Next Part: 103170 *Qty: 8 Bushing Superseded
Location: 4 Prev | Next Part: 105340 *Qty: 8 Outer bushing $46.80
Location: 5 Prev | Next Part: 105341 *Qty: 8 Sealing washer for bushing $15.75
Location: 6 Prev | Next Part: 105342 *Qty: 8 Grommet $11.73
Location: 7 Prev | Next Part: 105343 *Qty: 8 Grommet $15.93
Location: 8 Prev | Next Part: 100787 *Qty: 8 Bushing $6.21
Location: 9 Prev | Next Part: 101009 *Qty: 8 Thrust washer $11.46
Location: 10 Prev | Next Part: 100796 *Qty: 8 Dowel $4.84
Location: 11 Prev | Next Part: 109905 *Qty: 8 Spacer $47.50
Location: 12 Prev | Next Part: 109902 *Qty: 8 Shim $36.34
Location: 13 Prev | Next Part: 114236 *Qty: 4 Lower fork Call
Location: 14 Prev | Next Part: 101041 *Qty: 4 Washer $0.90
Location: 15 Prev | Next Part: 12575821 *Qty: 4 Nut Superseded
Location: 16 Prev | Next Part: 107342 *Qty: 14 Ditto, thickness 3,25 mm. $1.04
Location: 16 Prev | Next Part: 101039 *Qty: 14 Ditto, thickness 1 mm. Call
Location: 16 Prev | Next Part: 107338 *Qty: 14 Ditto, thickness 1,5 mm. $2.00
Location: 16 Prev | Next Part: 107339 *Qty: 14 Ditto, thickness 2 mm. Call
Location: 16 Prev | Next Part: 107341 *Qty: 14 Ditto, thickness 3 mm. $2.00
Location: 16 Prev | Next Part: 107340 *Qty: 14 Shim for lower fork, thickness 2,5 mm. (possible fitting) $2.00
Location: 17 Prev | Next Part: 106419 *Qty: 8 Bolt $20.52
Location: 18 Prev | Next Part: 16105121 *Qty: 8 Nut Superseded
Location: 19 Prev | Next Part: 105344 *Qty: 4 Bolt $49.50
Location: 20 Prev | Next Part: 16105121 *Qty: 4 Nut Superseded
Location: 21 Prev | Next Part: 108841 *Qty: 1 Stabilizer rod $398.97
Location: 22 Prev | Next Part: 109010 *Qty: 2 Pad for rod $22.36
Location: 23 Prev | Next Part: 104417 *Qty: 2 Rod retainer $24.61
Location: 24 Prev | Next Part: 12575621 *Qty: 4 Nut Superseded
Location: 25 Prev | Next Part: 108432 *Qty: 2 Rod link $301.63
Location: 26 Prev | Next Part: 100773 *Qty: 2 Silentblok for link $34.12
Location: 27 Prev | Next Part: 108244 *Qty: 4 Grommet $13.41
Location: 28 Prev | Next Part: 108294 *Qty: 2 Spacer tube $97.11
Location: 29 Prev | Next Part: 16104421 *Qty: 2 Nut Superseded
Location: 30 Prev | Next Part: 107409 *Qty: 4 Washer $2.62
Location: 31 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 32 Prev | Next Part: 108913 *Qty: 4 Shim Call

* Quantity shown indicates the number of pieces used in the diagram.
