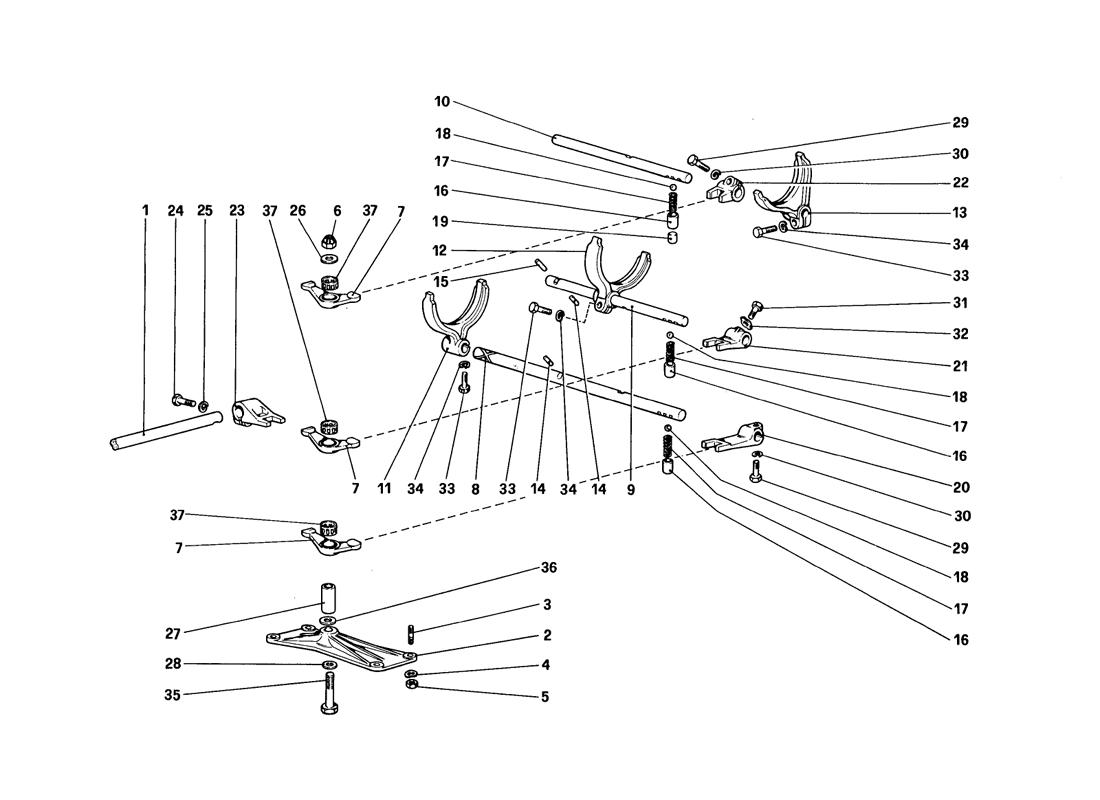

INSIDE GEARBOX CONTROLS

Go to Split View

INSIDE GEARBOX CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 109767 *Qty: 1 Shaft for lever Unavailable
Location: 2 Prev | Next Part: 114864 *Qty: 1 Support $105.20
Location: 4 Prev | Next Part: 11197771 *Qty: 4 Washer Superseded
Location: 5 Prev | Next Part: 15896211 *Qty: 4 Nut Superseded
Location: 6 Prev | Next Part: 16109221 *Qty: 1 Nut $1.07
Location: 7 Prev | Next Part: 115249 *Qty: 3 Rocker arm Unavailable
Location: 8 Prev | Next Part: 120923 *Qty: 1 Control rod, 1st speed and reverse $860.18
Location: 9 Prev | Next Part: 120924 *Qty: 1 Control rod, 2nd - 3rd speeds $221.95
Location: 10 Prev | Next Part: 120925 *Qty: 1 Control rod, 4th - 5th speeds $214.55
Location: 11 Prev | Next Part: 115341 *Qty: 1 Fork, 1st speed and reverse $431.20
Location: 12 Prev | Next Part: 115349 *Qty: 1 Fork, 2nd - 3rd speeds $503.66
Location: 13 Prev | Next Part: 115348 *Qty: 1 Fork, 4th - 5th speeds $503.66
Location: 14 Prev | Next Part: 115355 *Qty: 2 Stop roller $10.77
Location: 15 Prev | Next Part: 115356 *Qty: 1 Stop roller $10.99
Location: 16 Prev | Next Part: 115376 *Qty: 3 Bush $47.90
Location: 17 Prev | Next Part: 100750 *Qty: 3 Spring $1.60
Location: 18 Prev | Next Part: 101612 *Qty: 3 Ball $1.23
Location: 19 Prev | Next Part: 115357 *Qty: 1 Spacer $4.23
Location: 20 Prev | Next Part: 115358 *Qty: 1 Control fork for 1st speed and reverse $194.67
Location: 21 Prev | Next Part: 115359 *Qty: 1 Control fork for 2nd - 3rd speeds $183.01
Location: 22 Prev | Next Part: 115360 *Qty: 1 Control fork for 4th - 5th peeds $171.55
Location: 23 Prev | Next Part: 106213 *Qty: 1 Lever $219.93
Location: 24 Prev | Next Part: 16043631 *Qty: 1 Bolt $0.90
Location: 25 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 26 Prev | Next Part: 114865 *Qty: 1 Washer $1.80
Location: 27 Prev | Next Part: 115374 *Qty: 1 Bush $12.63
Location: 28 Prev | Next Part: 108281 *Qty: 1 Washer $1.35
Location: 29 Prev | Next Part: 16043631 *Qty: 2 Bolt $0.90
Location: 30 Prev | Next Part: 106852 *Qty: 2 Washer Superseded
Location: 31 Prev | Next Part: 104279 *Qty: 1 Bolt $27.85
Location: 32 Prev | Next Part: 103587 *Qty: 1 Plate $8.63
Location: 33 Prev | Next Part: 16043631 *Qty: 3 Bolt $0.90
Location: 34 Prev | Next Part: 106852 *Qty: 3 Washer Superseded
Location: 35 Prev | Next Part: 15541121 *Qty: 1 Bolt $4.90
Location: 36 Prev | Next Part: 114865 *Qty: 1 Shim $1.80
Location: 37 Prev | Next Part: 115373 *Qty: 3 Roller cage $3.76

* Quantity shown indicates the number of pieces used in the diagram.
