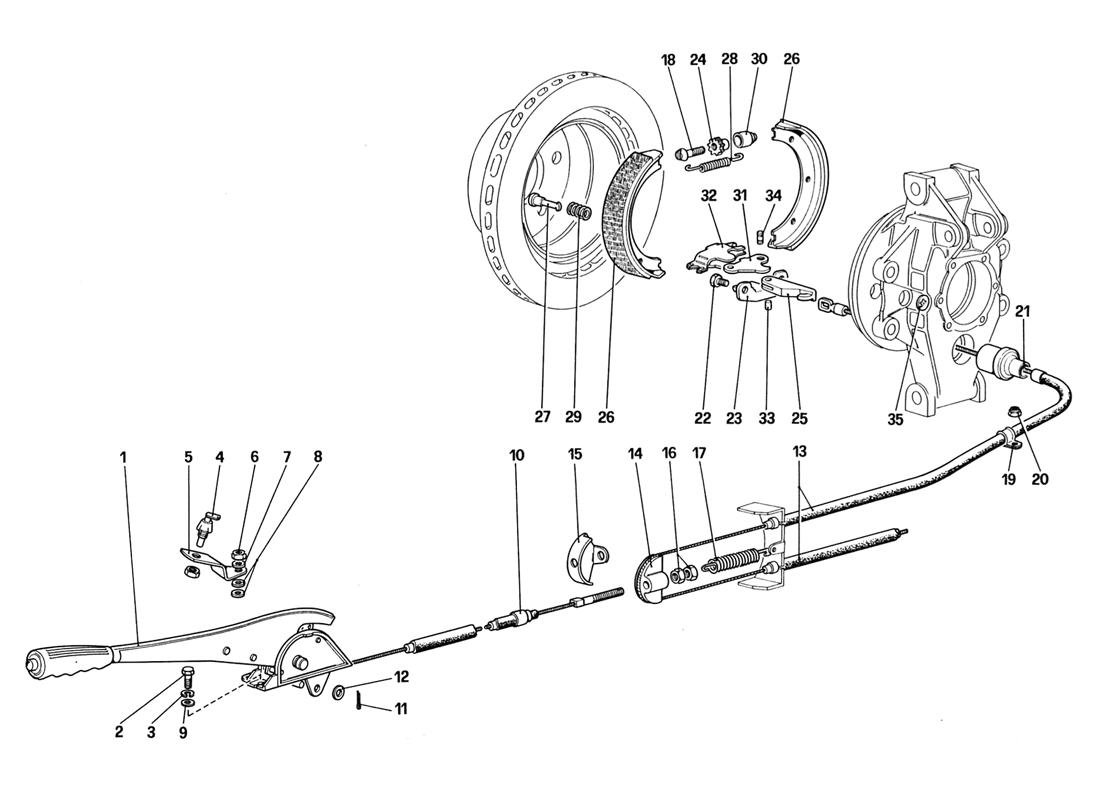

HAND - BRAKE CONTROL

Go to Split View

HAND - BRAKE CONTROL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 126679 *Qty: 1 Hand brake lever - For LHD $455.67
Location: 1 Prev | Next Part: 126681 *Qty: 1 Hand brake lever - For RHD $297.13
Location: 3 Prev | Next Part: 106850 *Qty: 3 Washer Superseded
Location: 4 Prev | Next Part: 114318 *Qty: 1 Switch $23.73
Location: 5 Prev | Next Part: 114320 *Qty: 1 Bracket fixing switch $2.89
Location: 6 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 7 Prev | Next Part: 12605270 *Qty: 1 Washer $0.90
Location: 8 Prev | Next Part: 10519301 *Qty: 2 Washer (Possible fitting) $0.90
Location: 9 Prev | Next Part: 14496501 *Qty: 1 Washer $0.90
Location: 10 Prev | Next Part: 127522 *Qty: 1 Front cable $23.31
Location: 11 Prev | Next Part: 10796401 *Qty: 1 Split pin Superseded
Location: 12 Prev | Next Part: 10519601 *Qty: 1 Shim Superseded
Location: 13 Prev | Next Part: 136414 *Qty: 1 Rear cable - For LHD - From car no. 76627 $213.39
Location: 13 Prev | Next Part: 127521 *Qty: 1 Rear cable - For LHD - Until car no. 76626 $109.90
Location: 13 Prev | Next Part: 139544 *Qty: 1 Rear cable - For RHD - From car no. 76627 $114.04
Location: 13 Prev | Next Part: 129114 *Qty: 1 Rear cable - For RHD - Until car no. 76626 $42.12
Location: 14 Prev | Next Part: 118552 *Qty: 1 Anchorage for rear cable $3.24
Location: 15 Prev | Next Part: 118553 *Qty: 1 Cable retaining plate $54.25
Location: 16 Prev | Next Part: 16102311 *Qty: 2 Locknut Superseded
Location: 17 Prev | Next Part: 104895 *Qty: 1 Return spring $8.01
Location: 18 Prev | Next Part: 101285 *Qty: 2 Screw $7.02
Location: 19 Prev | Next Part: 10115701 *Qty: 2 Clamp $0.90
Location: 19 Prev | Next Part: 10418501 *Qty: 3 Clamp $4.18
Location: 20 Prev | Next Part: 12575411 *Qty: 5 Nut Superseded
Location: 21 Prev | Next Part: 105735 *Qty: 2 Fork protective cap - After exhaustion use no. 132129 Superseded
Location: 22 Prev | Next Part: 106242 *Qty: 4 Screw $3.93
Location: 23 Prev | Next Part: 106243 *Qty: 2 Small block Call
Location: 24 Prev | Next Part: 101286 *Qty: 2 Nut $13.35
Location: 25 Prev | Next Part: 105270 *Qty: 2 Control fork for inner lever $45.64
Location: 26 Prev | Next Part: 101270 *Qty: 4 Brake shoe - With Amianthus Superseded
Location: 26 Prev | Next Part: 134847 *Qty: 4 Brake shoe - Without Amianthu $41.22
Location: 27 Prev | Next Part: 101275 *Qty: 4 Pin for spring $17.22
Location: 28 Prev | Next Part: 101276 *Qty: 4 Return spring for shoes $12.27
Location: 29 Prev | Next Part: 101277 *Qty: 4 Spring $0.90
Location: 30 Prev | Next Part: 101279 *Qty: 2 Seat for sdjust screw $112.14
Location: 31 Prev | Next Part: 101280 *Qty: 2 Inner control lever $25.98
Location: 32 Prev | Next Part: 101281 *Qty: 2 Outer control lever $6.12
Location: 33 Prev | Next Part: 101282 *Qty: 2 Pin fixing fork to inner le $1.16
Location: 34 Prev | Next Part: 101283 *Qty: 2 Pin for joint $3.24
Location: 35 Prev | Next Part: 101284 *Qty: 4 Plate for spring $3.53

* Quantity shown indicates the number of pieces used in the diagram.
