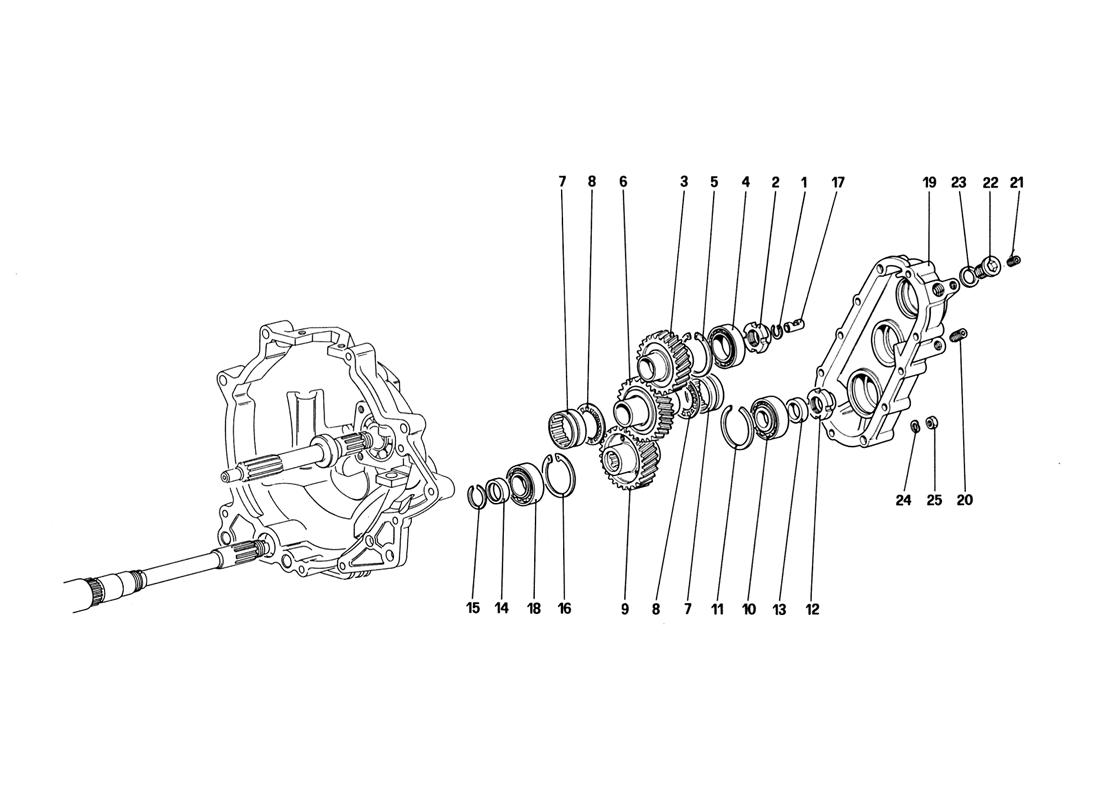

GEARBOX TRANSMISSION

Go to Split View

GEARBOX TRANSMISSION

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 109342 *Qty: 1 Ring nut $1.05
Location: 2 Prev | Next Part: 125500 *Qty: 1 Ring nut Superseded
Location: 3 Prev | Next Part: 126850 *Qty: 1 Driving Gear - Not for C7 - C8 and US $683.33
Location: 4 Prev | Next Part: 112981 *Qty: 1 Bearing $240.24
Location: 5 Prev | Next Part: 11061076 *Qty: 1 Seeger gear $1.74
Location: 6 Prev | Next Part: 119722 *Qty: 1 Intermediate gear - Not C7 -C8 and US Unavailable
Location: 6 Prev | Next Part: 126066 *Qty: 1 Intermediate gear -For C7 -C8 and US $1,237.55
Location: 7 Prev | Next Part: 105142 *Qty: 2 Roller bearing $51.49
Location: 8 Prev | Next Part: 105143 *Qty: 2 Axial roller bearing $29.25
Location: 9 Prev | Next Part: 128332 *Qty: 1 Driven gear - For C7 - C8 and US $990.49
Location: 9 Prev | Next Part: 126863 *Qty: 1 Driven gear -Not for C7 - C8 and US $625.46
Location: 10 Prev | Next Part: 126234 *Qty: 1 Bearing $568.17
Location: 11 Prev | Next Part: 126861 *Qty: 1 Seeger ring $1.02
Location: 12 Prev | Next Part: 126853 *Qty: 1 Ring nut $40.00
Location: 13 Prev | Next Part: 126859 *Qty: 1 Spacer $11.58
Location: 14 Prev | Next Part: 105134 *Qty: 1 Spacer for bearing $136.21
Location: 15 Prev | Next Part: 105138 *Qty: 1 Stop ring $22.36
Location: 16 Prev | Next Part: 11061076 *Qty: 1 Seeger ring $1.74
Location: 17 Prev | Next Part: 109336 *Qty: 1 Oil recovery pipe $70.30
Location: 18 Prev | Next Part: 108655 *Qty: 1 Bearing for mainshaft $456.97
Location: 19 Prev | Next Part: 127120 *Qty: 1 Cover $523.07
Location: 20 Prev | Next Part: 14326150 *Qty: 1 Plug $0.90
Location: 21 Prev | Next Part: 10269450 *Qty: 1 Plug $29.92
Location: 22 Prev | Next Part: 10275001 *Qty: 1 Plug Superseded
Location: 23 Prev | Next Part: 10279560 *Qty: 1 Gasket Superseded
Location: 24 Prev | Next Part: 11194071 *Qty: 10 Washer $0.90
Location: 25 Prev | Next Part: 16100811 *Qty: 10 Nut Superseded

* Quantity shown indicates the number of pieces used in the diagram.
