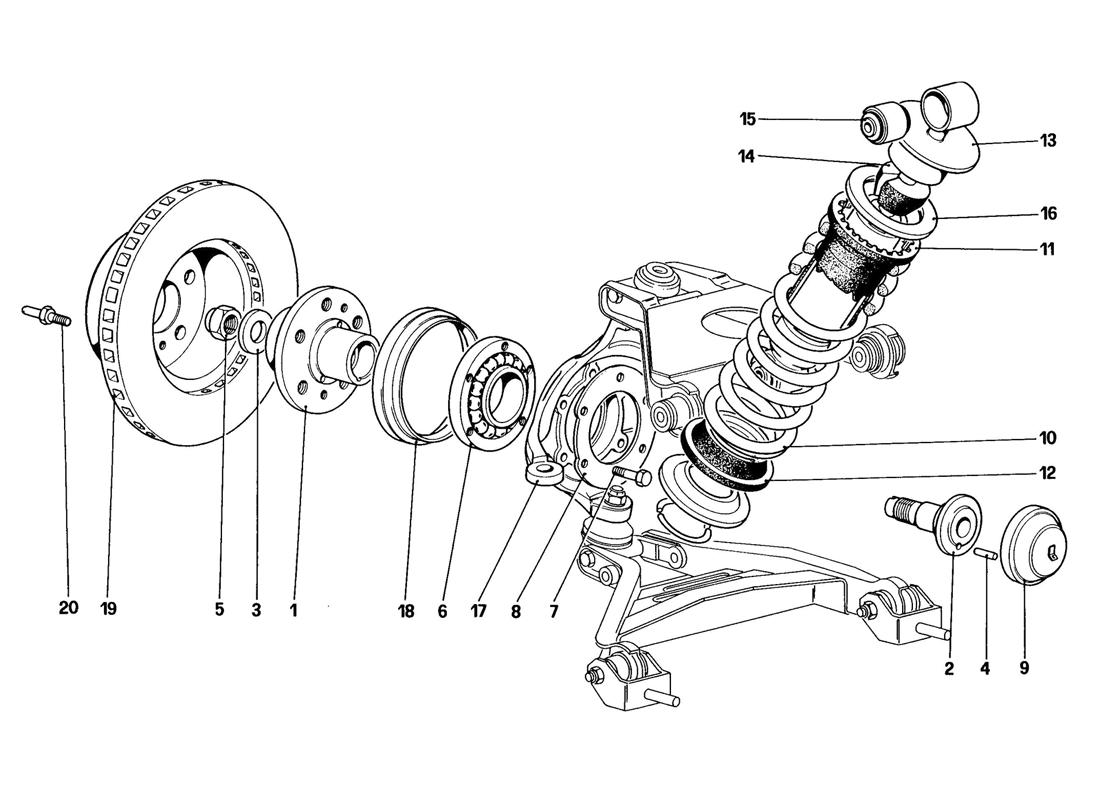

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625)

Go to Split View

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 125672 *Qty: 2 Front wheel hub $793.45
Location: 2 Prev | Next Part: 124465 *Qty: 2 Stay bolt for bearing $839.78
Location: 4 Prev | Next Part: 13909870 *Qty: 2 Pin $0.90
Location: 5 Prev | Next Part: 124642 *Qty: 2 Nut $30.90
Location: 6 Prev | Next Part: 112799 *Qty: 2 Bearing $1,009.66
Location: 7 Prev | Next Part: 14238731 *Qty: 12 Screw $0.90
Location: 8 Prev | Next Part: 118522 *Qty: 2 Washer $10.72
Location: 9 Prev | Next Part: 117171 *Qty: 2 Bearing cover $27.82
Location: 10 Prev | Next Part: 113516 *Qty: 2 Suspension spring - For US $432.65
Location: 10 Prev | Next Part: 133176 *Qty: 2 Suspension spring -Not for US Starting from $406.67
Location: 10 Prev | Next Part: 110784 *Qty: 2 Suspension spring - Not for US Until to $591.81
Location: 11 Prev | Next Part: 105223 *Qty: 2 Upper spacer Unavailable
Location: 12 Prev | Next Part: 103264 *Qty: 2 Lower spacer Unavailable
Location: 13 Prev | Next Part: 130939 *Qty: 2 Shock absorber - After exhaustion - Until to Superseded
Location: 13 Prev | Next Part: 133177 *Qty: 2 Shock absorber - Starting from Unavailable
Location: 13 Prev | Next Part: 128177 *Qty: 2 Shock absorber - Until exhaustion Superseded
Location: 14 Prev | Next Part: 104414 *Qty: 2 Pad - No spare Unavailable
Location: 15 Prev | Next Part: 100809 *Qty: 4 Estendblock $20.12
Location: 16 Prev | Next Part: 129435 *Qty: 2 Spacer - For US $59.84
Location: 16 Prev | Next Part: 128380 *Qty: 2 Spacer - Not for US - Only for spring no. 110784 $70.61
Location: 17 Prev | Next Part: 125712 *Qty: 1 Stud axle left $931.32
Location: 17 Prev | Next Part: 125711 *Qty: 1 Stud axle right Unavailable
Location: 18 Prev | Next Part: 125714 *Qty: 2 Bearing cover $27.33
Location: 19 Prev | Next Part: 125671 *Qty: 2 Brake disc, front $1,090.31
Location: 20 Prev | Next Part: 104370 *Qty: 4 Centering screw $0.90

* Quantity shown indicates the number of pieces used in the diagram.
