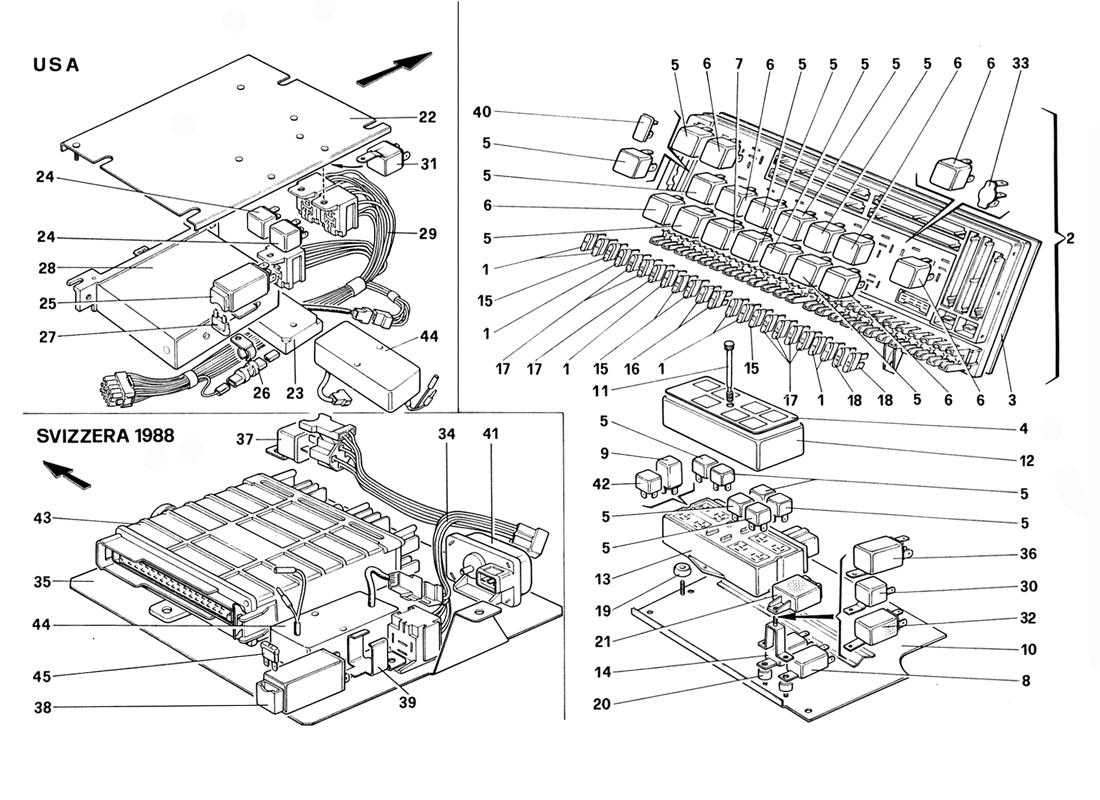

ELECTRICAL BOARDS

Go to Split View

ELECTRICAL BOARDS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 125242 *Qty: 7 15AfnseRHD $0.90
Location: 1 Prev | Next Part: 125242 *Qty: 8 15AfuseLHD $0.90
Location: 2 Prev | Next Part: 61804200 *Qty: 1 Electrical board complete LHD
Not for C8 (For RHD until car 68195)
Unavailable
Location: 2 Prev | Next Part: 62344200 *Qty: 1 Electrical board complete RHD
From car 68197
Unavailable
Location: 3 Prev | Next Part: 116055 *Qty: 1 Rear cover Unavailable
Location: 4 Prev | Next Part: 61804500 *Qty: 1 Plate USA and J MY 88 - AUS $13.36
Location: 4 Prev | Next Part: 62567300 *Qty: 1 Plate USA and J MY 89 $14.98
Location: 5 Prev | Next Part: 40130007 *Qty: 16 Relay - Not for C8 $31.15
Location: 5 Prev | Next Part: 40130007 *Qty: 15 Relay C8 $31.15
Location: 6 Prev | Next Part: 40130106 *Qty: 6 Relay C8 $23.47
Location: 6 Prev | Next Part: 40130106 *Qty: 7 Relay- Not for C8 $23.47
Location: 7 Prev | Next Part: 40283905 *Qty: 1 Relay $20.88
Location: 8 Prev | Next Part: 61827800 *Qty: 1 Timer for interior lights $314.82
Location: 9 Prev | Next Part: 61048000 *Qty: 1 Flasher for direction lights
From car 64127 - Not for US - Underneath the dashboard
$67.00
Location: 9 Prev | Next Part: 61814700 *Qty: 1 Flasher for direction lights - US
Behind the footrest
$40.20
Location: 9 Prev | Next Part: 61651800 *Qty: 1 Flasher for direction lights - US
Underneath the dash board
$102.05
Location: 9 Prev | Next Part: 61111200 *Qty: 1 Flascher for direction lights - Until car 64125 - Not for US - Behind the footrest Superseded
Location: 10 Prev | Next Part: 61831400 *Qty: 1 Passenger footrest GTB - RHD $64.53
Location: 10 Prev | Next Part: 61820100 *Qty: 1 Passenger footrest GTB - LHD $66.36
Location: 10 Prev | Next Part: 61821800 *Qty: 1 Passenger footrest GTS - LHD Unavailable
Location: 10 Prev | Next Part: 61848100 *Qty: 1 Passenger footrest GTS - RHD $49.78
Location: 11 Prev | Next Part: 116138 *Qty: 1 Screw $6.78
Location: 12 Prev | Next Part: 127081 *Qty: 1 Cover $49.07
Location: 13 Prev | Next Part: 61804400 *Qty: 1 Secondary electric board with
items 5-9-4-11-12
$279.32
Location: 14 Prev | Next Part: 61827900 *Qty: 1 Windshield wiper relay $48.52
Location: 15 Prev | Next Part: 125240 *Qty: 4 7, 5 A fuse $0.90
Location: 16 Prev | Next Part: 125241 *Qty: 2 10 A fuse $0.90
Location: 17 Prev | Next Part: 125243 *Qty: 7 20 A fuse - For RHD quantity 8 $0.90
Location: 18 Prev | Next Part: 126031 *Qty: 2 25 A fuse $0.90
Location: 19 Prev | Next Part: 61876200 *Qty: 2 Spacer for RHD $2.36
Location: 19 Prev | Next Part: 61825600 *Qty: 2 Spacer for LHD $1.92
Location: 20 Prev | Next Part: 61876200 *Qty: 2 Spacer for RHD $2.36
Location: 21 Prev | Next Part: 61830700 *Qty: 1 Seat belt control unit
For US - SA - J - Not for A87
Unavailable
Location: 22 Prev | Next Part: 62356300 *Qty: 1 Plate for ECU C7
For US - SA - J - AUS from car 76529
$88.10
Location: 22 Prev | Next Part: 61809200 *Qty: 1 Plate for ECU
US - J - SA - AUS - Until car 76529
$65.93
Location: 23 Prev | Next Part: 61402500 *Qty: 1 Cataiityc computer control unit
US - J until car 76515
$766.86
Location: 24 Prev | Next Part: 40130106 *Qty: 2 RELAY FOR OXYGEN SENSOR - US - J $23.47
Location: 25 Prev | Next Part: 61766200 *Qty: 1 Overprotection relay with fuse $140.00
Location: 26 Prev | Next Part: 121776 *Qty: 2 Diode for oxygen sensor and control
Microswitch for injection ECU - US
$11.94
Location: 27 Prev | Next Part: 125241 *Qty: 1 Fuse 10 A US $0.90
Location: 28 Prev | Next Part: 127479 *Qty: 1 Electronic control unit US $958.81
Location: 29 Prev | Next Part: 61864900 *Qty: 1 Cables US - J $75.49
Location: 30 Prev | Next Part: 61914500 *Qty: 1 Control relay for brake warning light AUS $22.29
Location: 31 Prev | Next Part: 62347600 *Qty: 1 Injector control relay
C7 until car
$41.17
Location: 31 Prev | Next Part: 62374200 *Qty: 1 Injector control relay - Not for C8
C7 from car
$81.12
Location: 32 Prev | Next Part: 131486 *Qty: 1 Buzzer for lower oil pressure and exhaust hight temperature C7 $67.33
Location: 33 Prev | Next Part: 115459 *Qty: 1 Bridge RHD - Only from car 68197 $30.14
Location: 34 Prev | Next Part: 62423800 *Qty: 1 Cabes C8 $81.84
Location: 35 Prev | Next Part: 62424000 *Qty: 1 Plate C8 $89.98
Location: 36 Prev | Next Part: 62370600 *Qty: 1 Tachimetric relay for fuel pump C8 $116.18
Location: 37 Prev | Next Part: 62424100 *Qty: 1 Relay for cut-off valve C8 $161.02
Location: 38 Prev | Next Part: 61766200 *Qty: 1 Relay protection electrical system C8 $140.00
Location: 39 Prev | Next Part: 62349700 *Qty: 1 Bracket C8 $15.91
Location: 40 Prev | Next Part: 61936600 *Qty: 1 Bridge C8 $22.98
Location: 41 Prev | Next Part: 134808 *Qty: 1 Barometric valve C8 $116.04
Location: 42 Prev | Next Part: 62567200 *Qty: 1 Control relay for ABS system
USA and J MY 89
Unavailable
Location: 43 Prev | Next Part: 134153 *Qty: 1 Electronic control unit C8 $1,714.27
Location: 44 Prev | Next Part: 62347000 *Qty: 1 Catalytic converter control unit
C7 - C8 - For J and US from car 76529
$533.23
Location: 45 Prev | Next Part: 125241 *Qty: 1 Fuse 10 A C8 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
