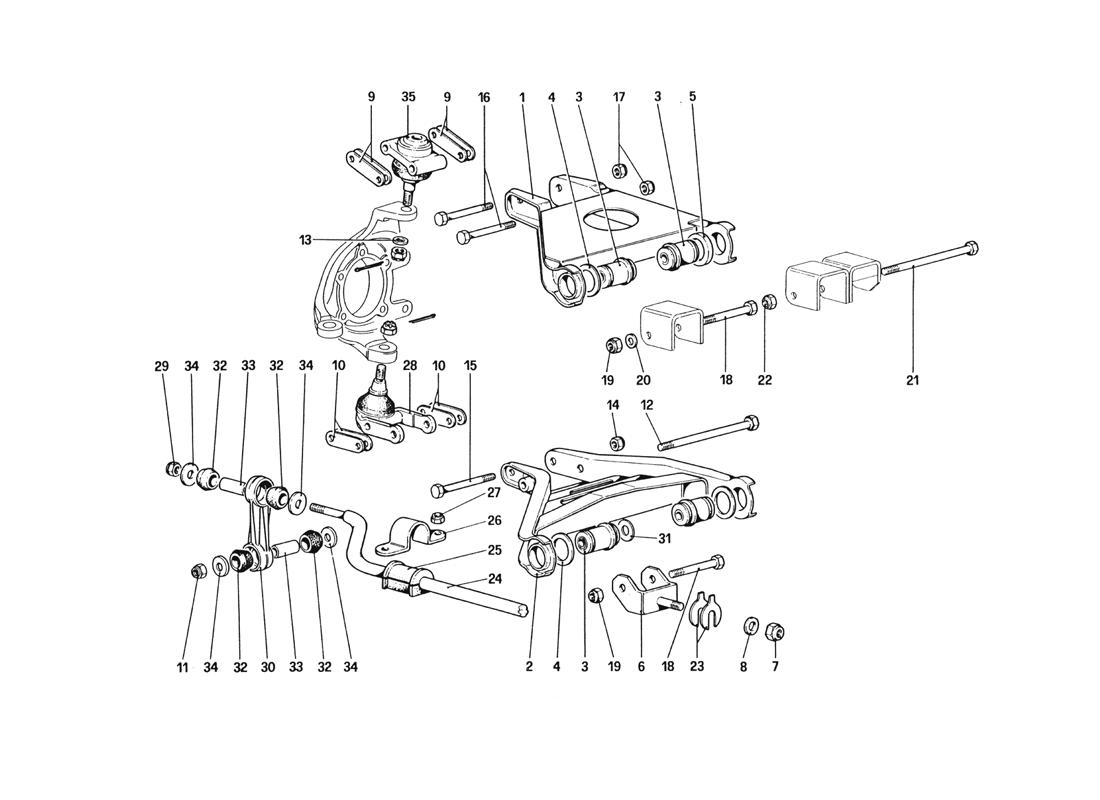

FRONT SUSPENSION - WISHBONES

FRONT SUSPENSION - WISHBONES

Location Part # Quantity* Description Price Add To Cart
1 104392 1 Upper lever, right $460.24
1 104393 1 Upper lever, left $1,225.47
2 104401 1 Lower lever, right $2,435.51
3 104398 8 Flandblock for lever Superseded
4 104399 6 Spacer washer Unavailable
5 104400 2 Spacer for rear upper wishbones $28.36
6 127636 4 Lower fork Superseded
7 12575821 4 Nut Superseded
8 101041 4 Washer Unavailable
9 103256 8 Upper adjusting plate $6.62
10 101022 8 Lower adjusting plate $1.87
11 16105121 2 Nut Superseded
12 105344 2 Bolt $71.01
13 101445 2 Washer Unavailable
14 12574521 2 Nut $1.16
15 15971621 2 Bolt Unavailable
16 15971421 4 Bolt $16.54
17 12574521 4 Nut $1.16
18 121693 6 Bolt $136.72
19 16105121 6 Nut Superseded
20 106426 2 Washer for upper wishbone $4.32
21 105901 2 Bolt $30.57
22 16105121 2 Nut Superseded
23 107418 8 Ditto thickness 1,5 mm. Superseded
23 107420 8 Ditto thickness 2,5 mm. Superseded
23 107419 8 Ditto thickness 2 mm. Superseded
23 107422 8 Ditto thickness 3,5 mm. Superseded
23 107025 8 Shim for lower fork, thickness 1 mm.
Possible fitting
Superseded
23 107421 8 Ditto thickness 3 mm. Superseded
24 125111 1 Stabilizer rod $887.76
25 108746 2 Pad for rod $51.93
26 106577 2 Pad for rod $39.77
27 12575621 4 Nut Superseded
28 114462 2 Lower ball joint Superseded
29 16105121 2 Nut Superseded
30 127809 2 Rod link $265.22
31 105434 2 Shim
Possible fitting
$36.52
32 100984 8 Grommet for stabilizer rod Unavailable
33 108998 4 Spacer tube $90.62
34 117730 8 Washer Unavailable
35 116280 2 Upper ball joint $212.42

* Quantity shown indicates the number of pieces used in the diagram.
