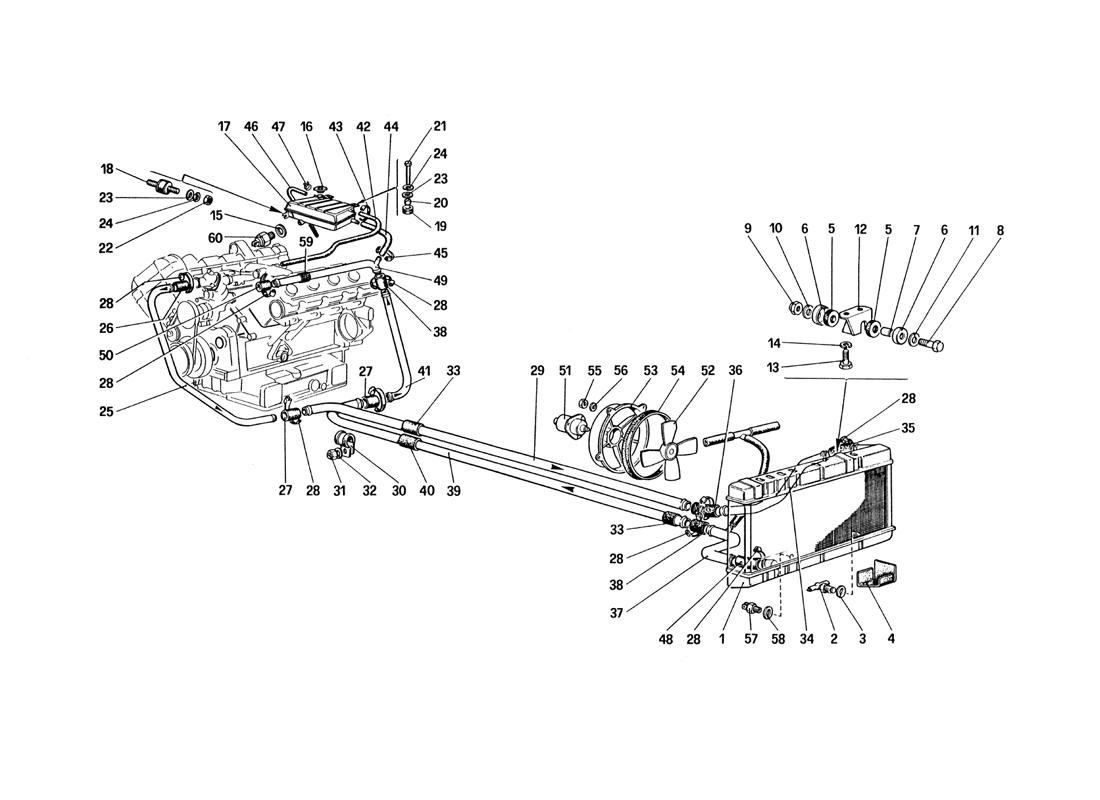

COOLING SYSTEM

Back to 328 (1985) components

Location	Part #	Quantity*	Description	Price	Add To Cart
1	126879	1	Water radiator		Unavailable
2	101488	1	Water drain cock	$252.07
4	117994	2	Rubber shim, vibration damping	$60.29
5	107978	4	Pad	$15.35
6	107979	4	Cup	$14.90
7	107980	2	Spacer	$8.20
8	16043821	2	Screw		Superseded
9	16104411	2	Nut	$2.33
10	112761	2	Washer		Superseded
11	108292	2	Washer		Unavailable
12	117996	2	Bracket	$3,172.46
13	16043021	4	Screw		Unavailable
14	11194071	4	Washer		Unavailable
15	10260060	1	Gasket For U.S. Version	$1.58
16	101499	1	Plug for tank		Superseded
17	120273	1	Expansion tank Not for U.S. Version	$1,133.47
17	121647	1	Expansion tank For U.S. Version		Unavailable
18	102947	1	Vibration - damping support	$20.69
19	103549	2	Vibration - damping bushing	$1.81
20	103550	2	Spacer	$8.49
21	10902421	2	Screw		Superseded
22	15896211	1	Nut		Superseded
23	12643701	3	Washer		Superseded
24	106850	3	Washer		Superseded
25	108042	1	Rear pipe, R.H. For RHD use no. 108053		Unavailable
26	122817	1	Sleeve For RHD use no. 102957	$43.08
27	105190	2	Sleeve For RHD use no. 102957	$32.95
28	12177090	18	Clamp		Superseded
29	108081	1	Central pipe delivery to radiator For RHD use no. 108082		Unavailable
30	107002	1	Clamp	$36.52
31	12574211	1	Nut		Superseded
32	12643701	1	Washer		Superseded
33	105385	2	Vibration damping sleeve	$56.07
34	127393	1	Front pipe delivery to radiator For RHD use no. 109503	$376.10
35	122819	1	Sleeve For RHD use no. 102956	$160.33
36	102957	1	Sleeve		Superseded
37	118636	1	Return pipe, front		Unavailable
38	102957	2	Sleeve		Superseded
39	108082	1	Return pipe, central For RHD use no. 129069	$177.64
40	107465	1	Vibration damping sleeve		Unavailable
41	118795	1	Rear pipe, L.H. For RHD use no. 120497		Unavailable
42	122218	1	Breather pipe, engine to water reservoir	$49.41
43	12179490	2	Clamp		Superseded
44	122221	1	Feeding pipe, expansion tank to engine		Unavailable
45	12179910	2	Clamp		Unavailable
46	126291	1	Breather pipe	$18.05
47	13423379	1	Clamp		Unavailable
48	122819	1	Sleeve For RHD use no. 102957	$160.33
49	115136	1	Pipe between heads		Unavailable
50	121259	1	Sleeve		Superseded
51	117546	2	Electric fan motor		Unavailable
52	122953	2	Fan		Unavailable
53	60870300	2	Conveyor		Unavailable
54	126883	2	Gasket	$27.67
55	12574211	8	Nut		Superseded
56	12643701	8	Washer		Superseded
57	101507	1	Thermocontact		Superseded
58	101508	1	Gasket	$1.66
59	105385	1	Sleeve	$56.07
60	121777	1	Thermostat For U.S. Version	$303.04

* Quantity shown indicates the number of pieces used in the diagram.
