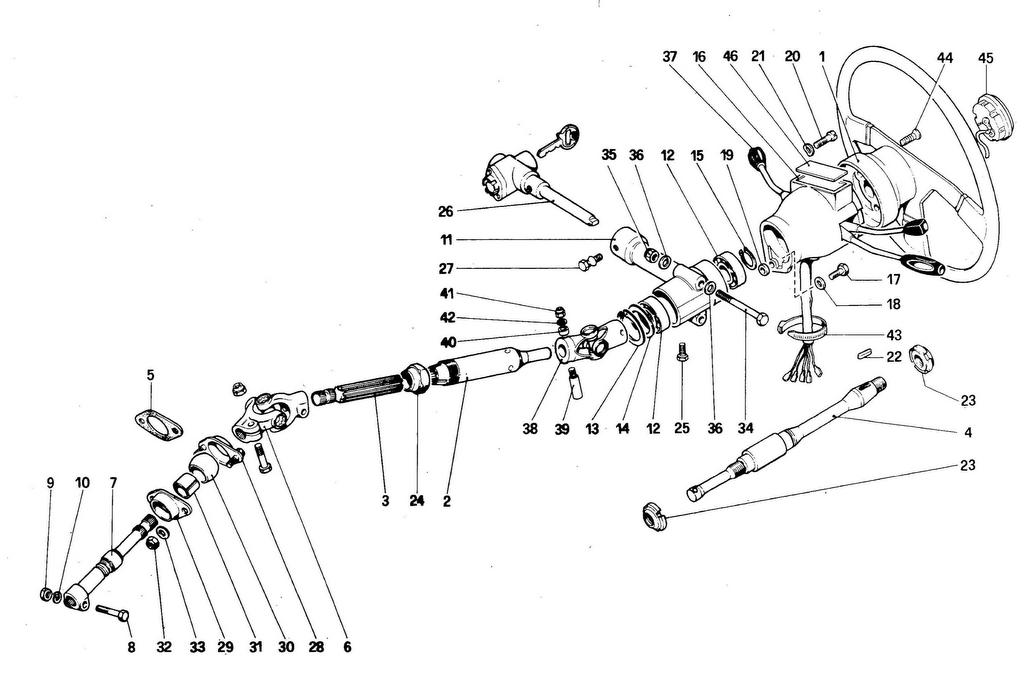

STEERING COLUMN

STEERING COLUMN

Location Part # Quantity* Description Price Add To Cart
1 119023 1 Steering wheel Superseded
2 108735 1 Guide tube On exhaustion. use 117379 $457.44
3 108737 1 Steering shaft $220.46
4 108413 1 Upper shaft $497.17
5 109173 1 Gasket Unavailable
6 108362 1 Universal joint Option n. 103343 Superseded
7 107308 1 Pinion extension Unavailable
8 103371 1 Bolt Superseded
9 103373 1 Nut Superseded
10 103372 1 Washer Superseded
11 106611 1 Support. steering column and anti-theft device $947.22
12 101104 2 Bearing $16.46
13 11060576 1 Seeger ring $1.81
14 101101 1 Shim. thickness 0.5 mm. (possible fitting) $1.68
- 107488 1 Shim. thickness 0.4 mm. $3.13
- 107489 1 Shim. thickness 0.3 mm. $12.89
- 107490 1 Shim. thickness 0.2 mm. $12.89
15 11067376 1 Seeger ring $1.68
16 120429 1 Commutator housing Unavailable
17 10902221 1 Bolt Unavailable
18 12601271 1 Washer Superseded
19 12639701 1 Spacer Unavailable
20 10389901 2 Screw Unavailable
21 12544171 2 Spring washer Superseded
22 101106 1 Key $7.39
23 106610 2 Ring nut $84.65
24 106870 1 Adjust nut $16.42
25 10979421 1 Bolt Unavailable
26 106614 1 Anti-theft device Superseded
- 100285 1 Anti-theft device protection Superseded
27 106615 1 Bolt Superseded
28 105667 1 Flange for upper ball joint $34.67
29 103292 1 Flange for lower ball joint $14.11
30 103297 1 Ball joint $61.37
31 103370 1 Bushing Unavailable
32 16104121 2 Nut Superseded
33 10519621 2 Washer $0.90
34 103576 2 Bolt $20.26
35 16104421 2 Nut Superseded
36 10519621 4 Washer $0.90
37 118303 1 Mainswitch Unavailable
38 112572 1 Universal joint Unavailable
39 112573 2 Pin $55.05
40 112571 2 Spacer $9.60
41 12574221 2 Nut Superseded
42 10519401 2 Washer Superseded
43 103755 1 Strap Unavailable
44 111189 6 Screw $6.19
45 101071 1 Horn button and retainer Superseded
46 122105 1 Car identification plate For GTS no. 122110 $52.60

* Quantity shown indicates the number of pieces used in the diagram.
