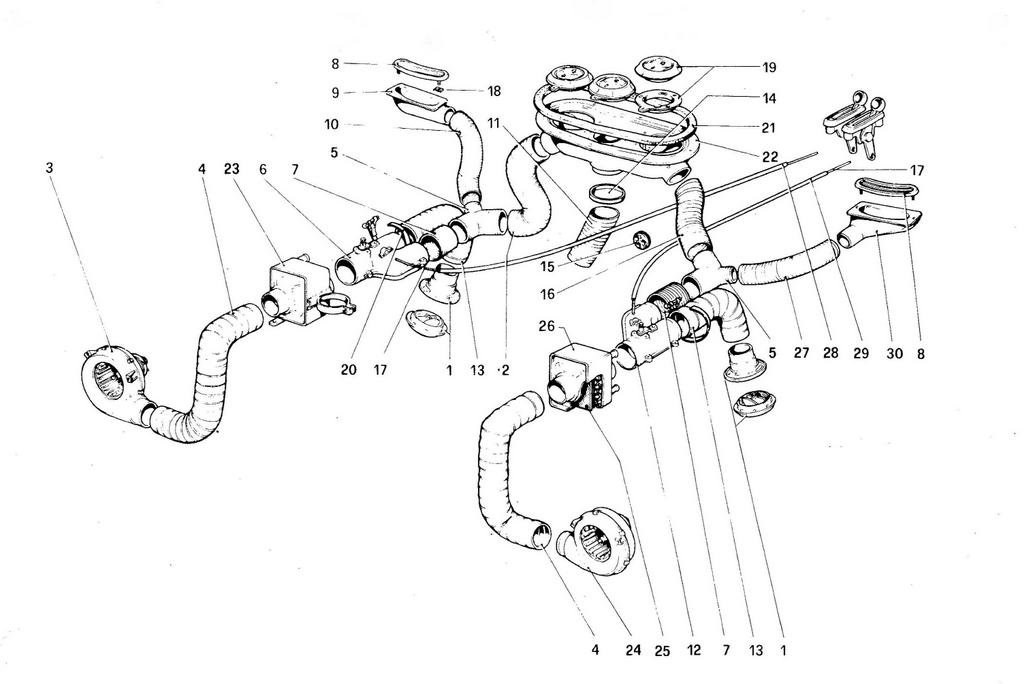

HEATING SYSTEM

Go to Split View

HEATING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60054400 *Qty: 2 Air outlet lower $156.83
Location: 2 Prev | Next Part: 60123700 *Qty: 1 Air duct $80.01
Location: 3 Prev | Next Part: 60658600 *Qty: 1 Electric fan R.H. $378.63
Location: 4 Prev | Next Part: 60034808 *Qty: 2 Air duct $200.45
Location: 5 Prev | Next Part: 60153608 *Qty: 2 3 way union $19.41
Location: 6 Prev | Next Part: 60135001 *Qty: 1 Switch R.H. $343.56
Location: 7 Prev | Next Part: 60124500 *Qty: 2 A $114.14
Location: 8 Prev | Next Part: 60044401 *Qty: 2 Air outlet side Unavailable
Location: 9 Prev | Next Part: 60055407 *Qty: 1 Conveyor for R.H. outlet $95.23
Location: 10 Prev | Next Part: 60123809 *Qty: 1 A $47.40
Location: 11 Prev | Next Part: 60124005 *Qty: 1 A.C. duct Unavailable
Location: 12 Prev | Next Part: 60135100 *Qty: 1 Switch L.H. Unavailable
Location: 13 Prev | Next Part: 60034907 *Qty: 2 Air duct $168.25
Location: 14 Prev | Next Part: 20143202 *Qty: 1 Plug Superseded
Location: 15 Prev | Next Part: 60714200 *Qty: 1 Fair lead $11.08
Location: 16 Prev | Next Part: 60035003 *Qty: 1 Air duct $64.90
Location: 17 Prev | Next Part: 40138800 *Qty: 2 Cable defroster control Superseded
Location: 18 Prev | Next Part: 60048501 *Qty: 8 Clip $1.02
Location: 19 Prev | Next Part: 60054301 *Qty: 3 Air outlet Unavailable
Location: 20 Prev | Next Part: 10291490 *Qty: 2 Clamp Unavailable
Location: 21 Prev | Next Part: 50091503 *Qty: 1 Gasket $17.05
Location: 22 Prev | Next Part: 20142709 *Qty: 1 Air d iff user $1,520.41
Location: 23 Prev | Next Part: 60151305 *Qty: 1 Heather R.H. Unavailable
Location: 24 Prev | Next Part: 60658700 *Qty: 1 Electric fan L.H. $378.63
Location: 25 Prev | Next Part: 60151909 *Qty: 2 Wire gauze inside heater Superseded
Location: 26 Prev | Next Part: 60208907 *Qty: 1 Heater L.H. $705.52
Location: 27 Prev | Next Part: 60123908 *Qty: 1 A Unavailable
Location: 28 Prev | Next Part: 60125901 *Qty: 1 Cable sheath R.H. defroster Unavailable
Location: 29 Prev | Next Part: 60126008 *Qty: 1 Cable sheath L.H. defroster Superseded
Location: 30 Prev | Next Part: 60055506 *Qty: 1 Conveyor for L.H. outlet $104.06

* Quantity shown indicates the number of pieces used in the diagram.
