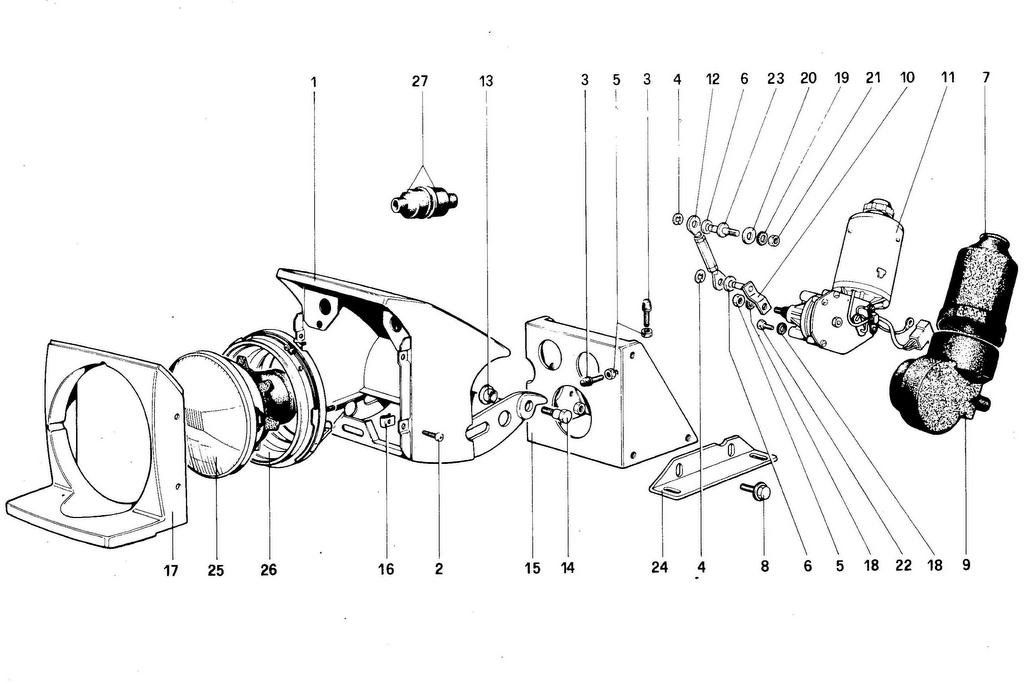

HEADLIGHTS LIFTING DEVICE

Go to Split View

HEADLIGHTS LIFTING DEVICE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60570600 *Qty: 1 Housing R.H. headlamp $1,646.09
Location: - Prev | Next Part: 60570700 *Qty: 1 Housing L.H. headlamp Unavailable
Location: 2 Prev | Next Part: 60644600 *Qty: 8 Screw $1.59
Location: 3 Prev | Next Part: 50087709 *Qty: 6 Rod $12.93
Location: 4 Prev | Next Part: 11087976 *Qty: 4 Seeger ring Superseded
Location: 5 Prev | Next Part: 15896211 *Qty: 8 Nut Superseded
Location: 6 Prev | Next Part: 30152607 *Qty: 4 Washer Superseded
Location: 7 Prev | Next Part: 60331402 *Qty: 2 Upper guard motor $33.54
Location: 8 Prev | Next Part: 13842471 *Qty: 16 Screw Superseded
Location: 9 Prev | Next Part: 60331204 *Qty: 1 Lower guard R.H. motor $21.36
Location: - Prev | Next Part: 60331303 *Qty: 1 Lower guard L.H. motor $22.02
Location: 10 Prev | Next Part: 40213902 *Qty: 2 Connecting rod 28 mm. (untill 31-3-84) $28.99
Location: 11 Prev | Next Part: 60727500 *Qty: 1 Headlamp lifting motor R.H. Superseded
Location: - Prev | Next Part: 60727600 *Qty: 1 Headlamp lifting motor L.H. Superseded
Location: 12 Prev | Next Part: 60172400 *Qty: 2 Connecting (until 31-3-84) Unavailable
Location: - Prev | Next Part: 61326200 *Qty: 2 Connecting (from 1-4-84) Unavailable
Location: 13 Prev | Next Part: 50070507 *Qty: 4 Bushing $6.16
Location: 14 Prev | Next Part: 50070606 *Qty: 4 Fulcrum pin $5.68
Location: 15 Prev | Next Part: 60648000 *Qty: 1 R.H. support $100.34
Location: - Prev | Next Part: 60648100 *Qty: 1 L.H. support $109.62
Location: 16 Prev | Next Part: 40136707 *Qty: 8 Clip $1.61
Location: 17 Prev | Next Part: 60570800 *Qty: 1 Covering R.H. Unavailable
Location: - Prev | Next Part: 60570900 *Qty: 1 Covering L.H. Unavailable
Location: 18 Prev | Next Part: 12605371 *Qty: 8 Washer $0.90
Location: 19 Prev | Next Part: 10615770 *Qty: 2 Washer Superseded
Location: 20 Prev | Next Part: 12638601 *Qty: 2 Washer $0.90
Location: 21 Prev | Next Part: 12164721 *Qty: 2 Nut Superseded
Location: 22 Prev | Next Part: 10902121 *Qty: 6 Screw Superseded
Location: 23 Prev | Next Part: 60098803 *Qty: 2 Pin (until 31-3-84) $21.43
Location: - Prev | Next Part: 61325900 *Qty: 2 Pin (from 1-4-84) $26.88
Location: 24 Prev | Next Part: 60581800 *Qty: 2 Bracket R.H. $28.57
Location: - Prev | Next Part: 60581900 *Qty: 2 Bracket L.H. $13.46
Location: 25 Prev | Next Part: 61610400 *Qty: 2 Sealed beam $162.32
Location: 26 Prev | Next Part: 60154804 *Qty: 2 Housing sealed beam $172.39
Location: 27 Prev | Next Part: 60645100 *Qty: 4 Cap $1.41

* Quantity shown indicates the number of pieces used in the diagram.
