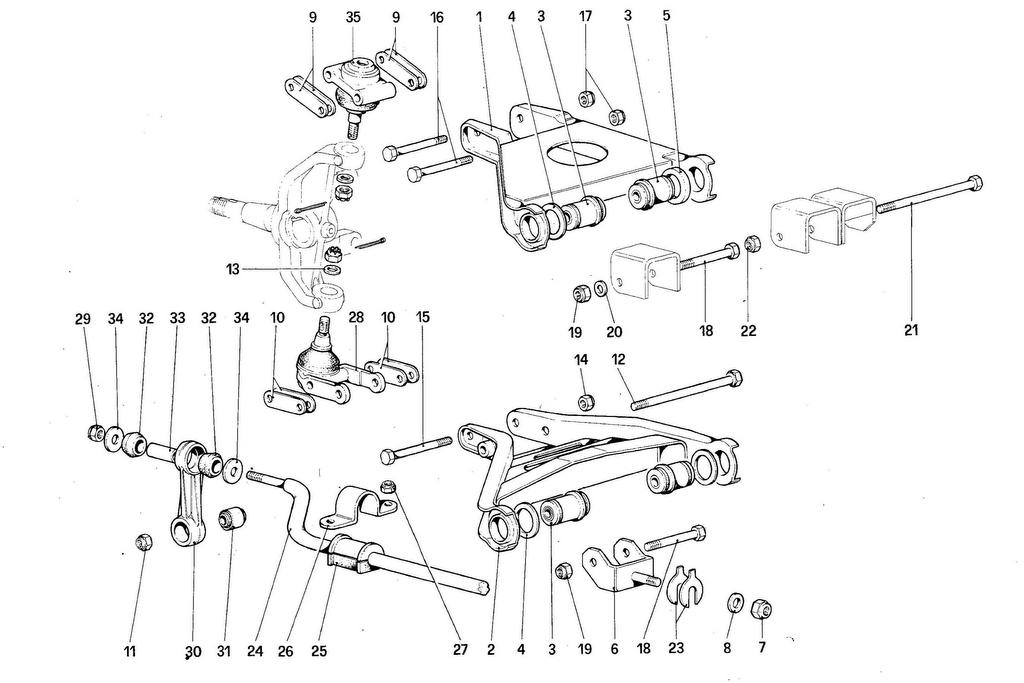

FRONT SUSPENSION – WISHBONES

Location Part # Quantity* Description Price Add To Cart
1 104392 1 Upper lever.right $499.38
- 104393 1 Upper lever. left $1,225.47
2 104401 1 Lower lever. right $3,212.88
- 104402 1 Lower lever. left $1,580.54
3 104398 8 Flandblock for lever Superseded
4 104399 6 Spacer washer Unavailable
5 104400 2 Spacer for rear upper wishbones $32.56
6 104409 4 Lower fork Unavailable
7 12575821 4 Nut Superseded
8 101041 4 Washer Unavailable
9 103256 8 Upper adjusting plate $7.63
10 101022 8 Lower adjusting plate $1.97
11 16105121 2 Nut Superseded
12 107886 2 Bolt $62.99
13 101445 2 Washer Unavailable
14 12574521 2 Nut $1.22
15 15971621 2 Bolt Unavailable
16 15971421 4 Bolt $16.54
17 12574521 4 Nut $1.22
18 106419 6 Bolt $50.22
19 16105121 6 Nut Superseded
20 106426 2 Washer for upper wishbone $2.29
21 105901 2 Bolt $35.08
22 16105121 2 Nut Superseded
23 107025 8 Shim for lower fork. thickness 1 mm. (possible fitting) Superseded
- 107418 8 Ditto thickness 1.5 mm. Superseded
- 107419 8 Ditto thickness 2 mm. Superseded
- 107420 8 Ditto thickness 2.5 mm. Superseded
- 107421 8 Ditto thickness 3 mm. Superseded
- 107422 8 Ditto thickness 3.25 mm. Superseded
24 105053 1 Stabilizer rod Superseded
25 108746 2 Pad for rod $59.56
26 106577 2 Retainer for stabilizer rod $45.61
27 12575621 4 Nut Superseded
28 114462 2 Lower ball joint Superseded
29 16105121 2 Nut Superseded
30 108431 2 Rod link $173.08
31 100773 2 Silentblok for link $52.80
32 100984 4 Grommet for stabilizer rod Unavailable
33 108998 2 Spacer tube $103.94
34 105334 4 Washer $52.82
35 116280 2 Upper ball joint $413.75

* Quantity shown indicates the number of pieces used in the diagram.
