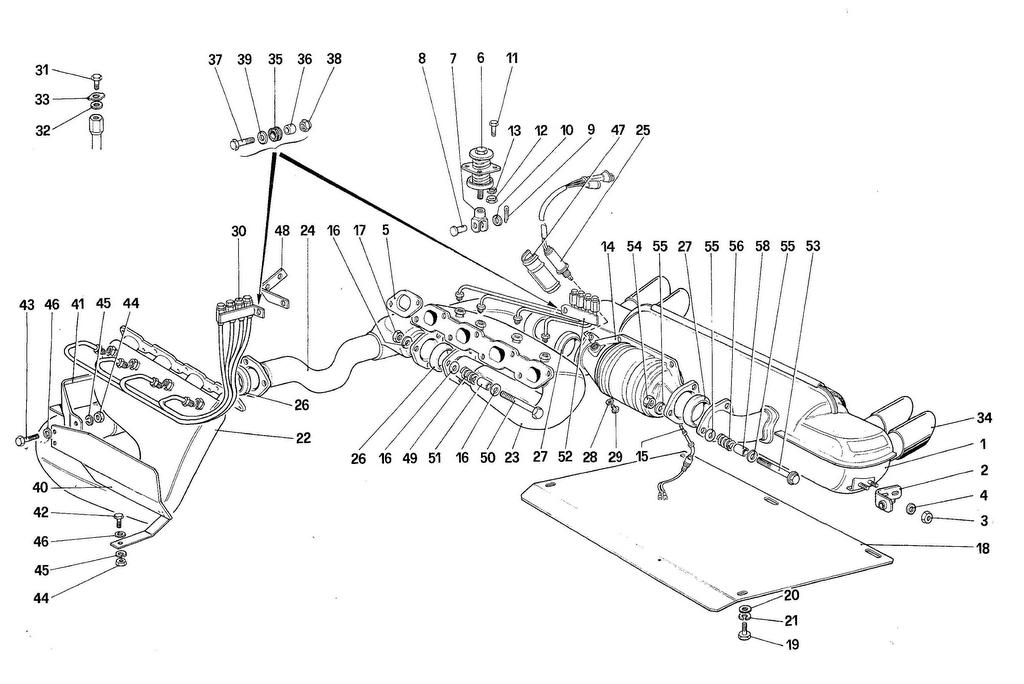

EXHAUST SYSTEM

Location	Part #	Quantity*	Description	Price	Add To Cart
1	121383	1	Exhaust silencer	$3,931.10
2	108290	2	Bracket		Unavailable
3	114748	4	Nut	$21.29
4	10519601	1	Washer		Superseded
5	111532	8	Gasket		Superseded
6	106052	2	Buffer for supporting silencer	$206.55
7	108257	2	Fork on buffer		Unavailable
8	10033411	2	Pin		Superseded
9	10796401	2	Split pin		Superseded
10	103167	2	Washer	$4.85
11	10977621	8	Screw fixing buffer to chassis		Superseded
12	15896411	8	Nut		Superseded
13	106849	8	Washer		Superseded
14	121385	1	Catalytic converter		Unavailable
15	61402400	1	Thermocouple for exhaust unit	$1,042.95
16	112761	18	Washer		Superseded
17	114748	6	Selflocking nut	$21.29
18	114745	1	Protection plate	$485.66
19	10902021	5	Screw		Superseded
20	12643701	5	Washer		Superseded
21	106850	5	Spring washer		Superseded
22	118821	1	Front exhaust manifold	$2,201.92
23	121381	1	Rear exhaust manifold	$2,229.00
24	121382	1	Extension pipe from manifold to converter	$1,041.04
25	121515	1	Oxygen sensor	$501.35
26	103377	2	Gasket		Superseded
27	121426	1	Gasket		Superseded
28	10298460	1	Gasket	$0.90
29	110860	1	Plug	$19.77
30	118886	1	Analyzing pipes. front		Unavailable
31	103748	8	Plug	$0.90
32	103749	8	Gasket	$0.90
33	103587	8	Plate	$12.65
34	114743	4	Terminal		Unavailable
35	103549	2	Anti - vibration rubber	$1.81
36	103550	2	Bush for rubber	$8.49
37	10902621	2	Screw for pipes		Superseded
38	12574211	2	Self locking nut		Superseded
39	106744	2	Washer	$12.63
40	115577	1	Protection	$2.25
41	115552	1	Protection	$165.59
42	10902321	2	Screw		Superseded
43	10902121	2	Screw		Superseded
44	15896211	4	Nut		Superseded
45	106850	4	Washer		Superseded
46	12643701	6	Washer		Superseded
47	121833	1	Protection for oxygen sensor	$81.20
48	118999	1	Bracket	$14.80
49	111743	6	Spring. fixing flanges	$16.46
50	115675	6	Screw		Superseded
51	114749	6	Spacer for spring	$5.16
52	121780	1	Analyzing pipes. rear		Unavailable
53	121676	6	Screw		Superseded
54	121677	6	Nut	$7.31
55	121678	18	Washer	$12.83
56	121674	6	Spring	$24.30
57	121675	6	Spacer	$29.94

* Quantity shown indicates the number of pieces used in the diagram.
