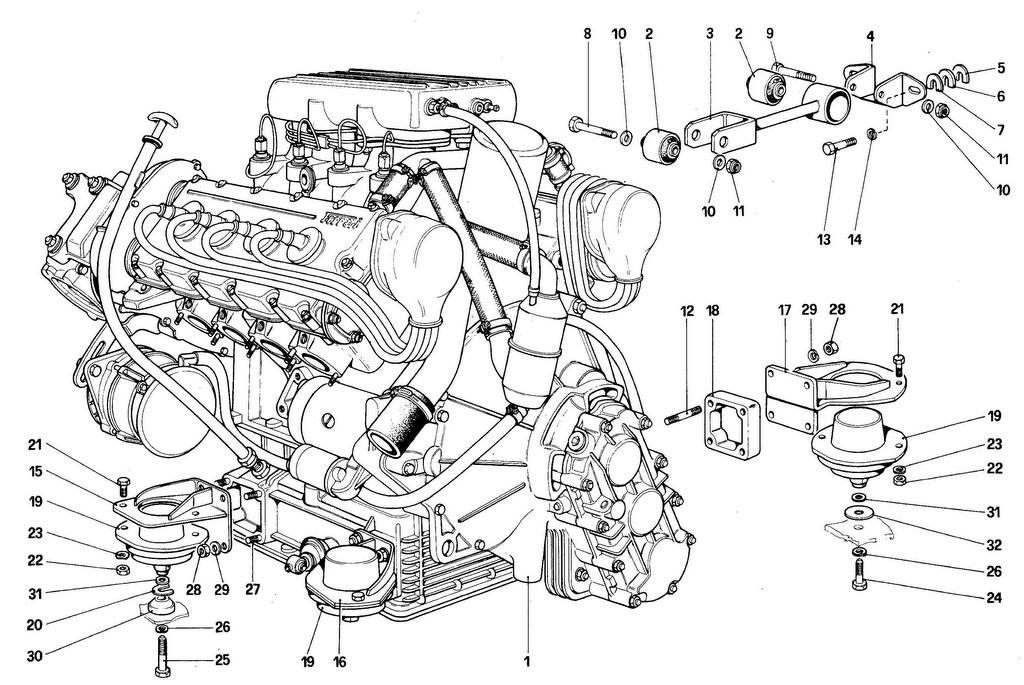

ENGINE – GEARBOX AND SUPPORTS

ENGINE – GEARBOX AND SUPPORTS

Location Part # Quantity* Description Price Add To Cart
1 - 1 Propelling unit with gearbox and differential - See table A for spare assembly units Unavailable
2 106418 2 Buffer for link $112.99
3 117973 1 Reaction tie rod For support no 106469 $102.29
3 119250 1 Reaction tie rod For support no 119246 Superseded
4 106469 1 Tie rod support $21.50
5 106470 0 Shim 1 mm. (possible mounting) $12.99
6 106471 0 Shim 2 mm. (possible mounting) $13.54
7 106472 2 Shim $16.69
8 15541321 1 Bolt $32.97
9 15541321 1 Bolt $32.97
10 13550521 2 Washer Unavailable
11 16105111 2 Nut Superseded
12 13450021 8 Rear nut $0.90
13 13830521 2 Bolt $1.24
14 12638621 2 Washer Unavailable
15 107529 1 Front right support $102.07
- 107528 1 Rear right support Unavailable
16 115712 1 Front left support $129.19
17 115713 1 Rear left support $129.19
18 107530 2 Spacer for rear supports $337.81
19 106034 4 Front mounting pad Superseded
20 106029 0 Shim (possible mounting) $9.24
21 16043421 8 Bolt Superseded
22 16100811 8 Nut Superseded
23 106852 8 Washer Superseded
24 106527 2 Screw for rear pads $6.17
25 105799 2 Screw for front pads Unavailable
26 106854 4 Washer Superseded
27 13449321 8 Front stud Unavailable
28 12164711 16 Nut Superseded
29 106853 16 Washer Superseded
30 120977 2 Spacer for front pads $18.22
31 12646901 4 Shim Superseded
32 111794 2 Spacer for rear pads $42.85

* Quantity shown indicates the number of pieces used in the diagram.
