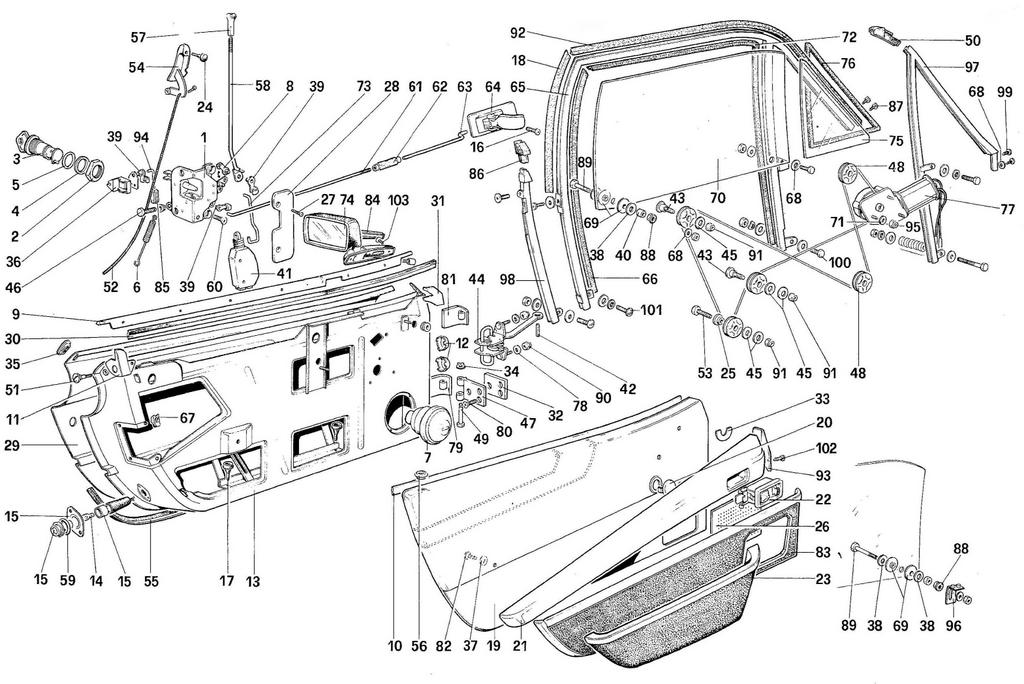

DOORS

Go to Split View

DOORS

Location Part # Quantity* Description Price Add To Cart
66 60302205 2 Channel rear glass GTB Unavailable
- 60343308 2 Channel real glass GTS Unavailable
67 20037008 6 Clip. door lock $13.68
68 12643701 10 Washer Superseded
69 50086909 8 Bushing $13.20
70 60263803 1 Mobile glass. R.H. GTB Unavailable
- 60162409 1 Mobile glass. R.H. GTS Unavailable
- 60263902 1 Mobile glass. L.H. GTB Unavailable
- 60162508 1 Mobile glass. L.H. GTS Unavailable
71 12638101 6 Washer Superseded
72 60302106 2 Channel. front glass GTB Unavailable
- 60343407 2 Channel. front glass GTS Superseded
73 61328600 1 Safety rod lower R.H. $3.63
- 61328500 1 Safety rod lower L.H. $3.19
74 61095600 1 R.H. rear mirror with gasket and cover Unavailable
- 60812600 1 L.H. rear mirror with gasket and cover Unavailable
75 60264405 1 Fixed glass. R.H. $146.10
- 60264504 1 Fixed glass. L.H. Unavailable
76 60322500 2 Weatherstrip. fixed glass GTB Unavailable
- 60519100 2 Weatherstrip. fixed glass GTS Unavailable
77 60030509 2 Window regulator $557.09
78 60711900 4 Washer Unavailable
79 50031608 2 Mobile hinge. lower $94.64
80 50206408 12 Screw Unavailable
81 60265402 1 Mobile hinge. upper R.H. door Superseded
- 60265501 1 Mobile hinge. upper L.H. door Superseded
82 13274818 2 Screw for armrest Unavailable
83 61433500 1 Lower covering. R.H. panel $900.93
- 61433600 1 Lower covering. L.H. panel $900.93
84 60991600 2 Cover $87.62
85 40133902 2 Terminal for rod $74.54
86 60266004 1 R.H. terminal GTS $65.98
- 60266103 1 L.H. terminal GTS $21.70
87 20286704 4 Screw. fixing front frame GTB Unavailable
88 13832101 4 Nut. glass to cable Unavailable
89 60657800 4 Screw. glass to cable Unavailable
90 12574111 4 Nut Superseded
91 12575411 10 Nut Superseded
92 60278504 2 Gasket GTB Unavailable
- 60343100 2 Gasket GTS Superseded
93 61269600 1 Moulding. R.H. armrest $61.37
- 61269700 1 Moulding. L.H. armrest $61.37
94 60709000 2 Rod Unavailable
95 12577811 6 Nut Superseded
96 60441300 2 Bracket GTS Unavailable
97 60292000 1 Front glass frame. R.H. GTS Unavailable
- 60292109 1 Front glass frame. L.H. GTS Unavailable
98 60292208 1 Rear glass frame. R.H. GTS $218.55
- 60292307 1 Rear glass frame. L.H. GTS $223.12
99 60815200 4 Screw. fixing front frame GTS Unavailable
100 10902621 2 Screw Superseded
101 20030003 2 Screw Unavailable
102 17685206 4 Screw Unavailable
103 13297611 4 Screw Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
